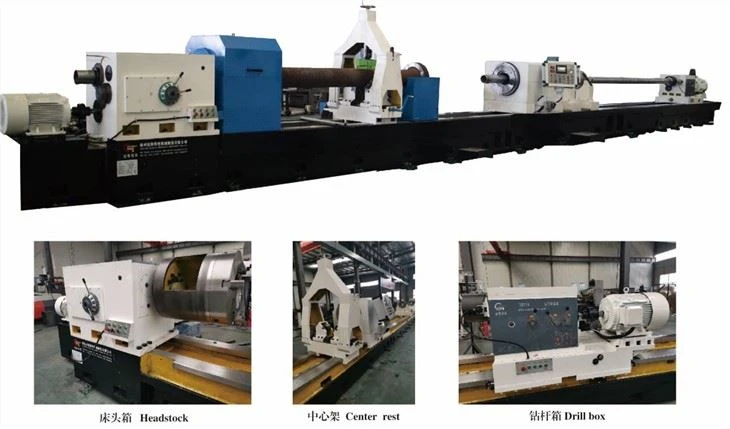

CNC BTA drilling machine The machine is special equipment for machining deep cylindrical hole of workpieces.It can be perfectly suited for drilling and boring through holes,blind and step holes in workpiece Product detail Description: Cutter tool rotating : The servo main motor drives the......

Send Inquiry

CNC BTA drilling machine
The machine is special equipment for machining deep cylindrical hole of workpieces.It can be perfectly suited for drilling and boring through holes,blind and step holes in workpiece

Product detail Description:
Cutter tool rotating : The servo main motor drives the spindle to rotate through the gear reducer, and the cutter tool speed is stepless. A motor drives a spindle rotation, the cutter tool speed is stepless and adjustable, the speed range is 60~600rpm.
Cutter tool infeeding: The servo motor drives the rack and pinion structure through the reducer, the cutter tool infeed amount is stepless and adjustable, and the cutter tool infeed range is 5~100mm/min.
Safety guard: the main machine adopts simple safety guard
CNC BTA drilling machine详情页751_副本  CNC BTA drilling machine详情页753_副本

CNC system: The machine adopts SIEMENS-828D CNC system. Its’function is to control cutter tool rotary speed, the cutter tool infeed, the tightening and loosening action of the oil pressure head spindle, cutting oil supply, automatic loading and unloading.

Cooling system: The cooling system is composed of an oil tank, an automatic chip conveyor, an oil chiller, a drum type paper bag filter, Automatic centrifuge oil shedding machine, and 4 groups of pump groups.

CNC BTA drilling machine详情页1224_副本  CNC BTA drilling machine详情页1226_副本

Machine Main Technical Data:

Items

T2116x3500mm

Max.diameter for boring

 160mm

Range for drilling diameter:

Φ30-Φ70mm

Boring diameter range

30-160mm

Max. Depth for drilling and boring

3500mm

Chuck diameter for clamping work piece

50mm -200mm

Height from spindle center to machine bed

250mm

Speed range for spindle

61-1250r/min

Infeed speed range(Stepless)

5-1000mm/min

Rapid travel speed for carriage

2m/min

Main motor power

15kW

Hydraulic pressure pump motor power

1.5kW

Carriage fast moving motor power

3kW

Infeeding motor power

3.7kW

Cooling pump motor power

5.5kw

Rated pressure for cooling system

2.5MPa

Flowing for cooling system

200 L/min

Rated working pressure for hydraulic system

6.3MPa

Machine dimension(LXWXH)

9800mmx2000mmx1600mm
