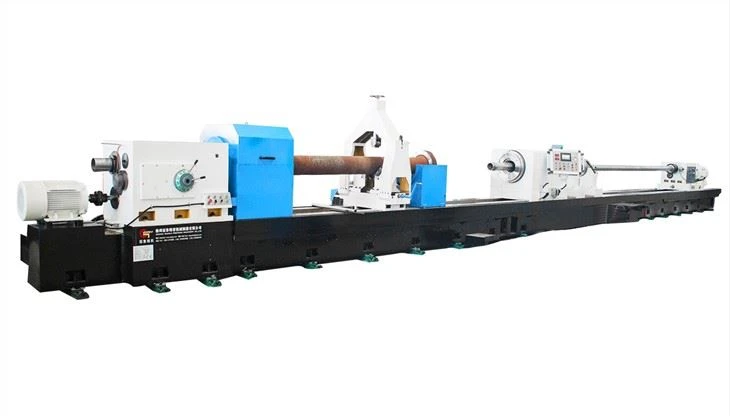

Heavy Duty BTA Drilling Machine

Heavy Duty BTA Drilling Machine

This machine is used for cylinder workpiece center hole drilling and boring process. It is stable and with good processing accuracy....

Send Inquiry

Heavy duty BTA Drilling Machine

This machine is used for cylinder workpiece center hole drilling and boring process. It is stable and with good processing accuracy.

Machine brief

Machine processing capability

Boring diameter range

50-500mm

Drilling diameter range

50mm-120mm

Trepanning diameter range

 Φ100~Φ250mm

Max. Hole Boring depth

6000mm

Max. Workpiece length

6000mm

Controller

Delta PLC

Machine brief:

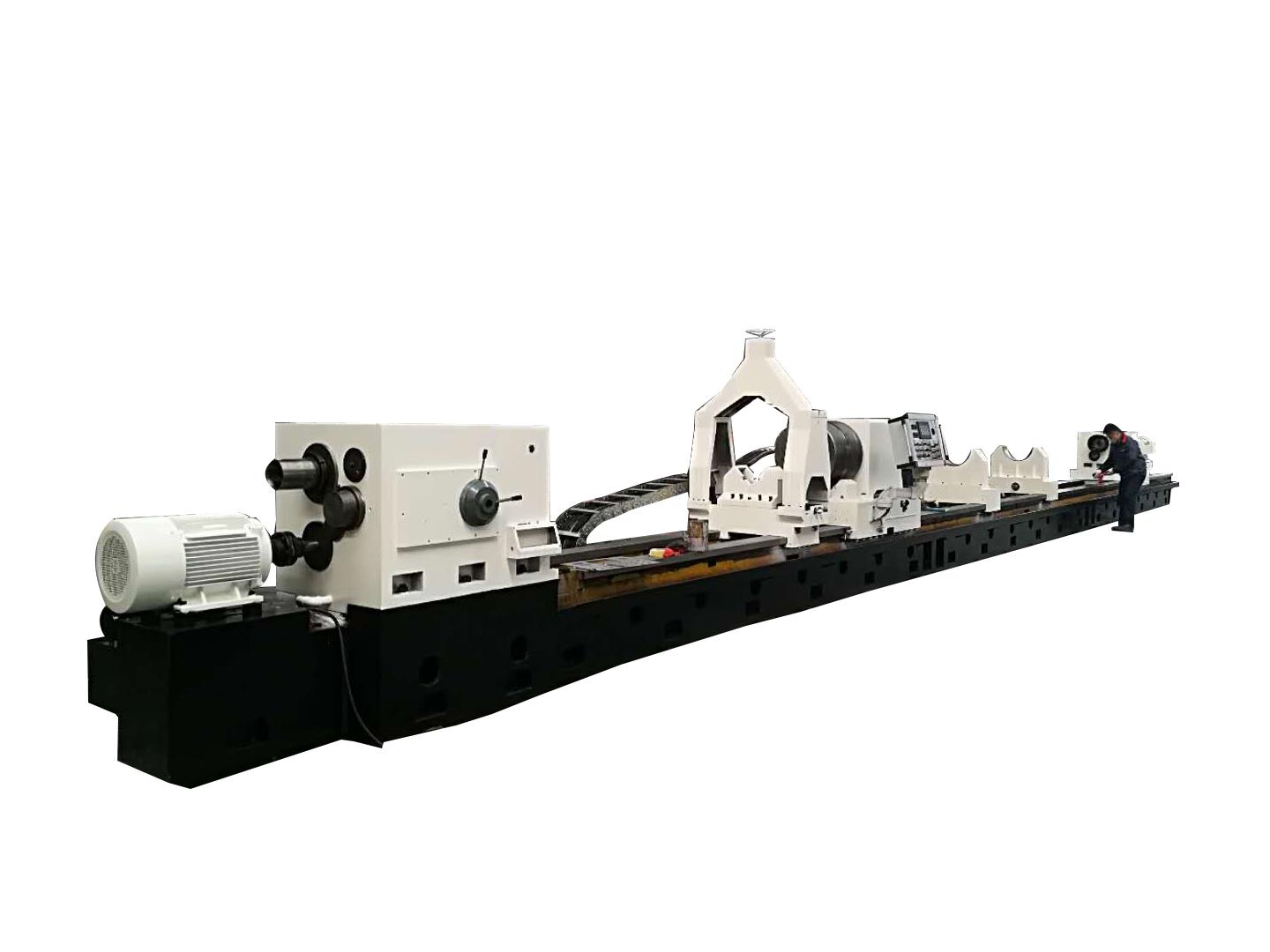

Machine application :The machine tool is specialized in processing cylindrical deep-hole workpiece equipment, machine bed is with good rigidity and accuracy. Equipped with 2 sets of adjustable roller center frame, it can also adapt to the machining of large workpiece's inner hole.The spindle speed range is wide, and the feed system is driven by AC servo motor, which can meet the needs of various deep hole processing technology.The tightening of oil pressure head and workpiec adopts servo tightening method.

Machine bed:The guide rail adopts double flat guide rail design, and the machine bed guide rail width is 800mm. The material adopts high quality cast iron HT300. Artificial aging treatment, medium frequency quenching treatment on the surface of guide rail, quenching depth 2-3 mm, quenching hardness HRC45-50. High precision and good abrasion resistance. Precision rack drive bracket is installed in the middle of the guide rail ,It is used for infeeding and rapid movement of the bracket.

Machine main tech parameters:

Items

Parameters

Remark

Working capacity

Drilling diameter range

Φ50~Φ120mm



Boring diameter range

Φ50~Φ500mm



Trepanning diameter range

Φ100~Φ250mm



Max. Boring depth

 6m



Roller center frame clamping diameter range

Φ100~Φ500mm



Main spindle

Center height

(spindle center to machine flat guide rail)

625mm



Spindle rotary speed range

 3.15~315r/min

21grades

Machine capability

Drill box

Rotary speed range

60~1000r/min

12 grades

Drill box motor

30KW



Spindle front end taper

140#



Carriage infeed speed range

5-1000mm/min

Stepless

Carriage rapid traverse rate

1m/min



Cutter tool infeed servo motor power

7.5kW



Oil pressure head servo motor power

7.5kW



Coolant system

Cooling pump motor power

7.5kw*3



Rated Pressure

2.5MPa



Flow

200/500/800L/min



Others

Machine totally weight

Roughly 33 T



Machine Max.Loading weight

 10T



Machine accuracy

Hole skewness/deviation tolerance

0.8mm/1000mm

Boring roughness

Ra0.8~3.2μm

Boring hole accuracy

IT8~IT9
