Deep Hole Honing Machine
2M2120 deep hole honing machine is suitable for cylindrical jobs honing and polish process, and also works for precision parts,after worked by the machine,the hole accuracy can be up to IT6~IT7,surface roughness can be up to Ra0.2-0.4μm.It adopts partial honing,the parts can be modified by processing the taper, ellipticity and local aperture error, the honing machine is an ideal device for high precision and high efficiency ,we adopts PLC control of Delta,running steady,easy to adjust the speed. It is easy to warranty the hole size accuracy and reduce labor intensity.

Product description:

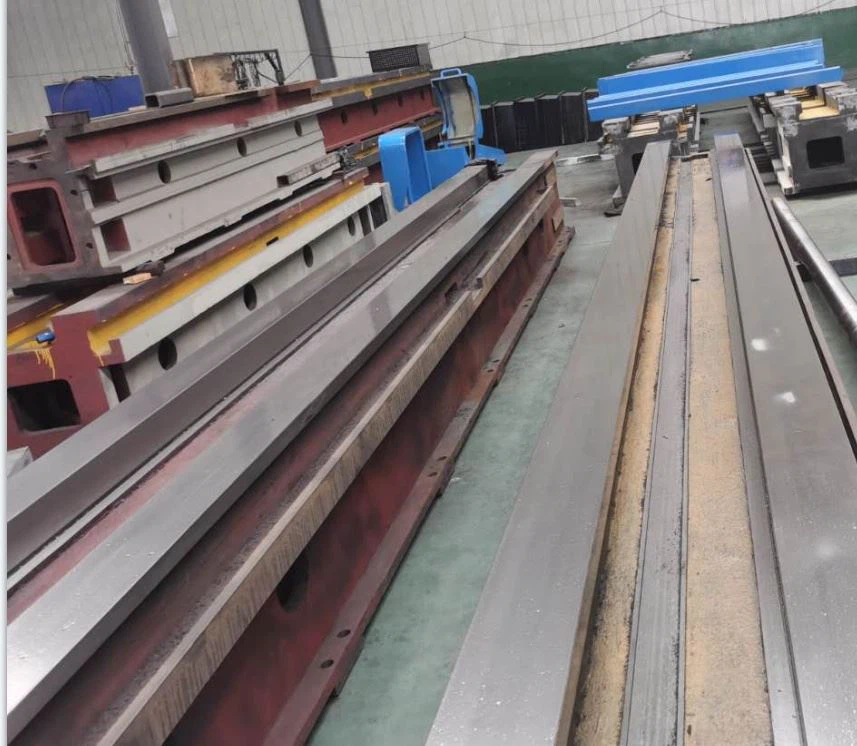

●Machine bade base: Round linear guide rail,driven by rack and pinion(Gear and rack drive system)
●Rack and pinion infeeding driven(stable and precise)

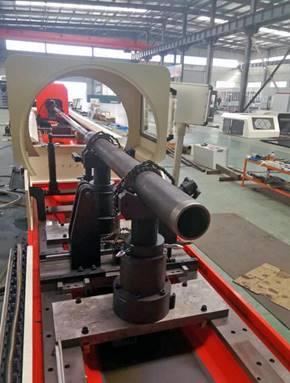

●Workpiece supporting rest and honing bar supporting rest

image004  image006

●Honing head:Honing head expansion under the control of servo motor

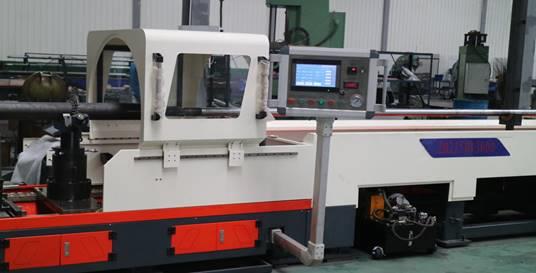

●PLC control system

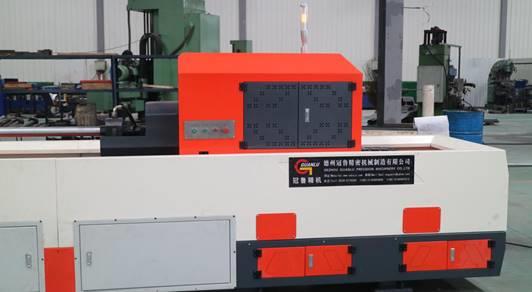

●Honing box

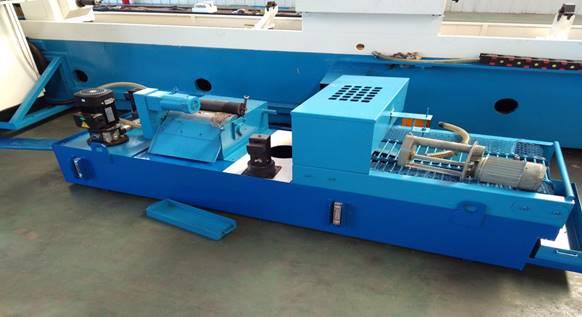

●Coolant system


Electric part:


Main Features:
1) The machine is equipped with Delta brand PLC, CNC system is optional.
2) Oil box and small parts of the panels are spray plastics treatment.(powder painting).
3) Equipped with oil retention in case of oil leakage to dirty the floor.
4) Finished surface roughness can be up to Ra0.2-Ra0.4μm .
5) Electric cabinet is under the machine bed , save  space for the user.

Product Parameters

Items

Parameters(Model 2M2120x6000mm)

Honing processing diameter range

40-200mm

Honing length

Max. 6000mm

Machine center height

350mm

Workpiece OD range

60-350mm

Main spindle speed range

25-250r/min

Honing box reciprocate speed range

3-20m/min, stepless

Honing box motor power

7.5W, inverter motor

Coolant pump flow

100L/min

Coolant tank volume

950L

Coolant pump motor power

1.5Kw

Reciprocate motor power

5.5Kw

Honing head expanding pump pressure

Max. 4 Mpa

Honing head expanding pump motor power

1.4Kw

Total power

17Kw
