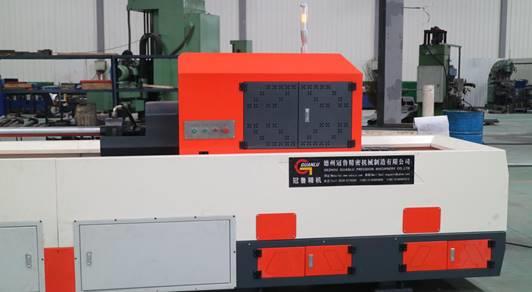

Horizontal Tube Honing Machine
This machine is specially for all kinds of cylinder shaped workpiece, after worked by this machine, the accuracy up to IT7, surface roughness up to Ra0.2-Ra0.4um. Deep hole honing diameter range is from 40mm to 200mm. The max. Honing length is: 2000mm.(This parameters is for Model 2M2120x2000mm honing machine)

Product description:
●Machine bade base: Round linear guide rail,driven by rack and pinion(Gear and rack drive system)
●Rack and pinion infeeding driven(stable and precise)

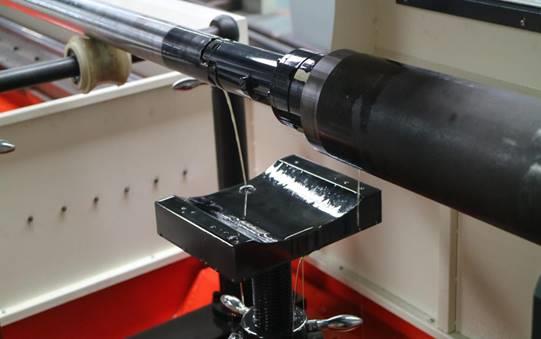

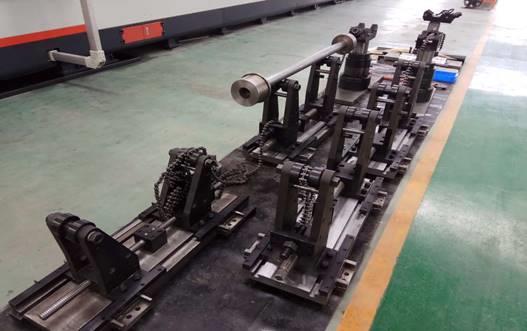

●Workpiece supporting rest and honing bar supporting rest


●Honing head:Honing head expansion under the control of servo motor

●PLC control system

●Honing box

●Coolant system

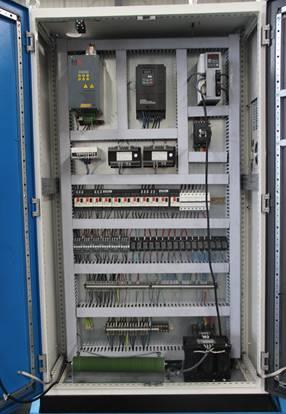

Electric part:The machine use PLC system control,  automatically control.

Product Parameters

Items

Parameters(Model2M2120x2000mm)

Honing processing diameter range

40-200mm

Honing length

Max. 2000mm

Machine center height

350mm

Workpiece OD range

60-350mm

Main spindle speed range

25-250 r/min

Honing box reciprocate speed range

3-20m/min, stepless

Honing box motor power

7.5W, inverter motor

Coolant pump flow

100L/min

Coolant tank volume

950L

Coolant pump motor power

1.5Kw

Reciprocate motor power

5.5Kw

Honing head expanding pump pressure

Max. 4 Mpa

Honing head expanding pump motor power

1.4Kw

Total power

17Kw
