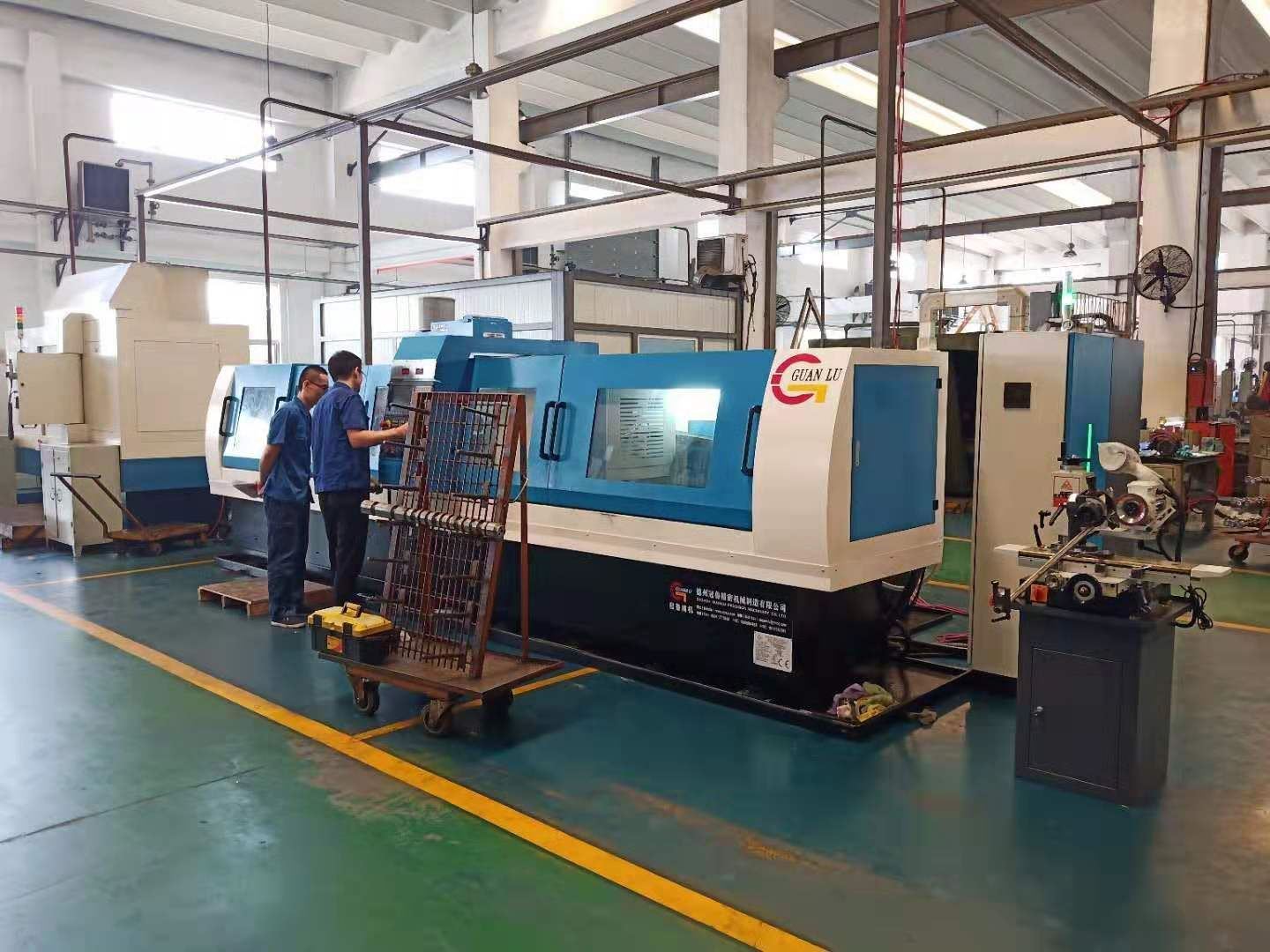

Multi spindle gun drilling machine
The machine adopts gun drilling method; It is with single/double/four spindle structure. It can process 1, 2 or 4 workpieces at the same time, and is suitable for machining long and thin shaft. When drilling,the tool and workpiece are rotating relatively, the cutting tool is infeeding.

Product detail Introduction
Headstock: It drives workpiece rotation, constant speed 120r/min; spindle can be axial movement under the control of hydraulic system, used for tightening or loosening the workpiece.
Cutter tool infeed: It adopts the structure : servo motor to drive the ball screw through elastic coupling , which the stepless speed regulation can be realized.
Workpiece clamping: the front end of headstock and guide frame spindle is assembled with cone disc.The hydraulic system controls the axial movement of the spindle of the headstock; By using the chamfering of the conical disc and the ends of the workpiece, the workpiece can be clamped and positioned automatically.

image001_副本

Machine mainly parameters:

Specification

Parameters

Notes

ZSK2101

ZSK2101×2

ZSK2101×4

Working capacity

Drilling diameter range

Φ2~Φ12mm

Φ2~Φ12mm

Φ2~Φ12mm



Max.drilling depth

1000mm

1000mm

1000mm



Max.workpiece length

1000mm

1000mm

1000mm



Workpiece OD range

Φ8~Φ40mm

Φ8~Φ40mm

Φ8~Φ40mm



Spindle quantity

1

2

4



Spindle space distance

-

140mm

140mm



Machine performance

Z axis

Infeed speed range

5~500mm/min

5~500mm/min

5~500mm/min

STEPLESS

Rapid traverse rate

3000mm/min

3000mm/min

3000mm/min



Infeed motor torque

7.5Nm

7.5Nm

10Nm



Drill box

Max.rotation speed

8000r/min

8000r/min

8000r/min

STEPLESS

Motor power

2.2KW

3.7KW

3.7KW×2

Servo spindle motor

Headstock

Rotation speed

120r/min

120r/min

120r/min



Motor power

1.5KW

1.5KW

1.5KW×2



Cooling system

Max. pressure

15MPa

15MPa

15MPa

Adjustable

Max.flow

50L/min

100L/min

150L/min

Adjustable

Filtering accuracy

5μm

5μm

5μm



Oil tank volume (roughly )

500L

1000L

1500L



Others

Machine total power(roughly)

20.5kw

25kw

42kw



Floor space(roughly)

4.8m×3.1m

4.8m×3.1m

4.8m×3.1m



Machine total weight(roughly)

6T

6T

6T



Max.hole length-diameter ratio

200:1

200:1

200:1




image003_副本
