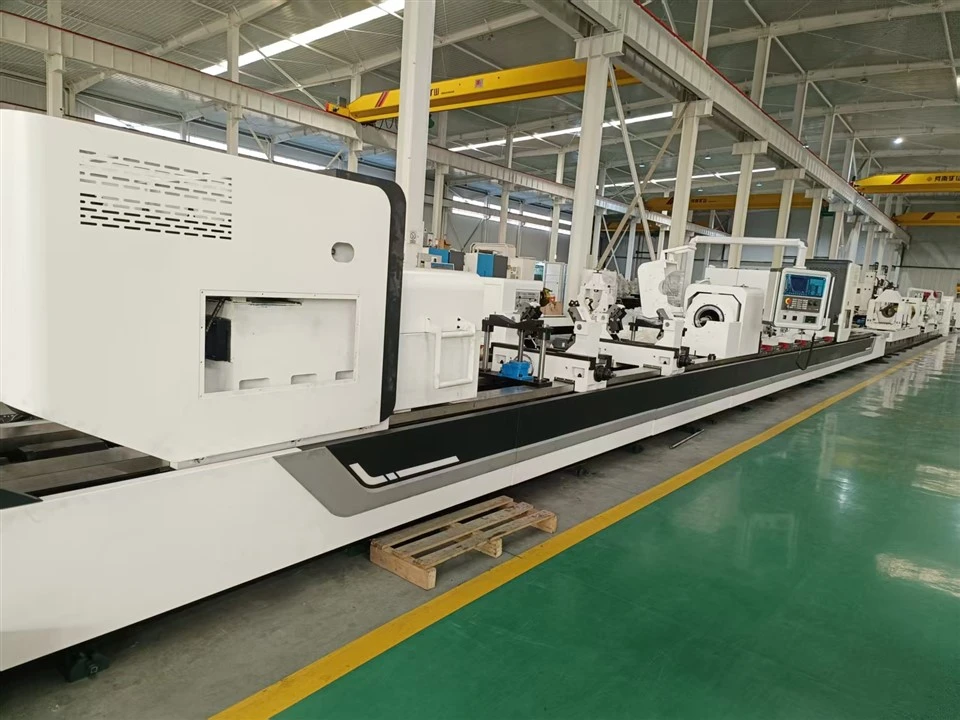

CNC Deep Hole Drilling And Slotting Machine

This CNC Deep Hole Drilling and slotting machine is an ideal machine for processing parts with deep hole.This machine integrates BTA drilling, Boring (Push boring /Pull boring) ,making straight slots, spiral slots and special-shaped cavity hole machining, is a machine specially designed for the combined processing.

Machine processing and chips removal methods (CNC Deep Hole Drilling and slotting machine):

There are three combinations of machining methods of this machine: ① Workpiece and cutting tool rotation in opposite directions , cutting tool feed ; ② Workpiece rotate , cutting tool fixed and feed ; ③ Workpiece fixed, cutting tool rotate and feed . The headstock rotary axis has C-axis indexing function.

Workpiece clamping method: left end of workpiece is clamped by chuck of headstock, and right end is tightened by the oil pressure head , center of workpiece is supported by center rest .

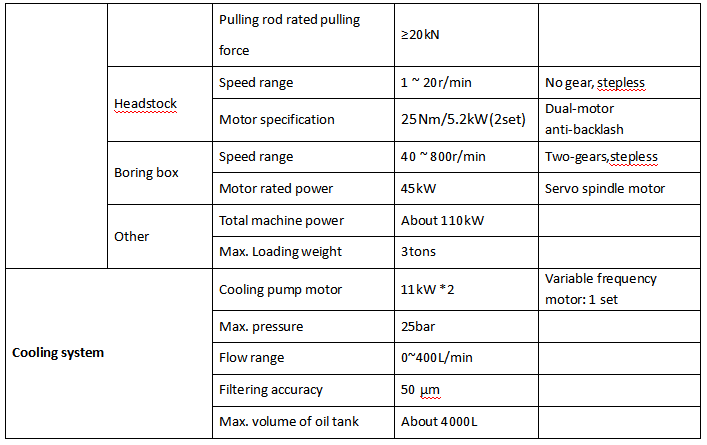

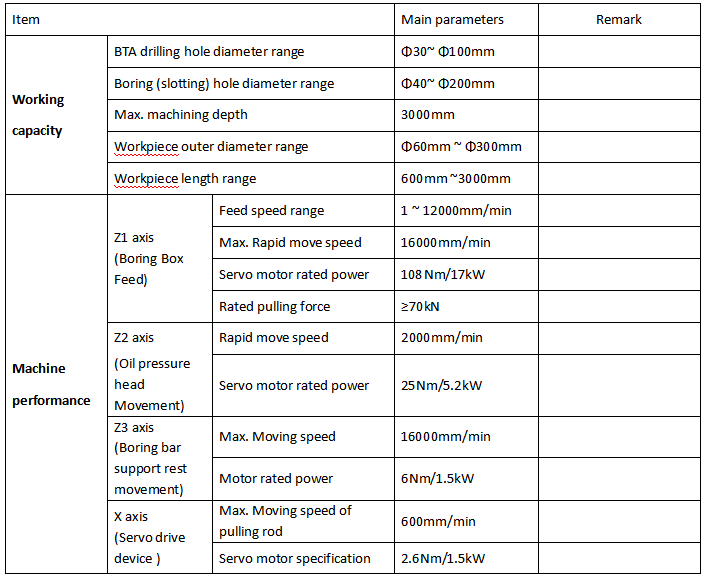

Technical parameters of CNC Deep Hole Drilling and slotting machine :

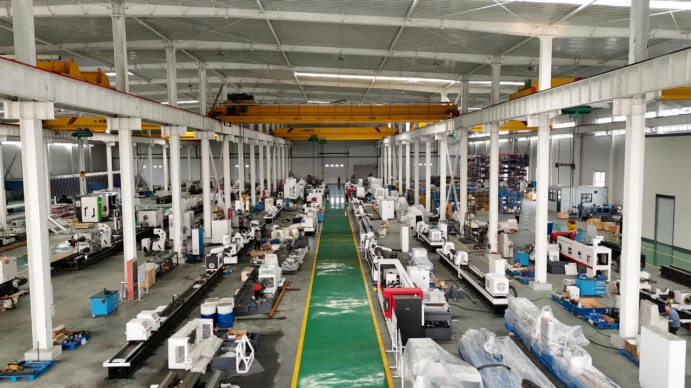

Factory photos:

If any request , feel free to contact us :
