Deep Drill Machine
Deep drill machine The machine is special equipment for machining deep cylindrical hole of workpieces(Drilling diameter range 30-200mm,which max.drilling depth can be 15 meters).It can be perfectly suited for drilling and boring through holes,blind and step holes in workpieces;Such as ,spindle...
Description

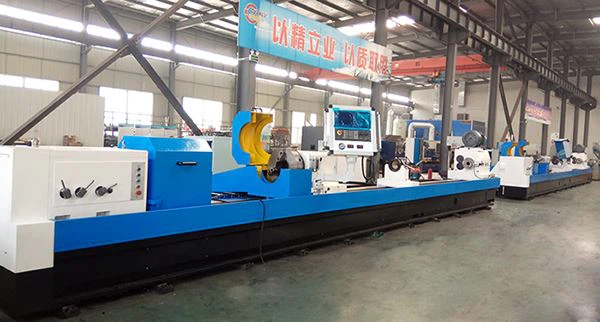

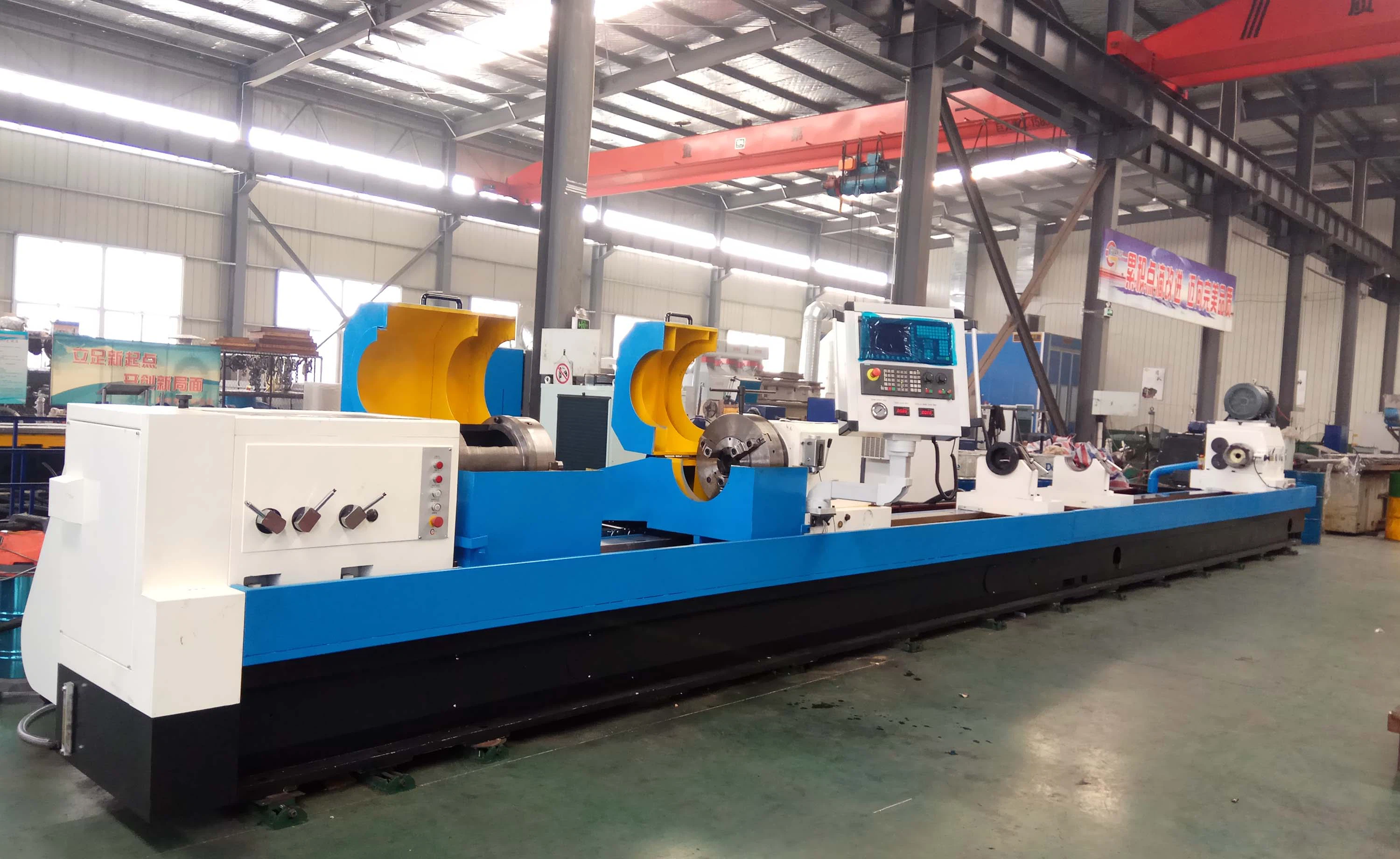

Deep drill machine
The machine is special equipment for machining deep cylindrical hole of workpieces(Drilling diameter range 30-200mm,which max.drilling depth can be 15 meters).It can be perfectly suited for drilling and boring through holes,blind and step holes in workpieces;Such as ,spindle of various kinds of machines,many kinds of hydraulic oil cylinders and cylinders and drill collars in the gas and oil field.
Machine specifications :
Specification | Parameters | Remark | ||
Working capacity | Drilling hole diameter range | 30-100mm | / | |
Max. drill depth | 3000mm | / | ||
Boring diameter range | 40-200mm | / | ||
Max. workpiece length | 3000mm | / | ||
Machine performance | Z axis | Feeding speed range | 5-500mm/min | stepless |
Rapid move speed | 2000mm/min | / | ||
Feeding motor torque | 20Nm | equipped with reducer | ||
Drill box | Gears quantity | 3-gears,12 steps | Manual shift | |
Ratary speed | 50-500r/min | / | ||
Motor power | 22KW | Three phase asynchronous motor | ||
Headstock | Gears quantity | 3-gears,12 steps | Manual shift | |
Ratary speed | 61-1000r/min | / | ||
Motor power | 30KW | Three phase asynchronous motor | ||
Coolant system | Max. pressure | 2.5MPa | Adjustable | |
Flow | 100/200/300/400L/min | Adjustable | ||
Q:Are you manufacturer?
A: Yes, we are manufacturers of cnc deep hole drilling machine, we have our own technical team, and workshop, welcome to visit us!
Q:What information will you need to make the proposal?
A: The external diameter and length of the workpiece, the diameter and depth of the drilling hole, You can just sent us your waorkpiece drawings if you have .
