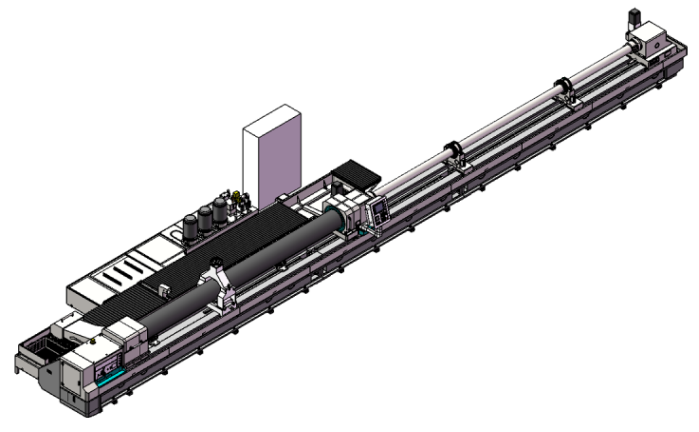

High Precision Deep Hole Drilling Machine

Name: China Customized High Precision Deep Hole Drilling Machine Suppliers Manufacturers - Guanlu
Brand: Guanlu
SKU: 296711996

Our deep hole drilling machine is engineered for high-efficiency and high-precision machining of medium to large workpieces. Designed with BTA drilling technology and flexible boring capabilities, it delivers superior performance for industries such as oil & gas, mold making, aerospace, and heavy machinery.

Send Inquiry Chat Now

Description

Precision Deep Hole Drilling Machine Product Description:

Deep Hole Drilling Machine Key Processing Capacity:

Drilling Diameter Range: Φ25–Φ180mm

Boring Diameter Range: Φ60–Φ254mm

Workpiece Outer Diameter: Φ60–Φ400mm

Workpiece Length: 500–5000mm

Deep Hole Drilling Machine Functions & Operation Modes:

Workpiece rotation with tool feed / non-rotation options

Workpiece rotation with simultaneous tool rotation and feed

BTA drilling with internal chip evacuation through tool bar

Boring with chip evacuation through workpiece bottom hole

Tool feed direction: Moves toward headstock during boring

Deep Hole Drilling Machine Main Components:

Heavy-duty machine bed

Precision headstock and oil pressure head

Drill bar support rest and drill box

Sliding guide rail and rack & pinion drive

High-pressure coolant system

Advanced CNC control system and electric cabinet

Workpiece carrier for stable clamping

Why Choose Our Deep Hole Drilling Machine:

Suitable for both drilling and boring operations

Customizable configurations for different workpiece diameters and lengths

High rigidity and thermal stability for long-run accuracy

Easy integration with existing production lines

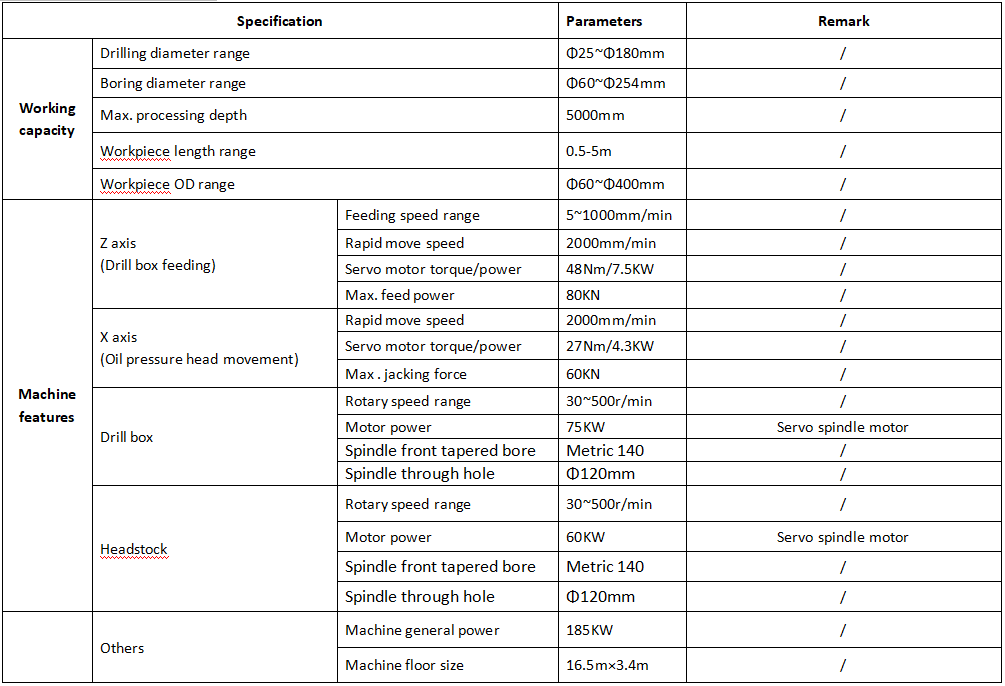

Deep Hole Drilling Machine Parameters :

product-1-1

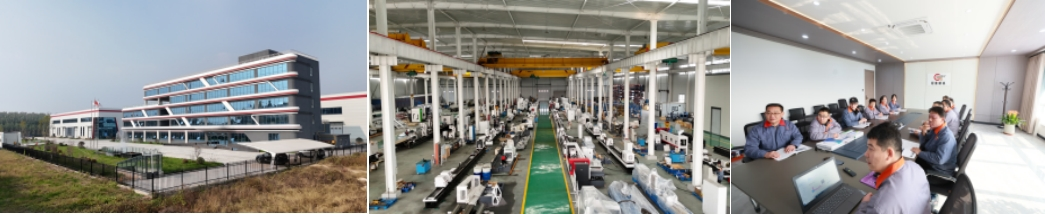

Company Profile
