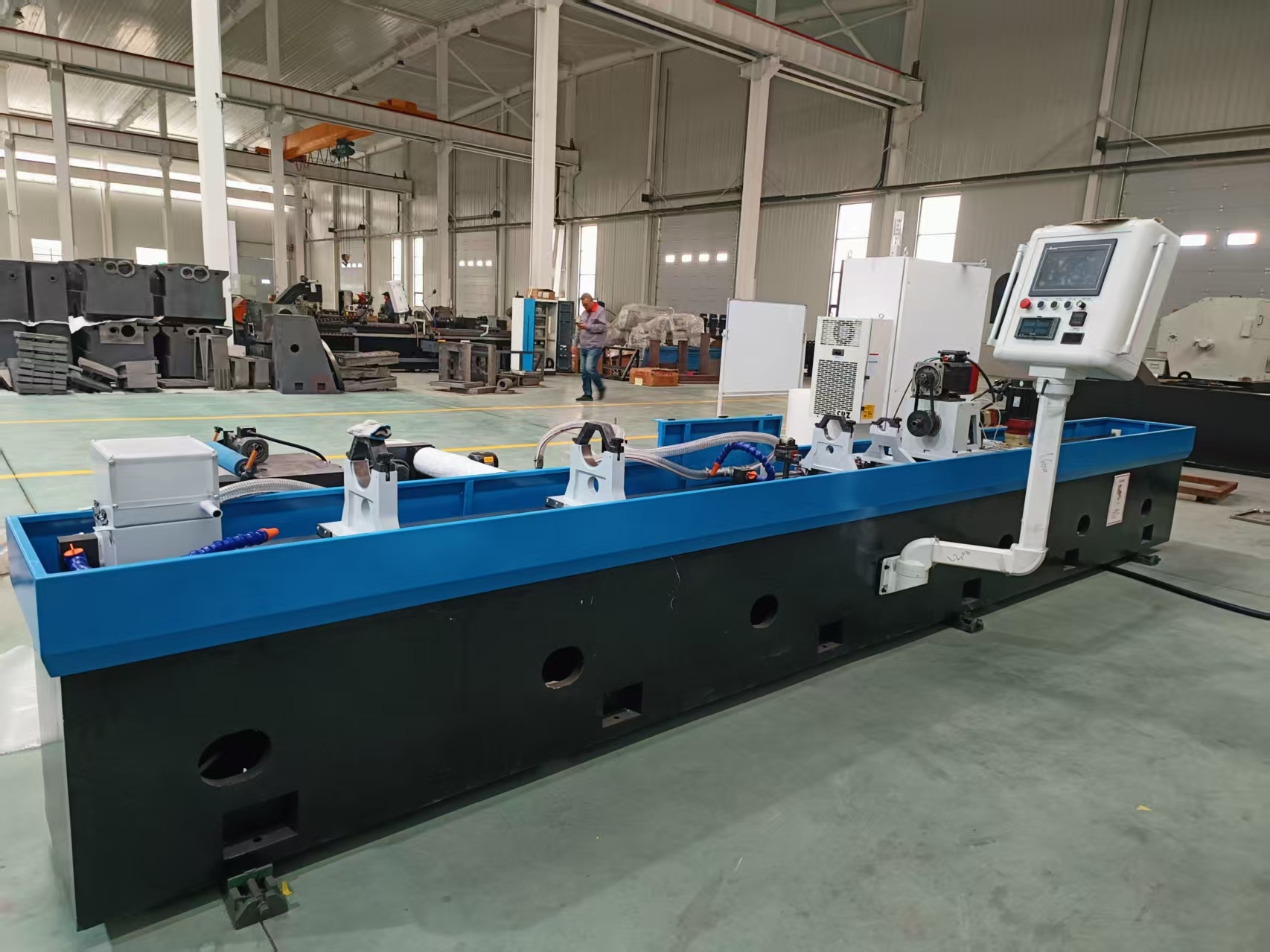

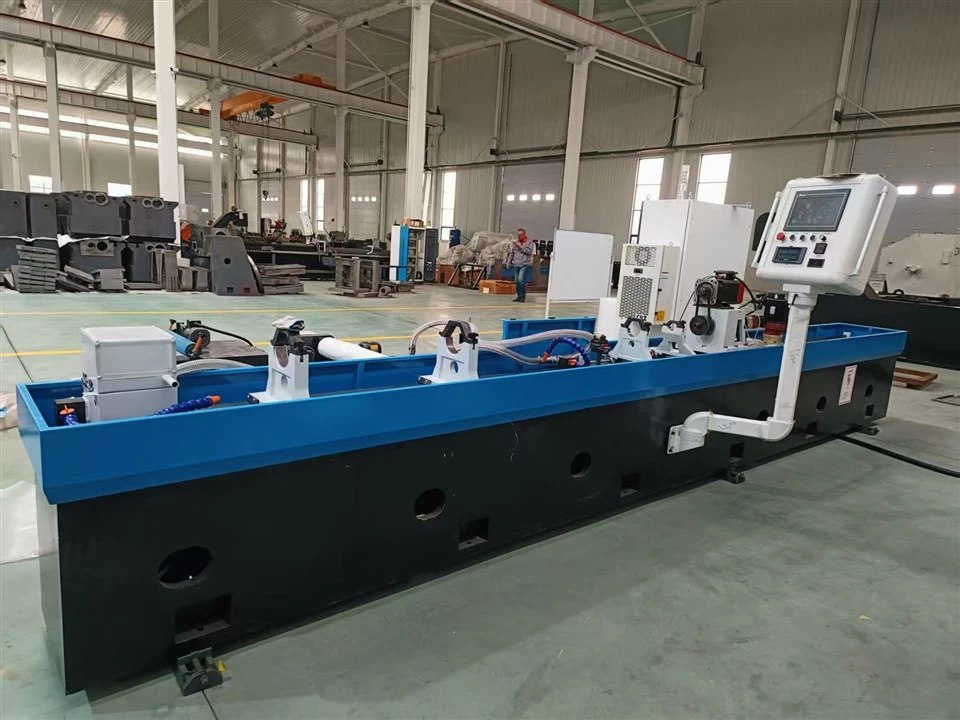

Model : 2MK2106×3m CNC Horizontal Small Hole Honing Machine
Manufacturer: Dezhou Guanlu Precision Machinery Co., Ltd.
Application: Precision finishing of cylindrical deep-hole parts such as Gun barrel , hydraulic cylinders and pneumatic cylinders
Honing Method: Workpiece fixed; tool rotates and feeds
Control: PLC + industrial touch screen
Honing Head Expansion: Servo-controlled, supporting constant-pressure feed, quantitative feed and hybrid feed



Key Specifications

Machine center height: 300 mm

Hole diameter range: Φ5–Φ60 mm

Max. machining depth: 3000 mm

Workpiece outer diameter range: Φ20–Φ160 mm

Workpiece length range: 500–3000 mm

Z-axis reciprocating speed: 1–40 m/min

Z-axis servo motor rated power: 3.6 kW

X-axis ejector rod rapid traverse speed: 600 mm/min

X-axis max. ejector rod pressing force: 20 kN

X-axis servo motor rated power: 0.75 kW

Spindle speed range: 10–600 r/min, stepless

Spindle motor rated power: 3.7 kW servo spindle motor

Machine load capacity: 1000 kg

Total machine power: approx. 12 kW

Overall dimensions: approx. 10 m × 3.2 m × 2.2 m (L × W × H)

Total machine weight: approx. 8 t



Cooling System

Internal oil supply: max. flow 40 L/min, motor power 0.55 kW

External oil supply: max. flow 60 L/min, motor power 0.25 kW

Oil tank capacity: approx. 900 L

Filtration precision: 20 μm



Key Features of CNC Horizontal Small Hole Honing Machine

Suitable for both overall honing and local honing; local honing can correct taper, ovality and local bore diameter errors.

Servo-controlled honing head expansion enables constant-pressure feed, quantitative feed and hybrid feed.

Constant-pressure feed avoids sudden spindle motor load increases and can achieve surface roughness up to Ra0.2.

Quantitative feed provides oilstone self-sharpening and can correct geometric errors of the bore.

Hybrid feed combines the advantages of both modes to improve honing accuracy and efficiency.

High-strength cast iron and resin sand casting; normalized after casting and again after rough machining to eliminate internal stress and ensure accuracy stability.

Split combined bed assembled with high-strength bolts and taper pins; linear guideways for the headstock; hardened rectangular guideways for workpiece support.

External and internal oil supply: external oil enters directly through the workpiece wall; internal oil flows through the hollow boring bar along the honing tool for better lubrication and cooling.

V-shaped workpiece fixture with manual screw adjustment and pipe-chain clamping, suitable for different workpiece diameters.

Honing bar support and honing bar bracket for stable support during machining and measurement.

Automatic lubrication station for headstock guideway sliders, with oil level alarm.

Independent electrical cabinet with dust protection and cooling system for stable and reliable control.

Complies with GB/T 9061-2006, GB/T 5226.1-2019, GB/T 25373-2010, JB/T 12403.1-2015 and JB/T 12403.2-2015.



Main Configuration

PLC control system: Delta + industrial screen

Z-axis servo motor: 3.6 kW, Wuhan Maixin

X-axis servo motor: 0.75 kW, Wuhan Maixin

Spindle motor: 3.7 kW MK servo spindle motor

Spindle bearings: NSK or equivalent

Rack: m3, reputable brand

Precision planetary reducer: reputable brand

Cooling system pump: reputable brand

Oil cooler: reputable brand

Main hydraulic components: reputable brand

Main electrical components: reputable brand



After-sale service

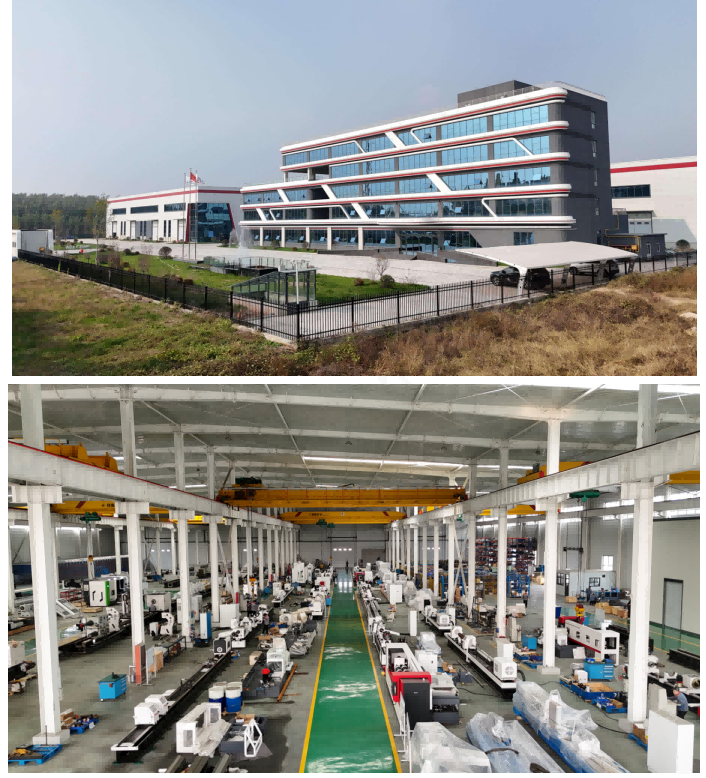

Factory photos:
