2MK2230 × 600mm CNC Vertical Honing Machine

Name: China Customized 2MK2230 × 600mm CNC Vertical Honing Machine Suppliers Manufacturers - Guanlu
Brand: Guanlu
SKU: 287491599

Functions 2MK2230 CNC Vertical Honing Machine is an ideal machine for machining deep hole parts. The machine tool is suitable for honing of various hydraulic cylinders, spindle holes, cylinder holes and cooling holes. The hole size accuracy of the processed parts can reach IT7～IT9, and the surface roughness of the inner hole: Ra0.4～1.6μm. It can be honed as a whole or locally; when locally honed, the taper, ellipticity, and local hole diameter error of the processed parts can be corrected. All the castings of the machine tool adopt the design concept of box structure, and are optimised by finite element analysis, so that they have the features of reasonable quality, high rigidity and high precision. All castings of the machine tool are made of high-strength cast iron and resin sand moulding casting. All castings are normalised after casting to eliminate the internal stresses generated during casting. After rough machining, the machine is normalised again to further eliminate the internal stresses generated in the casting process, and at the same time to remove the machining stresses generated in rough machining, so as to provide it with good precision stability.

Send Inquiry Chat Now

Description

Functions
2MK2230 CNC Vertical Honing Machine is an ideal machine for machining deep hole parts. The machine tool is suitable for honing of various hydraulic cylinders, spindle holes, cylinder holes and cooling holes. The hole size accuracy of the processed parts can reach IT7～IT9, and the surface roughness of the inner hole: Ra0.4～1.6μm.
It can be honed as a whole or locally; when locally honed, the taper, ellipticity, and local hole diameter error of the processed parts can be corrected.
All the castings of the machine tool adopt the design concept of box structure, and are optimised by finite element analysis, so that they have the features of reasonable quality, high rigidity and high precision.
All castings of the machine tool are made of high-strength cast iron and resin sand moulding casting. All castings are normalised after casting to eliminate the internal stresses generated during casting. After rough machining, the machine is normalised again to further eliminate the internal stresses generated in the casting process, and at the same time to remove the machining stresses generated in rough machining, so as to provide it with good precision stability.

Item			Main parameters	Remark
Processing range	Honing bore diameter range		Φ50～Φ310mm
	Maximum honing depth		610mm
	Workpiece OD range		60～500mm
	Workpiece length range		200-610mm
Machine performance	Reciprocating motion (Z-axis)	Recirculation speed range	1～30m/min
		Servo motor rated power	7.7kW
		Recirculation stroke	≥ 800mm
		Distance of spindle end face from table surface	≥ 2100mm
	Tool feed (X-axis)	Min. feed resolution	0.1μm
	Tool feed (X-axis)	servo motor rated power	0.8kW
	Worktable (Y-axis)	Max. movement speed	2000mm/min
		Servo motor rated power	0.8kW
		Movement stroke	≥ 500mm
		Table dimensions (length × width)	600mm×600mm	move back and forth
		Positioning/repeat positioning accuracy	0.1mm/0.05mm
	Spindle box	Speed range	1～300r/min	Stepless speed adjustmentadjustment
	Spindle box	Motor rated power	7.7kW
	Other	Machine tool table load capacity	500kg
	Other	Machine tool total power	Approximately 20kW
Cooling system		Cooling pump motor	550W
		Maximum Lift	10m
		Max. flow rate	Approx. 35L/min
		Filtration accuracy	20μm

product-299-284

Company Profile

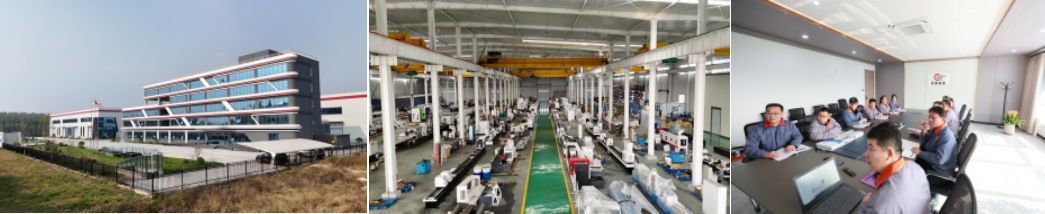

Guanlu Precision Machinery Manufacturing Co., Ltd.

Established in 2011, Guanlu Precision is a supplier specializing in the manufacturing of high-end precision machinery equipment and solutions. We are committed to providing global industrial clients with high-performance and highly reliable products.

Core Strengths:

1. Strong Manufacturing Capabilities

Equipped with over 40 advanced machining devices, including a German 12-meter Heckert guideway grinder, a Japanese 10-meter SNK 5-face milling machine, and large-scale gantry planers, enabling us to handle large, complex, and precision components.

2. Strict Quality Assurance System

Fully complies with the ISO9001 Quality Management System.

Implements comprehensive quality control throughout the entire process: from professional R&D and a stable supply chain to inspection at each production stage, culminating in a final 72-hour continuous operational test before shipment. This ensures every machine meets specifications 100% and delivers stable, reliable performance.

3. Professional Team and Service

Possesses a professional R&D and design team along with a skilled assembly team.

Provides customized solutions from design to production to meet the needs of various industries.

Primary Application Fields:
Aerospace, Automotive Manufacturing, Medical Devices, and High-End Industrial Equipment.

We build upon a foundation of exceptional quality and integrity in service, and we look forward to becoming your reliable partner. Please feel free to contact us for more information or to discuss custom solutions.
