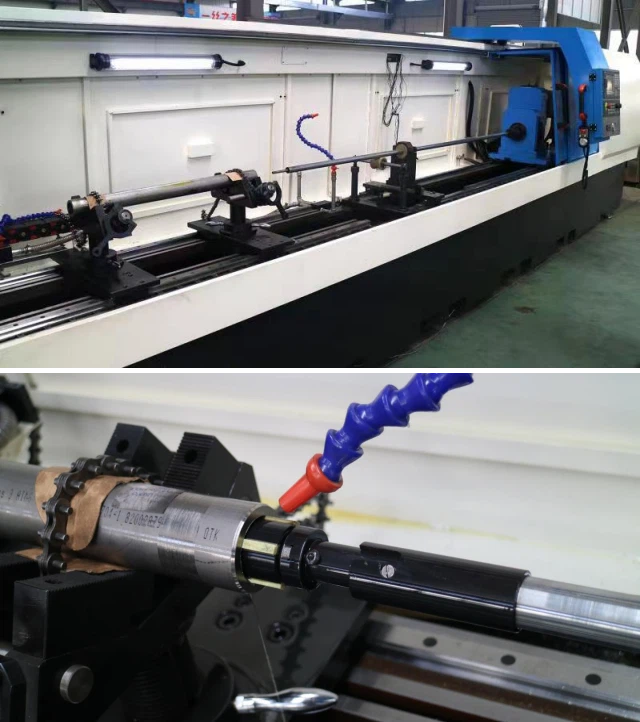

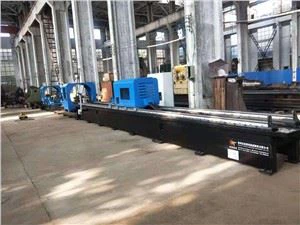

2M21015x1000mm Deep Hole Honing Machine

 MachineBrief :

• Processing Capacity :

Hole diameter range: Φ4~Φ25mm

Max. Honing depth: 1000mm

Max. Workpiece length:1000mm



• Machine is with super casting machine bed,after twice aging treatments, the internal

stress is eliminated, the structure and size are stabilized, and the mechanical properties are improved.



• The guide rail for moving workpiece and honing tool is square rolling linear guide rail, which has good precision and high rigidity.



• The servo spindle motor drives the spindle to rotate through the deceleration mechanism, and the spindle can realize stepless speed regulation.



• The servo feed motor drives the rack and pinion structure through the reducer, so as to realize the honing tool forward or backward at the set speed.



• The servo motor drives the mechanical mechanism to control the change of honing head

diameter.



• Both workpiece and tool can rotate,tool feeding. Customer can choose workpiece rotate

or fix. When workpiece fixed, the rest will support the workpiece.



• Machine is with simple protection.



• Cutting oil supply system: equipped with magnetic and paper filter device.



• Machine is with DELTA PLC controlsystem



• Electrical box:

•  Schneider low voltage electrical components:

Machine main technical parameters:



Specification			Parameters	Remark
Working Capacity	Honing diameter range		Φ4~Φ25mm	/
	Max. Honing depth		1000mm	/
	Max. Workpiece length		1000mm	/
	Workpiece OD range		Φ12~Φ70mm	/
	Max. Hole length-diameter ratio		65：1
Machine Features	Z axis	Feeding speed range	1~15m/min	Stepless
		Feeding motor power	2.8KW	/
	Honing box	Rotary speed	5~500r/min	Stepless
		Motor power	1.1KW	Servo spindle motor
Coolant system	Max. flow		38L/min	/
	Oil tank volume		300L	/





Machine main configurations list :



Series	Item Name	Supplier
1	Control system	DELTA PLC
2	Rack	Taiwan YYC
3	Servo feed motor	Chinese
4	Main motor	Chinese
5	Spindle bearing	NSK
6	Main electric components	SCHNEIDER
7	Linear guide	Taiwan TBI
8	Reducer	Taiwan



Machine standard parts:

Casting machine bed, honing box,workpiece carrier, honing bar support rest, rack and

pinion, coolant system, DELTA PLC control system, electric cabinet, working lamp, Machine

User Manual .



Optional parts   Honing head , Auxiliary toolings, Cutting oil and other control system.

Processing accuracy:



Hole size accuracy: IT7~IT8

Surface roughness: Ra0.2~Ra0.4um

Documents :Plane drawing of foundation and installation, General drawing of machine , Operation user

manual, Control system and program user manual, Electrical schematic diagram.
