Deep Hole Honing Machine

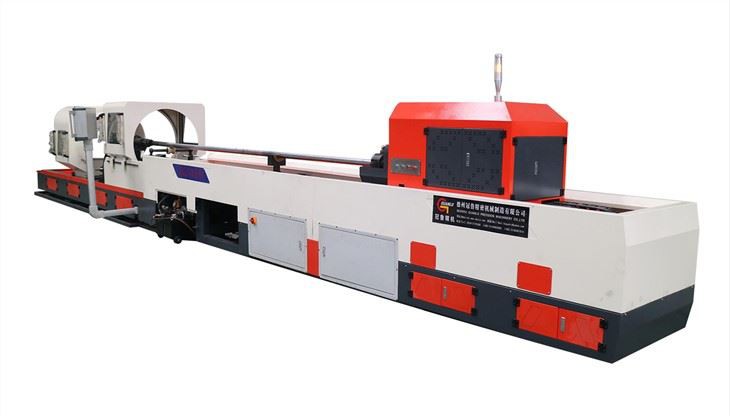

The deep hole honing machine is for repairing hydrualic cylinders or other tubes to get good surface roughness,our honing machine can hone the hole from 25mm to 800m,depth is from 500mm to 200000mm,many models are available. Honing head expanding is controlled by servo motor,can realize partial honing and completely honing. The industrial tube honing machine has fine levels of roundness,straightness and surface details.
Description
Deep hole honing Machine It is specially for all kinds of cylinder shaped workpiece, after worked by this machine, the accuracy up to IT7, surface roughness up to Ra0.2-Ra0.4um.
It is widely used in hydraulic cylinder repairing industry. it can be partical honing,which could correct the taper,elipticity and local aperture error.
Deep hole honing process is a three-in-one metal working process:
Remove excess metal stock.
Reinforces straightness,roundness and size.
Creates a crosshatch finish for optimal lubrication of the inner surface.
Advantage of Guanlu deep hole honing machine:
Guanlu deep hole honing machine is very popular in Russia,India,South Africa,Zambia,Chile,Austrilia and other countries. Reasons as below:
Cast machine bed,mostly competitors use welded machine bed,which is not so rigidity after some time,machine accuracy will get bad. while Guanlu insists on cast machine bed,especially for honing big diameters,although price is a big expensive,it is the first choice for who attention for machine quality.
Equip Servo expanding system,which could realize rated infeeding and rated expanding. and this two modes could exchange freely,this system enhance the hole cylindricity and ellipse,protect and increase the lifespan of the honing head.
Honing mud washing system: we equipes both inner and outer oil spray system,which could wash away the honing muds in time. So the inner hole surface will not been scratched by the metal honing muds.
Double round cylindricity high speed guide rail,which guruantee the stability of honing machine during high speed infeed,the slide block of the guide rail is with rated auto lubrication,the servo motor drive the rack rotating and dragging the honing box reciprocating.
Rack and Pinion transmission system,servo motor and Taiwan precise reducer,which make the machine has big torque.
Electrical box is USA Rittal structure,with good ventilation and heat dissipation and dustproof performance,all low voltage components are Schneider brand. The electric box is equipped with air cooler.
Coolant filtering system: Magnet filtering and paper filtering,which will guruantee the oil clean,output stable,chips discharge smoothly.
Low noise:We updated our deep hole honing machine structure and honing head structure,when the machine working,noise is very low.
The honing processing position have inside and outside oil spray,which will get much clean honed surface. The honing mud will be washed away in time.
Big honing remove stroke:We has updated the honing stone material,by using our honing machine and honing stone,we could get powerful honing finishing,could remove the wall thickness very quickly.
Guanlu Honing head has special design,which is in light weight,by using our own designed honing head,the honed hole could have good roundness.
Guanlu deep hole honing machine available models:
Small honing machine for gun barrels: Honing size is from 7mm to 30mm,it is used for military industry,after drilled,the gun barrel needs to be honed to get good surface.
Normal size deep hole honing machine for repairing hydraulic cylinders,honing size is from 30mm to 200mm,250mm,350mm,500mm,800mm. We have several models avalable. Length is flexible as well.
Deep hole honing machine structures:
Machine bed:
Machine bed | HT300 iron cast machine bed --tempering--aging treatment--blasting treatment-machining the parts(planing,grinding ,milling) |
Guider rail | Circular linear guide rail ,Driven by rack and pinion |
Carriage | Carriage is mounted on circular linear guide rail |
Workpiece:
Workpiece clamping method | Chains clamping(tightening),screw drive chains to fasten the workpiece |
Workpiece position | V rest (depends on the workpiece size), Centering the workpiece by adjusting the screw. |
Honing head:
Honing head driven | Driven by honing box spindle rotation,and do axial movement |
Honing head expansion and tightening | Through servo motor |
Honing box:
Honing box | Mounted on carriage |
Honing box motor | Conveter motor control, stepless |
Cooling system:
Cooling tank | Mounted on floor |
Paper filter and magnetic separator | 20um level of purity |
Honing oil | HY-80（Chinese brand),dynamic viscosity 3-6 cm2 per seconds,flash point:130 Side point:-30census. |
Lubrication system:
Lubrication system | Honing box is self-lubricating mode(The honing oil is injected into the honing box, and the parts are lubricated by rotation of the gears.) Circular linear guide rail lubrication mode: intermittent lubrication (single point centralized lubrication) |
Lubricating low level alarm | Low level sensing-light alarm and bell alarm |
Lubrication oil type | Mineral base lubricate |
Electrical system:
Machine control system | Delta PLC |
Travel position adjustment | Position determined through PLC panel |
Operating panel | HMI Touch Screen |
More details and more videos will be provided once received your request!!!
Company Brief introduction：
Dezhou Guanlu Precision Machinery Co.,Ltd,is founded in year 2011,we are the most famous factory in my local to manufacture deep hole honing machines.
Our deep hole honing machine is not with the lowest price,because cast bed is increasing cost,on the other hand,our deep hole honing machine has advanced structure than other local competitors. It is not the lowest price,but it values your money.
My factory has our own strongly machining facilites,Germany brand Heckert guide grinder,chinese most famous planner,VMC,Lathes,box boring machine,milling machine and so on. With these above machining machines,under proper management system,so we could have a fast and stable delivery.
Guanlu deep hole honing machine has been exported to more than 40 countries and satisfed by all of our customers. It is widely used for repairing hydraulic cylinders all over the world.Some customer told us that our machine performance is as good as Sunnen brand deep hole honing.
