Tube Honing Machine For Repairing Cylinders

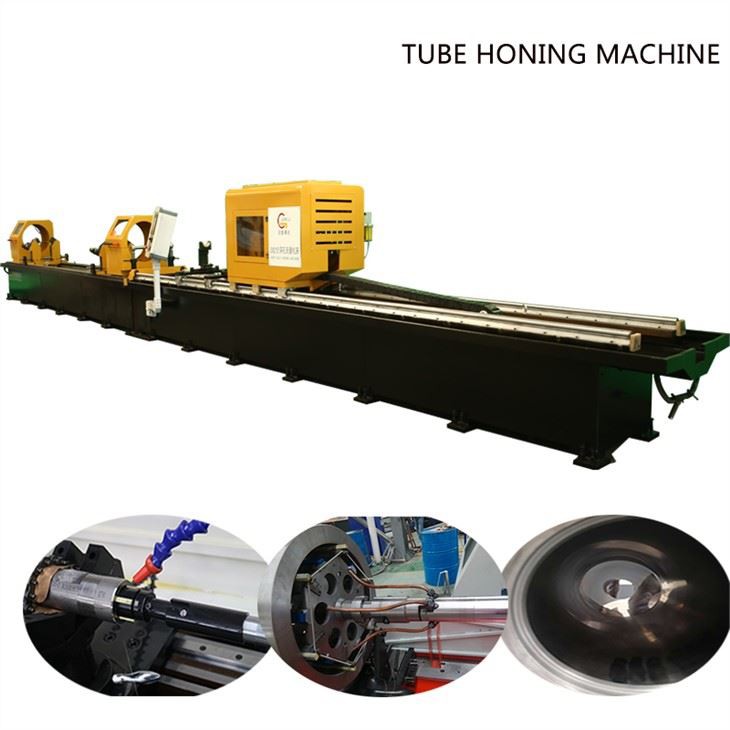

Tube honing machine is a versatile tube honing machine that combines the best features of other Sunnen and General Hone machines. Precision sizing and finishing of long and large bores has never been easier or more productive.

The expansion and tightening of honing head is controlled by servo motor, which can not only realize constant pressure feed of honing head, but also realize constant volume infeed of honing head.



Production Introduction

FEATURES :

• A PLC control and digital display allow complete control and monitoring of machine conditions
• A built-in load meter indicates high and low spots in the tube bore as the operator can adjust the stroke as required for optimum cycle time
• The operator can also work out tight spots in the bore when using the Short Stroke Cycle and Stroke Dwell features
• The  Modular Honing Tool System continually compensates for stock removal and stone wear to keep the machine running at peak efficiency at all times
• The machine is available in two-meter, four-meter, six-meter and eight-meter models, several different tooling systems are available depending on the specific application
• Lifetime application service with every machine purchase

 Workpiece clamping

The workpiece is placed on two sets of V-type workpiece brackets, and the workpiece is locked by pipe clamp chains. The V-type bracket can be adjusted manually to fit the clamping of workpieces with different diameters.

Machine main Structure

Machine bed body, honing box, 2 sets of workpiece bracket, honing bar support, rack and pinion structure, cooling system, Delta PLC control system, electric cabinet, etc.

CNC axis:

Z1 Axis: Longitudinal infeed motion of honing box (honing head reciprocating movement), servo motor drives rack and pinion structure through reducer.

Z2 Axis: Controlling tool expansion and contraction, servo motor drives tool expansion pin to move axially through reducer

Machine bed

The machine adopts casting machine bed, with high rigidity and stability , after two aging treatments, the internal stress is eliminated, the structure and size are stabilized, and the mechanical properties are improved.

Honing Box

It is used to drive the honing head rotation, and the speed of the tool can be adjusted steplessly.

Control System

Delta PLC control.



Company Photos:

Plant 1



Plant 2

                                                    12M Germany HECKERT Guide Rail Grinding Machine

                                                 Machinning linear accuracy: every 1000mm/2-3um tolerance.
