Horizontal Cylinder Honing Machine

Name: China Customized Horizontal Cylinder Honing Machine Suppliers Manufacturers - Guanlu
Brand: Guanlu
SKU: 58704881

Horizontal Cylinder Honing Machine is used for cylindical jobs honing process.Honed hole accuracy:IT6-IT7,Honed hole roughness: Ra0.2-Ra0.4μm,The machine can be partical honing,reparing the cylinders.

Send Inquiry Chat Now

Description

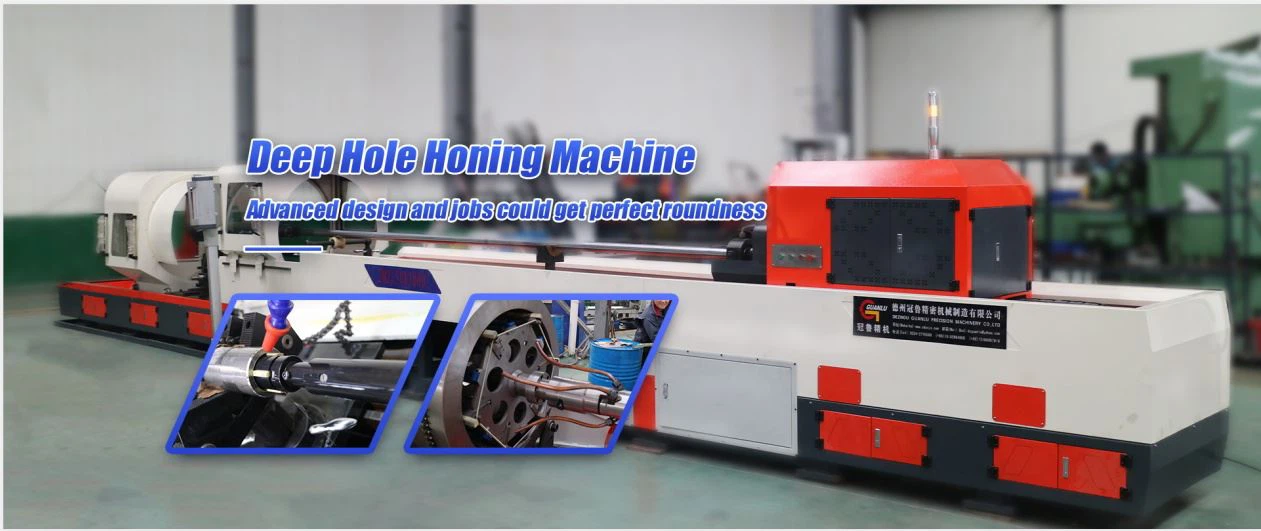

Horizontal Cylinder Honing Machine

Horizontal cylinder honing machine usage:

Reparing the hydraulic cyinders and get good roughness Ra0.2-Ra0.8um.Guanlu produce different models and we are able to design the honing machine according to your request.

Horizontal deep hole honing Machine Main Parameters(2M2135 for example):

Item	Specification
Machine name	Horizontal deep hole honing machine
Machine Model	2M2135 x10000mm
Deep hole honing machine diameter range	40mm-350mm
Deep hole honing length	Max. 10000mm
Center height: carrier body guide surface to honing bar	350mm
Clamping jobs diameter range	60mm-400mm
Honing box spindle speed range	25-250r/min stepless
Honing box spindle reciprocate speed range	1-20m/min stepless
Honing box motor power	7.5KW(servo motor)
Coolant pump flow	100L/min(adjustable)
Coolant box volume	950L
Honing head expanding system oil pump motor power(servo control)	0.75Kw
Coolant pump motor power	0.25Kw
Reciprocate motor power	5.5Kw

Newly design advantage for horizontal deep hole honing machine:

Honing head expansion controlled by servo motor

Expansion pressure is steady and reliable.

Can inspect the workpiece inner hole automatically,which can realize partical honing, enhance the working efficiency.

Servo control can be controlled through CNC pannel,diginal read,adjustment accuracy.

Honing oil feeding(outside and inside combined)

Honing oil go inside through honing bar,which will have big force to wash the honing dirties away.

Inside honing oil feeding can make up the long workpiece honing defect.

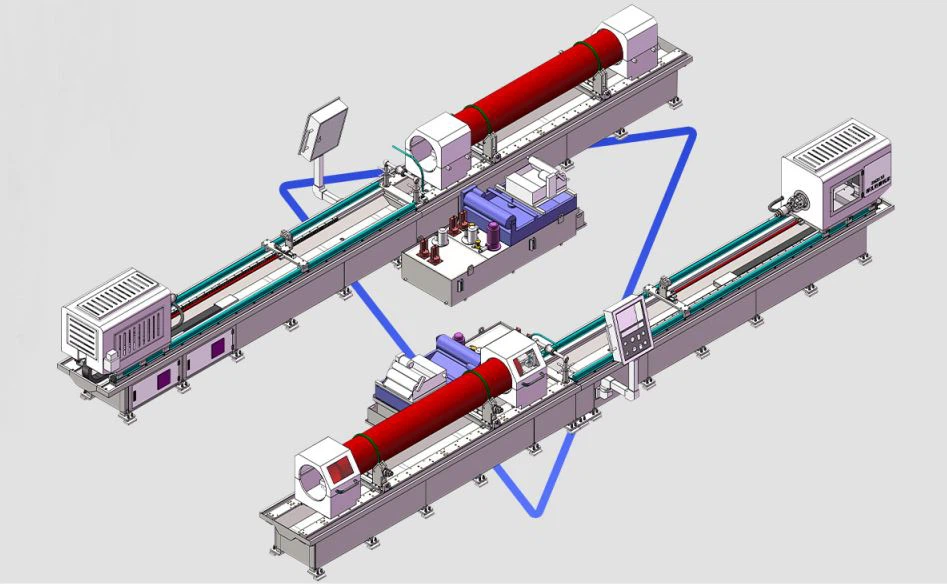

Machine mainly units of the horizontal deep hole honing machine:

Machine bed base

Machine bed base

Square steel welding.

tempering-ageing treatment.

ball blast treatment.

machining process(planing, grinding, milling).

Guide rail

Round linear guide rail.

With rack and pinion transmission structure.

Carrier

Carrier is mounted on round linear guide rail. Drive honing box moving.

Workpiece

Workpiece clamping mode

Chains clamping/locking.

Workpiece location

V rest and U wheel(depends on the workpiece size).

Centering the workpiece by adjusting the screw.

Workpiece honing oil infeeding

Honing bar(inside honing oil) delivery and outside honing oil through oil hose.

Honing head

Honing head	Installed on the honing bar, and the honing bar is driven to rotate and do axial infeeding by honing box.
Honing head drive	Driven though honing box spindle rotation, and do axial motion.
Honing head expansion	by servo motor(0.75Kw)
