Hydraulic Cylinder Boring Machine
The TSK2125A x 2000mm Deep Hole Drilling and Boring Machine is a versatile and robust machine tool designed for deep hole drilling, pull boring, and push boring operations. It is ideal for machining hydraulic cylinders, molds, shafts, and other long-axis workpieces. With BTA drilling technology and automatic chip removal, this machine ensures high efficiency, precision, and surface quality in one setup.
Description
Hydraulic cylinder boring machine – High Precision, Heavy Duty
Hydraulic cylinder boring machine Overview：
The TSK2125A x 2000mm Hydraulic cylinder boring machine is a versatile and robust machine tool designed for deep hole drilling, pull boring, and push boring operations. It is ideal for machining hydraulic cylinders, molds, shafts, and other long-axis workpieces.
With BTA drilling technology and automatic chip removal, this machine ensures high efficiency, precision, and surface quality in one setup.
Keywords
Hydraulic cylinder boring machine
Deep hole drilling machine
BTA drilling system
CNC boring machine
Pull boring equipment
Push boring machine
Precision deep hole machining
Industrial drilling and boring machine

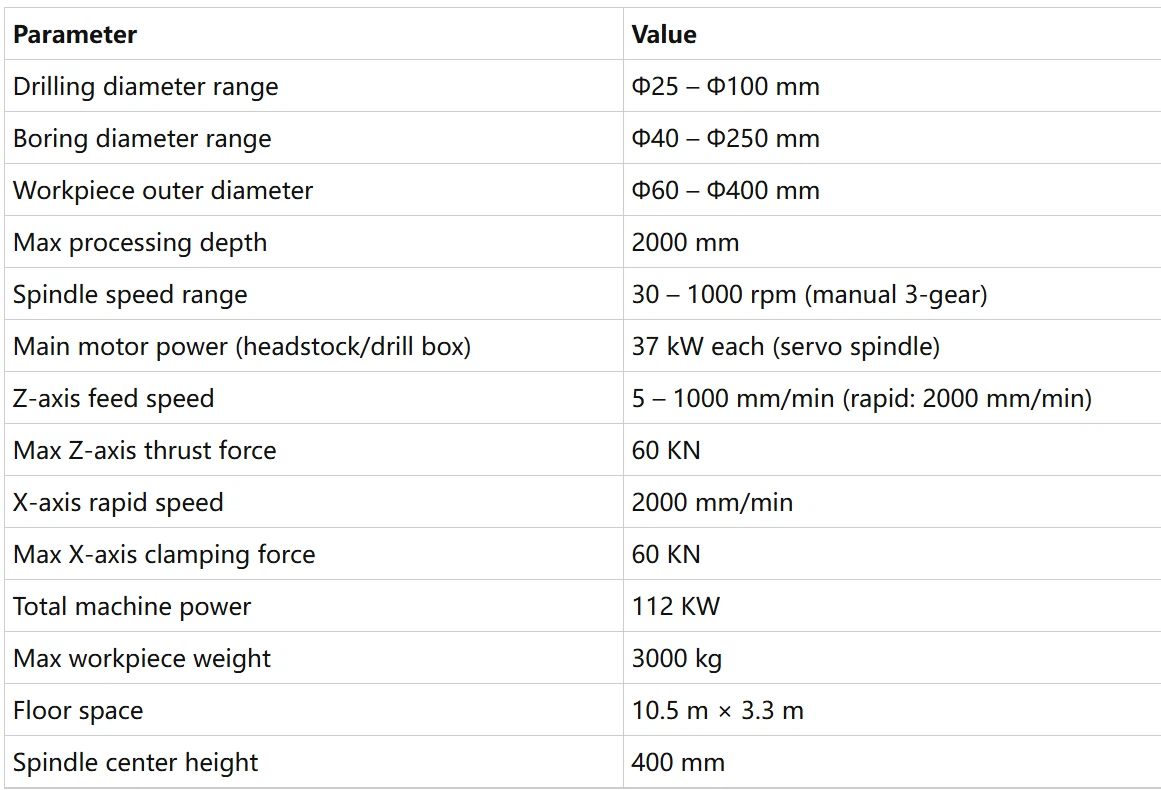

Hydraulic cylinder boring machine Technical Specifications：

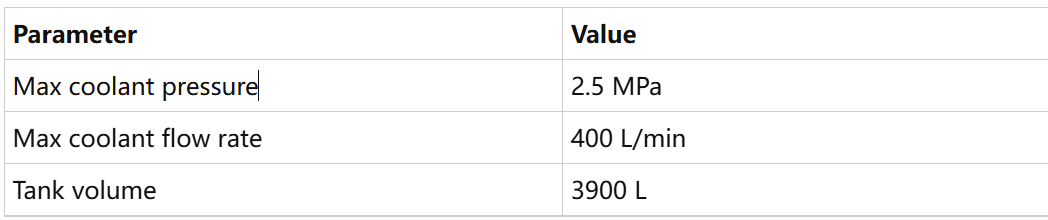

Hydraulic cylinder boring machine Cooling System：

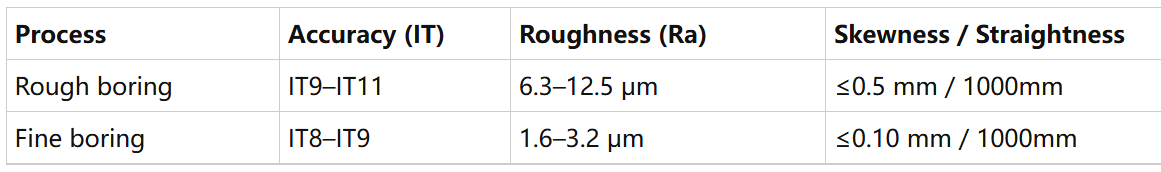

Machining Accuracy:
Machine Structure Highlights：
1. Hydraulic cylinder boring machine Processing Methods
BTA drilling – chips removed through the drill bar (backward)
Push/pull boring – chips removed forward through the existing hole
2. Main Components OF Hydraulic cylinder boring machine:
- Heavy-duty cast iron bed (resin sand casting, normalized)
- Headstock with manual 3‑jaw chuck (Φ400mm)
- Oil pressure head (servo‑driven, for tool guiding and coolant supply)
- Drill box (rotary tool drive)
- Drill bar support rest (automatic return mechanism)
- Workpiece carrier and center rest
- Automatic lubrication system (low‑level alarm)
3. Clamping Method
One end clamped by manual 3‑jaw chuck on headstock
Other end automatically tightened by cone disc on oil pressure head
4. Control System
PLC control (Delta)
Z‑axis (feed): servo + rack & pinion
X‑axis (clamping): servo + rack & pinion

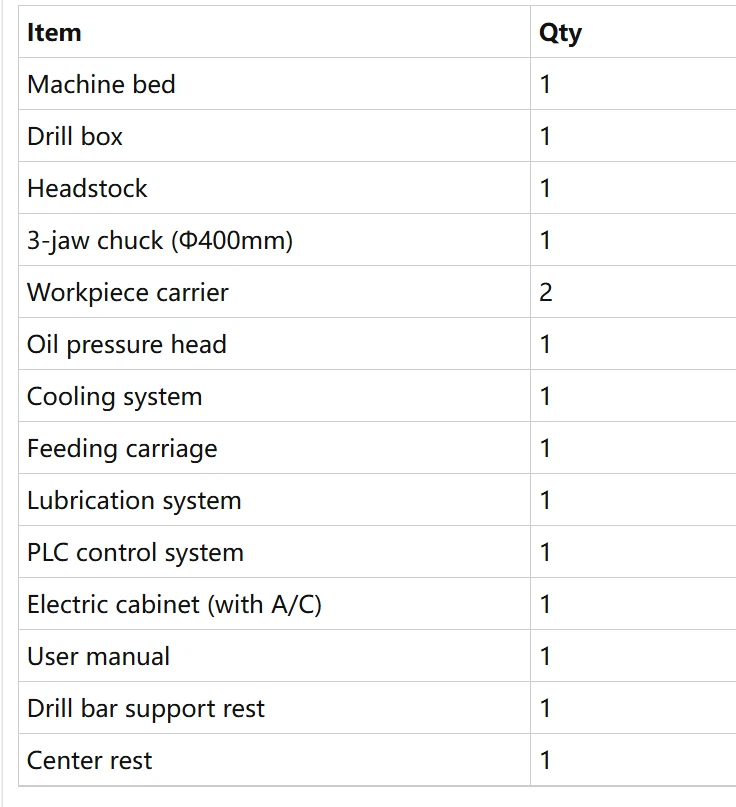

Hydraulic cylinder boring machine Standard Accessories:
Why Choose the TSK2125A?
✔ BTA + pull/push boring in one machine
✔ High cutting force (60 KN) for tough materials
✔ Automatic chip and coolant management
✔ Heavy‑duty cast iron construction for stability
✔ Flexible control options (PLC or CNC upgrade)
✔ Proven design for hydraulic cylinder and deep hole applications
