Product Introduction

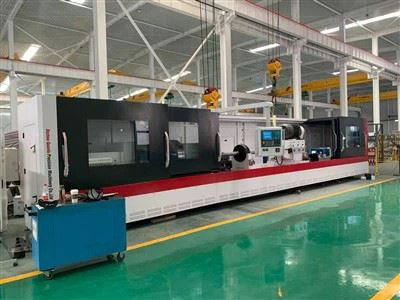

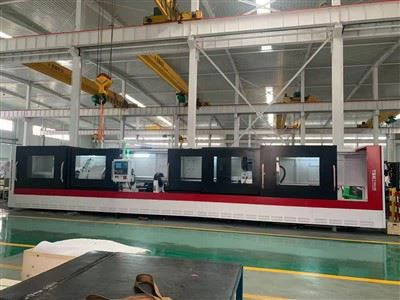

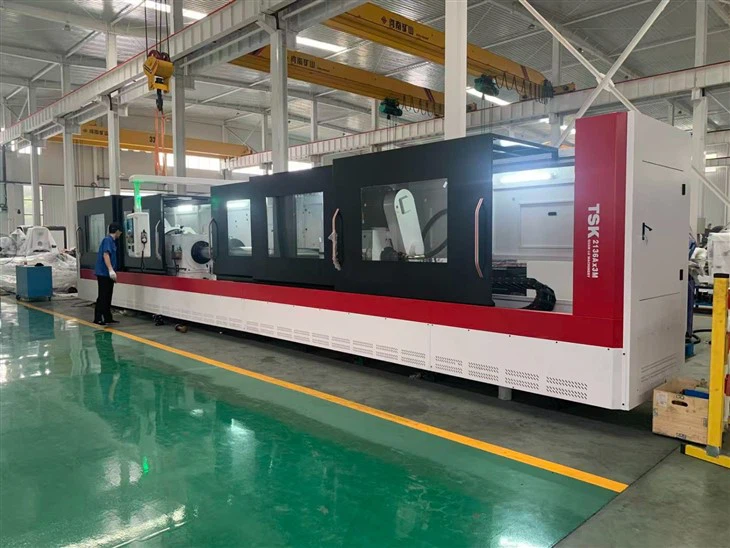

The TSK2136A Deep Hole Drilling Machine is a high-efficiency deep hole drilling and boring machine designed for precision machining of long and large-diameter workpieces.

This advanced BTA deep hole drilling machine integrates drilling, boring, and trepanning functions, providing a complete deep hole machining solution for demanding industrial applications.

It is widely used in industries such as oil & gas, hydraulic systems, heavy equipment manufacturing, and precision engineering.

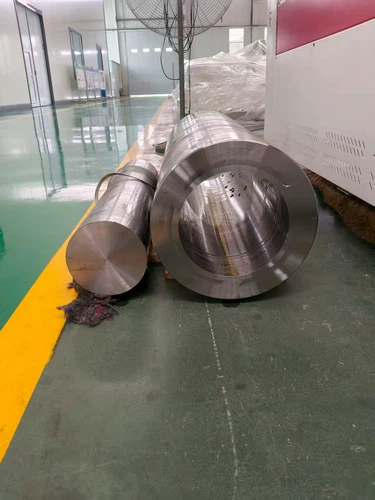

Trepanning workpiece

---

Main Functions

This deep hole drilling machine supports multiple machining processes:

Deep hole drilling (BTA method) – efficient internal chip removal

Deep hole boring – high-precision hole finishing

Deep hole trepanning – suitable for large diameter hole machining

With multi-function integration, this deep hole boring machine significantly improves productivity and reduces machining costs.

---

Key Features

High Precision Deep Hole Machining

Hole accuracy up to IT8–IT11

Surface roughness: Ra1.6–12.5 μm

Excellent hole straightness for long-depth machining

This ensures reliable performance for high-precision deep hole drilling applications.

---

---

Robust Machine Structure

High-quality HT300 cast iron with double aging treatment

Hardened guideways (HRC48–52) for durability

High rigidity to handle heavy cutting loads

The strong structure guarantees long-term stability of the deep hole drilling equipment.

---

Reliable CNC Control System

Equipped with SIEMENS 828D CNC system

Servo-controlled X and Z axes

Easy operation and high automation

This CNC deep hole drilling machine ensures precise and efficient machining.

---

High-Performance Cooling System

Max pressure: 2.5 MPa

Flow rate: 600 L/min

Large oil tank capacity for continuous operation

The cooling system is optimized for stable deep hole drilling machining.

---

Technical Specifications

Drilling Diameter: Φ25 – Φ110 mm

Boring Diameter: Φ40 – Φ360 mm

Trepanning Diameter: Φ80 – Φ300 mm

Max Drilling Depth: 3000 mm

Workpiece Length: 500 – 3000 mm

Spindle Speed: 40 – 500 rpm

Feed Speed: 5 – 1000 mm/min

Max Feed Force: 60 KN

Total Power: 120 KW

---

Applications

This deep hole drilling machine is ideal for:

Oil & gas components (drill collars)

Hydraulic cylinders

Large shafts and pipes

Heavy machinery parts

Precision deep hole components

---

Why Choose This Deep Hole Drilling Machine

Integrated deep hole drilling, boring, and trepanning

Proven BTA deep hole drilling technology

High precision and stability

Strong structure for heavy-duty machining

Suitable for a wide range of industrial applications
