Single Spindle Deep Hole Gundrilling Machine

ZSK2103×1000mm Deep Hole Gun Drilling Machine



1. Machine brief:

1.1 Processing Capacity :

v Drill range: Φ3~Φ30mm

v Max. Drill depth : 1000mm

v Max. drilling length to diameter ratio: 100:1

v Workpiece OD range: Φ15～Φ100mm

1.2 Gun drill drilling method, single spindle structure, suitable for machining coaxial holes on shaft parts

1.3 During the machining process, the tool and workpiece rotate relative to each other, and the tool feed



Workpiece Clamping

Cone disc mounted at the front end of the headstock/guide frame spindle.

Hydraulic system controls axial movement of the spindle.

Chamfers on the cone plate and workpiece ends enable automatic clamping and positioning.



Guide Rails

Linear guide rails are used.



CNC System

SIEMENS.



Drill Box

Servo main motor drives spindle via synchronous belt and pulley.

Stepless speed regulation, max spindle speed 5000 r/min.

Front spindle drive protects the motor and simplifies tool change.



Headstock

Drives the workpiece to rotate at a constant speed.

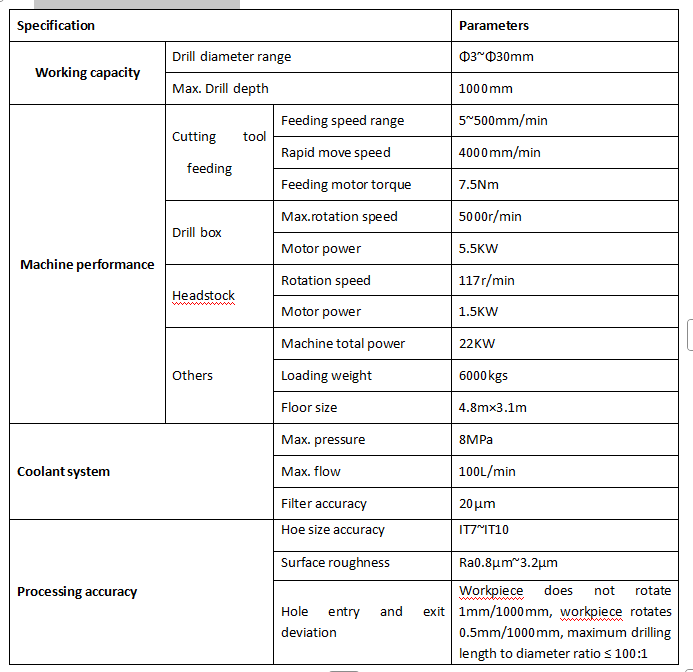

2. Machine main parameters :



3.Machine standard parts :

Chain plate chip conveyor, automatic paper bag filter, oil cooler, tool oil supply pump group, CNC system and its servo feed motor, servo main motor for drill box, T-groove worktable, linear guide rail, hydraulic station, drill bar support rests, constant speed headstock, 1 set of instruction manual.

4.Optional parts :

Manual paper tape filter machine,other CNC systems,cutting tool , auxiliary tools, cutting oil,automatic oil slinger.

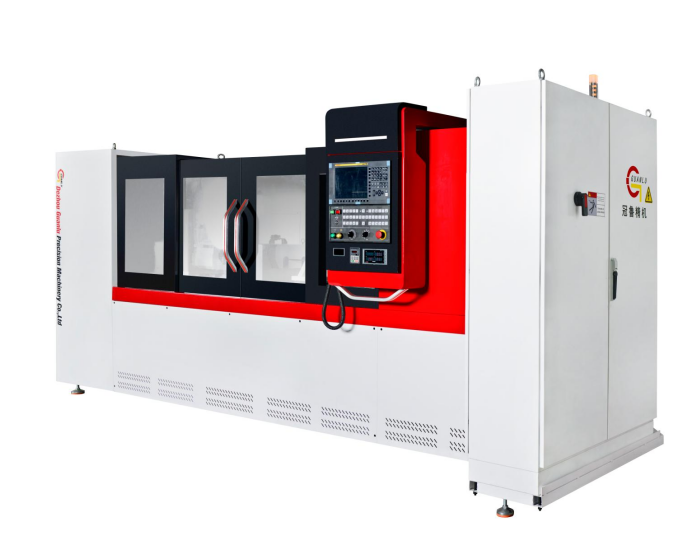

5.Machine photo :
