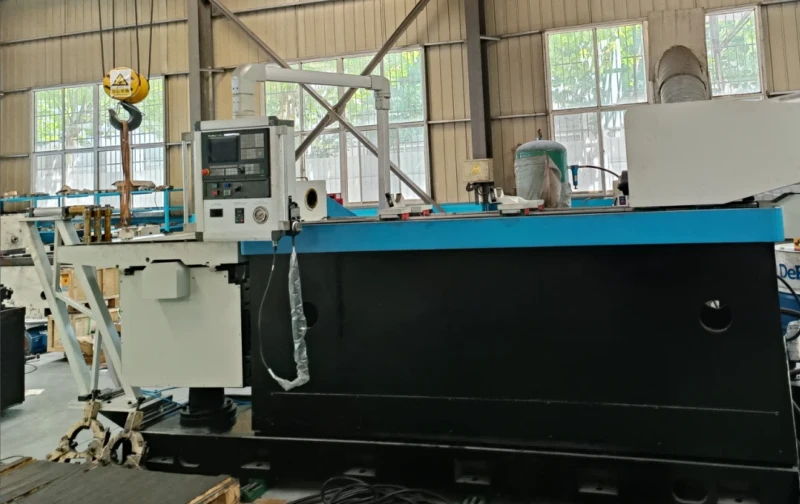

3-Axis CNC Quartz Glass Drilling Machine

3-Axis CNC Quartz Glass Drilling Machine

High-Precision Deep Hole Drilling for Quartz Glass

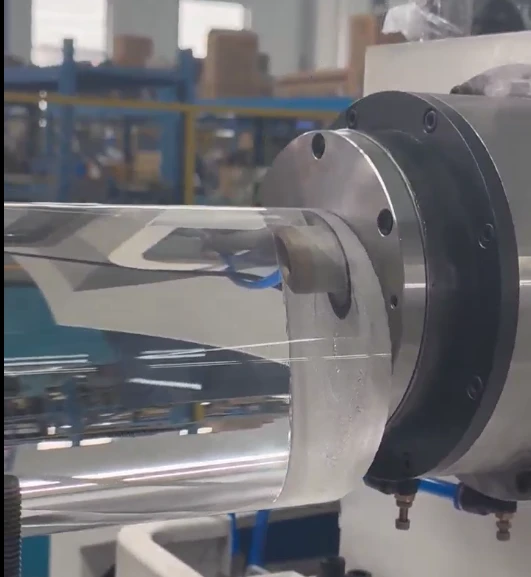

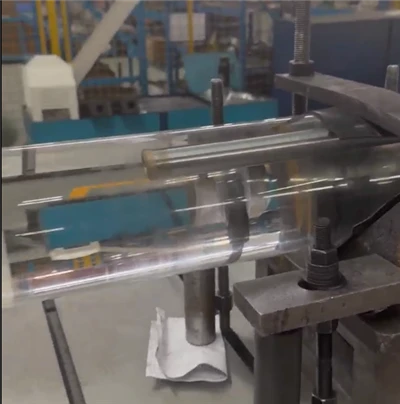

The 3-Axis CNC Quartz Glass Drilling Machine is specially designed for high-precision deep-hole drilling, hole expansion and chamfering of quartz glass. With SIEMENS CNC control, the machine provides accurate, stable and automated machining.

It is suitable for through holes, blind holes, stepped holes and coordinate-positioned holes, with drilling depths up to 1700 mm and a maximum length-to-diameter ratio of 80:1.

Key Features

3-axis CNC control with SIEMENS system

Drilling diameter: Ø5–Ø110 mm

Maximum drilling depth: 1700 mm

Length-to-diameter ratio up to 80:1

Hole expansion and chamfering functions

Suitable for through, blind and stepped holes

Spindle speed up to 5000 r/min

7.5 kW servo main motor

Infinitely adjustable spindle speed and feed rate

Automatic machining cycle

Efficient cooling and filtration system

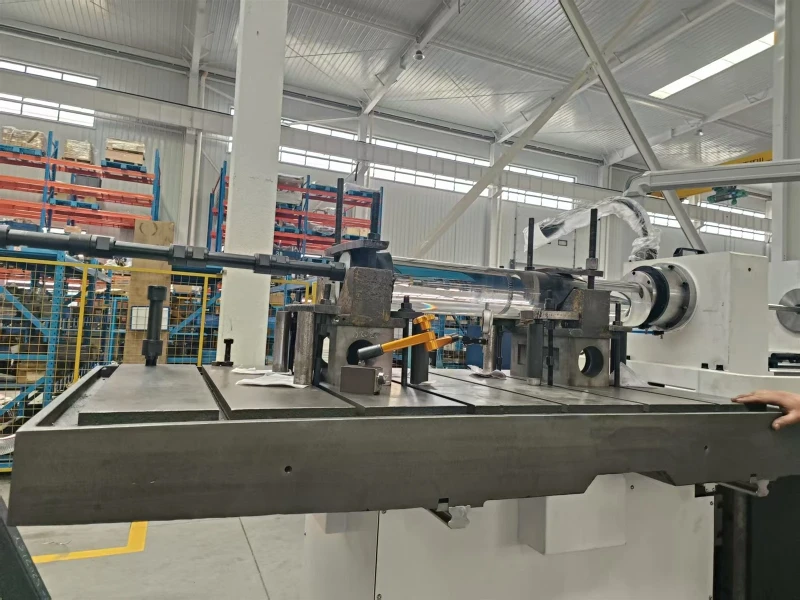

Two sets of drill shank supports for stable deep-hole drilling

Technical Specifications

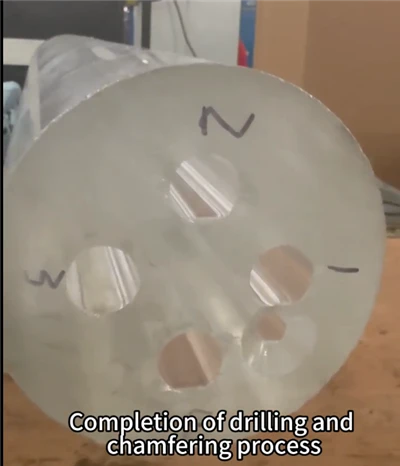

Machining Process: Deep-hole drilling → Hole expansion → Chamfering

Application: Quartz glass deep-hole machining, precision hole drilling and coordinate hole processing.
