BTA Deep Hole Drilling And Boring Machines

TSK2136Ax5000mm Deep Hole Drilling and Boring Machine





1. Machine processing capacity :

Drilling diameter range : Φ18~Φ100mm

Boring diameter range: Φ40~Φ360mm

Workpiece OD range : Φ90~Φ500mm



2. Machine functions :

Drilling hole : BTA drilling method,remove the cutting chips backward through the drill bar .

Boring hole : Push boring method , remove the cutting chips forward through the basic hole of workpiece .

3. Machine main structure :

3.1 Main parts of machine

Machine bed, headstock , oil pressure head, drill bar support rest , drill box , sliding guide rail , Rack and pinion, coolant system , control system , electric cabinet, workpiece carrier etc. .

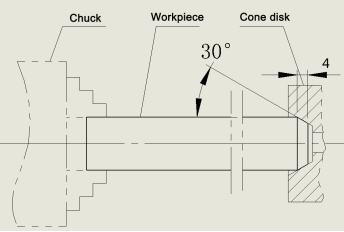

3.2 Workpiece clamping

The manual three-jaw chuck on the headstock clamps one end of the workpiece, and the cone disc on oil pressure head automatically tightens the other end of the workpiece. .



3.3. Machine control system

Control system : DELTA PLC

Z axis：The longitudinal feed movement of the drill box, the servo motor drives the rack and pinion mechanism through the reducing mechanism.

X axis: Oil pressure head servo tighten the workpiece , the servo motor drives the rack and pinion mechanism through the reducing mechanism.



3.4 The machine bed , box body, carriage etc. basic parts are precisely cast by super casting iron, processed by twice aging treatment after casting ,to eliminate stress , stable the structure and size , improve the mechanical properties ,etc. .

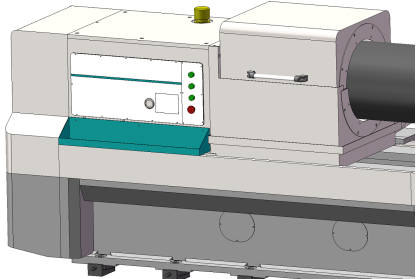

3.5 Headstock :

Used to drive the workpiece to rotate, fixed on the left end of machine bed .

Manual three-gears , speed stepless within gear , the servo spindle motor drives the spindle to rotate through belt and gear box , the manual three-jaw chuck is installed in front of headstock for clamping the workpiece .

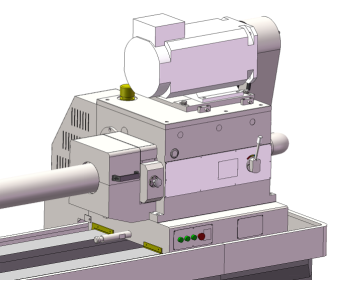

3.6 Drill box

Used to drive the cutting tool to rotate, installed on the feeding carriage .

Manual three-gears , speed stepless within gear , the servo spindle motor drives the spindle to rotate through belt,belt pulley and gear box .

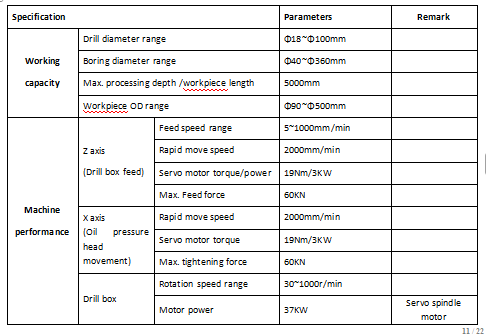

4. Machine main parameters:

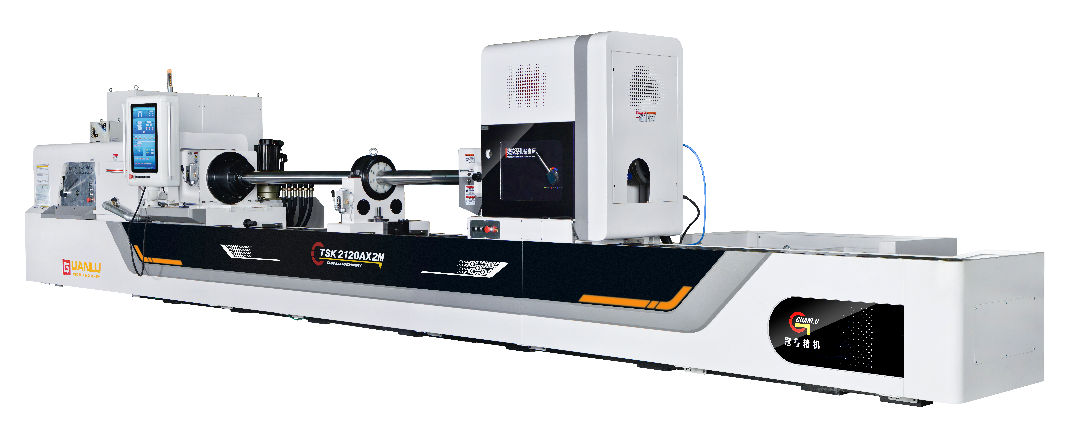

5.Machine photo:
