Deep Hole Gundrilling Machine For Dual Spinlde

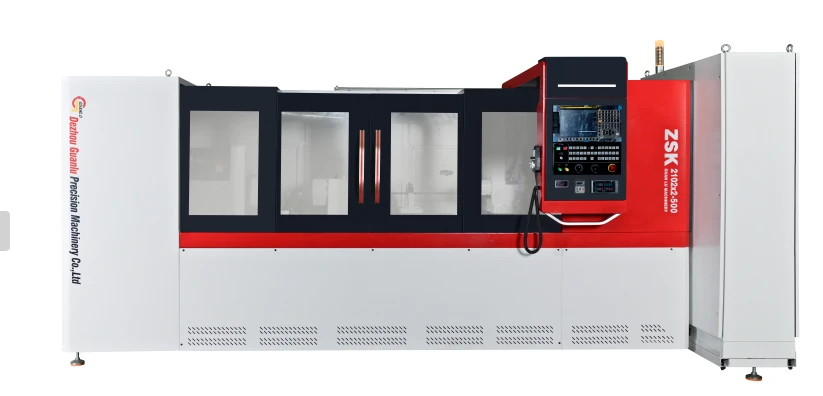

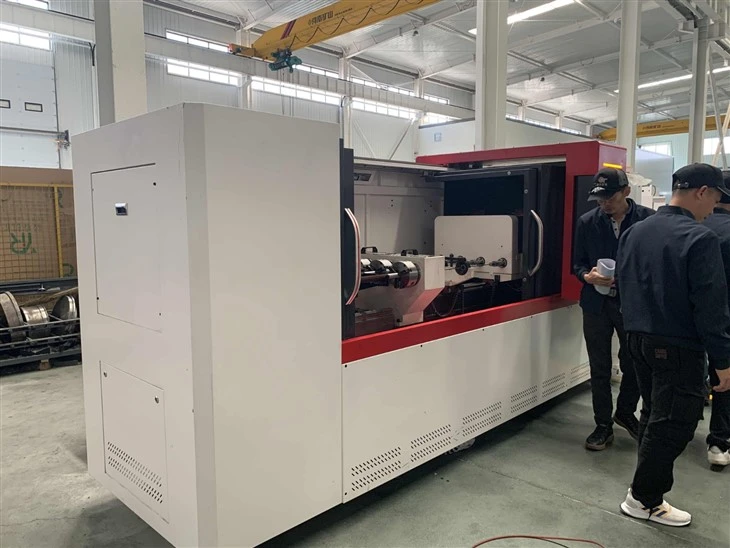

ZSK2102×2×1500 Deep Hole Gun Drilling Machine





1. Machine brief:

1.1 Processing Capacity :

v Drill range: Φ3~Φ20mm

v Workpiece OD range: Φ15~Φ100mm

v Max. Drill depth : 1500mm

v Max. drilling length to diameter ratio: 100:1

1.2 Gun drill drilling method, dual spindle structure, can simultaneously process 2 workpieces, suitable for machining coaxial holes on shaft parts

1.3 During the machining process, the tool and workpiece rotate relative to each other, and the tool feed rate

1.4 Workpiece clamping:

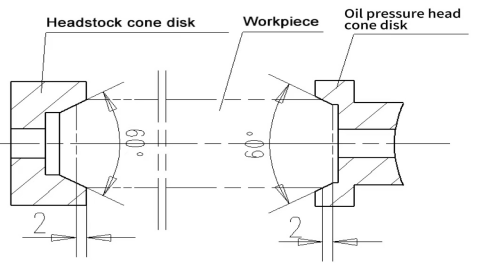

The cone disks are on headstock and oil pressure head respectively, the control system controls the oil pressure head to move axially, use the cone disk and chamfer on both end of workpiece to clamp and position the workpiece automatically .

1.5 The guide rails used on the machine are linear guides

1.6 CNC system: SIEMENS

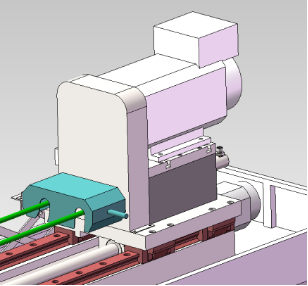

1.7 Drill box:

Using a servo main motor to drive the spindle rotation through a synchronous belt and synchronous pulley, stepless speed regulation can be achieved, with a maximum spindle speed of 5000r/min; Dual spindle structure, one motor drives two spindles to rotate; The front drive of the spindle is conducive to protecting the main motor and facilitating tool change.

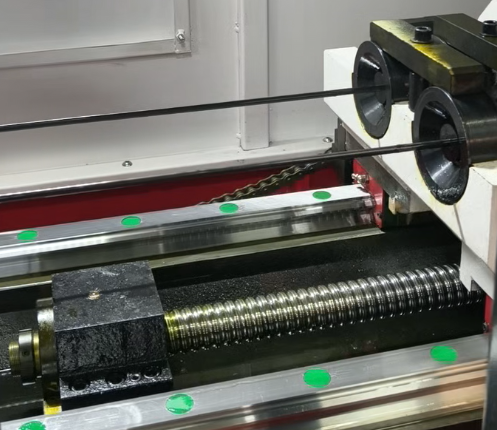

1.8  Cutting tool feed system:

The structure adopts a servo motor to drive the ball screw, and the feed rate of the tool can be infinitely adjusted.

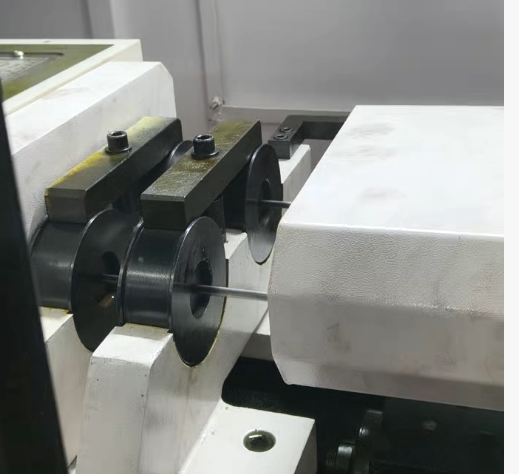

1.9 Drill bar support rest:

Three sets,used to support the drill bar

1.10 Coolant system:

It mainly consists of a high-pressure pump unit, a chain plate chip conveyor, an oil cooler, a filtering device, etc. On the CNC system operation station, assemble the cooling system pressure adjustment knob and flow adjustment panel.

1.11 The basic components such as the machine bed and box are cast with resin sand and undergo two aging treatments. The inclined design of the bed's oil return groove ensures no oil accumulation.

1.12 Guide frame:

Used for tool guidance, chip removal, and supporting the cutter bar. Its front end is equipped with a guide sleeve for tool guidance; Rear end assembly cutter bar support sleeve, used to support the cutter bar.

1.13 Host fully protected.

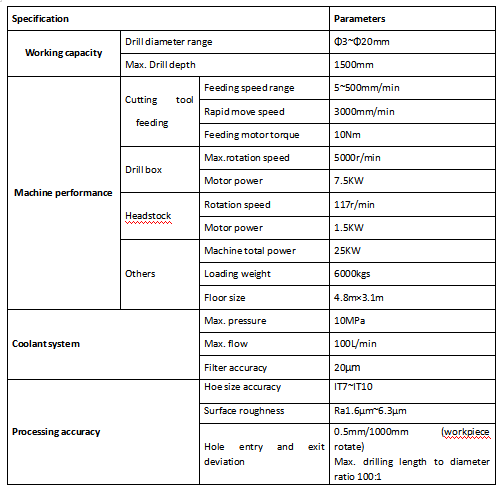

2. Machine main parameters :

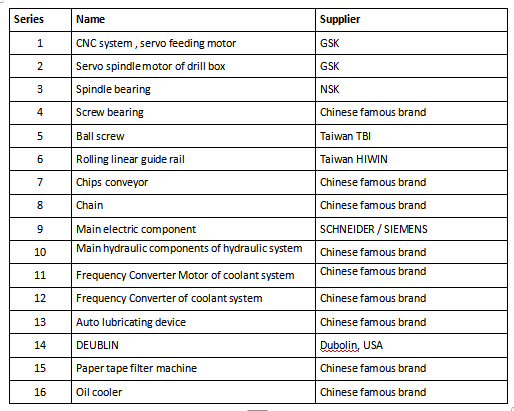

3.Machine main configurations list
