100:1 High Aspect Ratio Deep Hole Reaming Machine ZSK2103×1000 | 6000RPM Max Spindle Speed, High Precision Coaxial Hole Machining

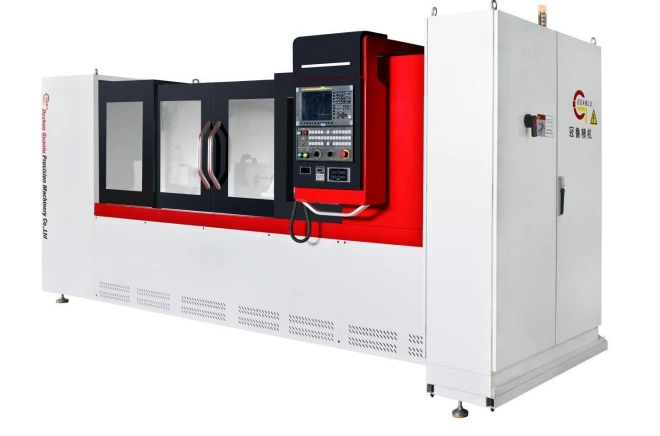

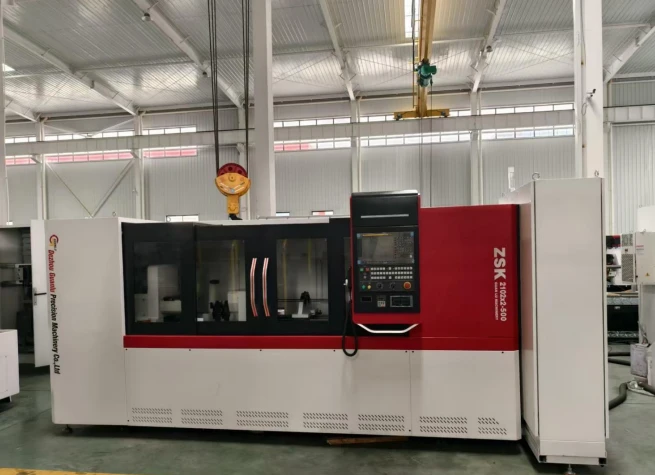

Meet ZSK2103×2×1000mm double spindle CNC deep hole gun drilling & pull reaming machine independently developed by Dezhou Guanlu Precision Machinery! This dual-spindle integrated equipment combines gun drilling and pull reaming in one machine, specially customized for mass processing coaxial tiny deep holes on slender shafts, automotive fuel rails, motor shafts, injector parts and piston accessories. It drastically boosts production efficiency and cuts secondary clamping errors for precision metal manufacturers.

Dual Spindle All-in-One Design, Drilling & Pull Reaming Interchangeable

Equipped with two independent spindles with 140mm spindle spacing, one single machine finishes two core processes without extra equipment.

Drilling range: Φ4–30mm, max processing depth 1000mm, ultra long 100:1 hole length-diameter ratio

Workpiece length limit: 1000mm, perfect for slender shaft batch production The tool and workpiece rotate reversely during cutting, greatly improving hole straightness, roundness and coaxial precision. After gun drilling, simply replace reaming tools and shock absorber accessories to carry out pull reaming, consistent clamping position saves tons of fixture adjustment time.

Stable Hydraulic Clamping + Siemens CNC Intelligent Control

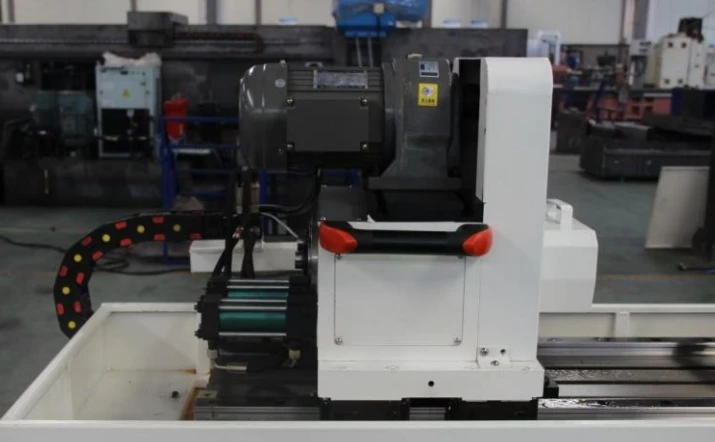

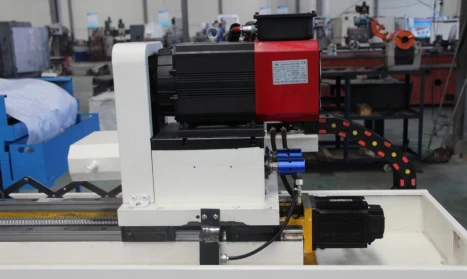

Famous SIEMENS CNC system is standard configuration, fully supports full digital servo linkage, stepless speed regulation for all axes, with intuitive multi-function operation panel displaying real-time cooling pressure, flow and spindle current data. The headstock adopts hydraulic axial locking structure, cone disc positioning automatically clamps workpieces stably, effectively protects the main drive motor from overload damage. Z-axis feed adopts Taiwan precision ball screw servo drive, feed speed 5–500mm/min, rapid traverse up to 4000mm/min for fast cycle time.

High Rigidity Cast Structure & Premium Brand Core Components

Whole machine bed and box body are HT300 high-strength cast iron, processed with double aging treatment to eliminate internal casting stress, long-term stable precision without deformation. Sliding parts adopt Taiwan HIWIN linear guide rails for smooth low-noise movement. All key spare parts adopt international top brands for stable continuous operation:

CNC system & servo feed motor: SIEMENS

Spindle bearing: Japan NSK

Linear guide: Taiwan HIWIN, ball screw: Taiwan famous brand

Hydraulic components: Taiwan Northman, rotary joint: American Deublin

Low voltage electric parts: SIEMENS / Schneider

Powerful High-Pressure Cooling & Full Automatic Chip Removal System

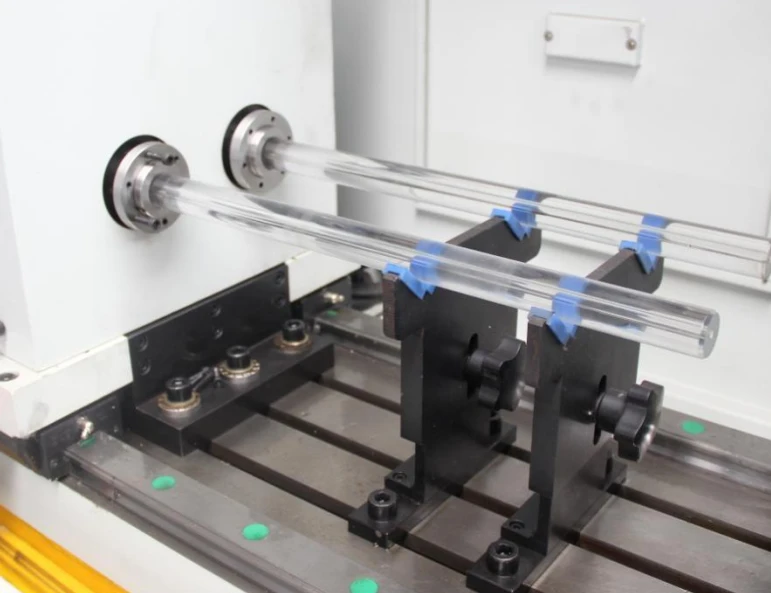

Equipped with independent high-pressure cooling unit, max pressure 10MPa, adjustable flow up to 200L/min, 1000L large capacity oil tank with 20μm precision paper tape filter to keep cutting fluid clean. Matching chain plate automatic chip conveyor + oil chiller separates metal scraps and recycles coolant automatically, greatly reducing manual cleaning work. Three groups of linkage drill bar supports keep stable support at any feed position, eliminate drill rod vibration during deep hole machining.

Humanized Full Safety Protection & Complete Standard Configuration

Comes standard with fully enclosed safety shield to block cutting fluid splash and metal debris, fully compliant with European safety standards. Standard complete set includes drill bar supports, hydraulic station, auto lubrication system, operating manual, auxiliary tools and chip conveyor. Optional upgrade: customized gun drill bits, special cutting oil, other brand CNC systems according to customer workshop demands.

Wide Application For Precision Machinery Parts

Perfect for machining fuel rails, injector shafts, motor shafts, crankshafts, piston rods, mold pin holes and various slender shaft coaxial tiny deep holes, widely used in auto parts, hydraulic components, new energy machinery, mold manufacturing industries.

Comprehensive After-Sales & Commercial Terms

Machine warranty for 1 year under normal operation. Factory pre-trial inspection before shipment, our professional engineers provide on-site installation, commissioning and 3-day free operation training. Payment term: 40% T/T deposit, balance paid after successful factory test run before delivery. Export seaworthy packing with plastic film wrapping and plywood case for small accessories.
