Deep Hole Gun Drilling Machine For Dual Spindle Structure



ZSK2102×1500mm Deep hole gun drilling machine for dual spindle structure



1.Machine brief:

1.1 Processing Capacity :

Drill range: Φ3~Φ20mm

Workpiece OD range: Φ15~Φ100mm

Max. Drill depth : 1500mm

Max. drilling length to diameter ratio: 100:1

1.2 Gun drill drilling method, dual spindle structure, can simultaneously process 2 workpieces, suitable for machining coaxial holes on shaft parts

1.3 During the machining process, the tool and workpiece rotate relative to each other, and the tool feed rate

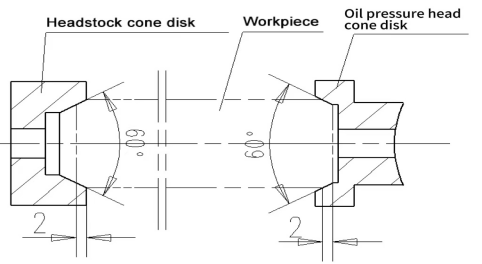

1.4 Workpiece clamping:

The cone disks are on headstock and oil pressure head respectively, the control system controls the oil pressure head to move axially, use the cone disk and chamfer on both end of workpiece to clamp and position the workpiece automatically .

1.5 The guide rails used on the machine are linear guides

1.6 CNC system: SIEMENS

1.7 Drill box:

Using a servo main motor to drive the spindle rotation through a synchronous belt and synchronous pulley, stepless speed regulation can be achieved, with a maximum spindle speed of 5000r/min; Dual spindle structure, one motor drives two spindles to rotate; The front drive of the spindle is conducive to protecting the main motor and facilitating tool change.

1.8 Headstock:

Drive the workpiece to rotate at a constant speed of 117r/min; The spindle can move axially under the control of a hydraulic system, used to tighten or loosen workpieces. The spindle drive is front mounted, which facilitates the loading and unloading of workpieces and helps protect the main motor.

It can be manually moved on the linear guide rail of the workbench, and after being moved into place, it can be manually locked on the workbench by the locking block.



2.Machine main configurations list:

Series	Name	Supplier
1	CNC system , servo feeding motor	SIEMENS
2	Servo spindle motor of drill box	SIEMENS
3	Spindle bearing	NSK
4	Screw bearing	Chinese famous brand
5	Ball screw	Taiwan TBI
6	Rolling linear guide rail	Taiwan HIWIN
7	Chips conveyor	Chinese famous brand
8	Chain	Chinese famous brand
9	Main electric component	SCHNEIDER / SIEMENS
10	Main hydraulic components of hydraulic system	Taiwan NORTHMAN
11	Frequency Converter Motor of coolant system	Chinese famous brand
12	Frequency Converter of coolant system	Chinese famous brand
13	Auto lubricating device	Chinese famous brand
14	DEUBLIN	Dubolin, USA
15	Paper tape filter machine	Chinese famous brand
16	Oil cooler	Tianjin Furuize

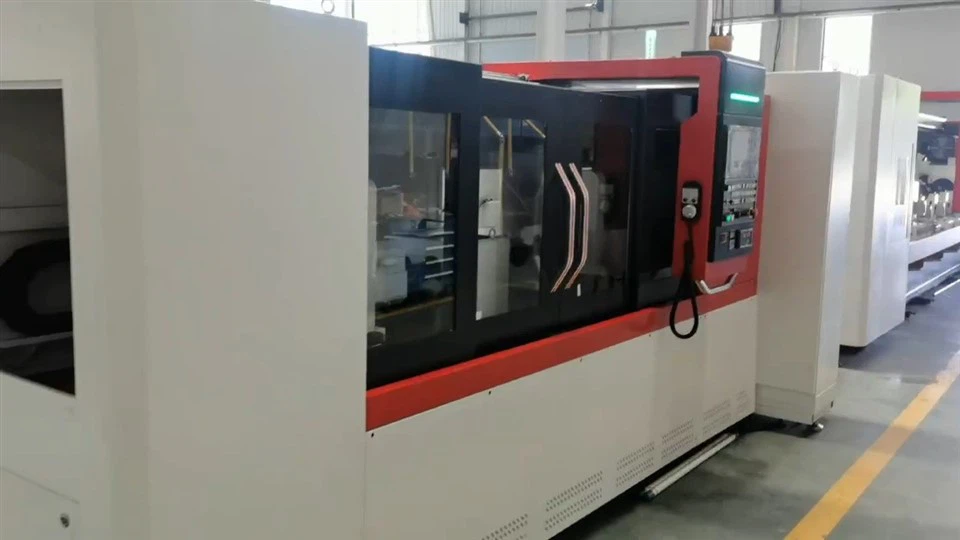

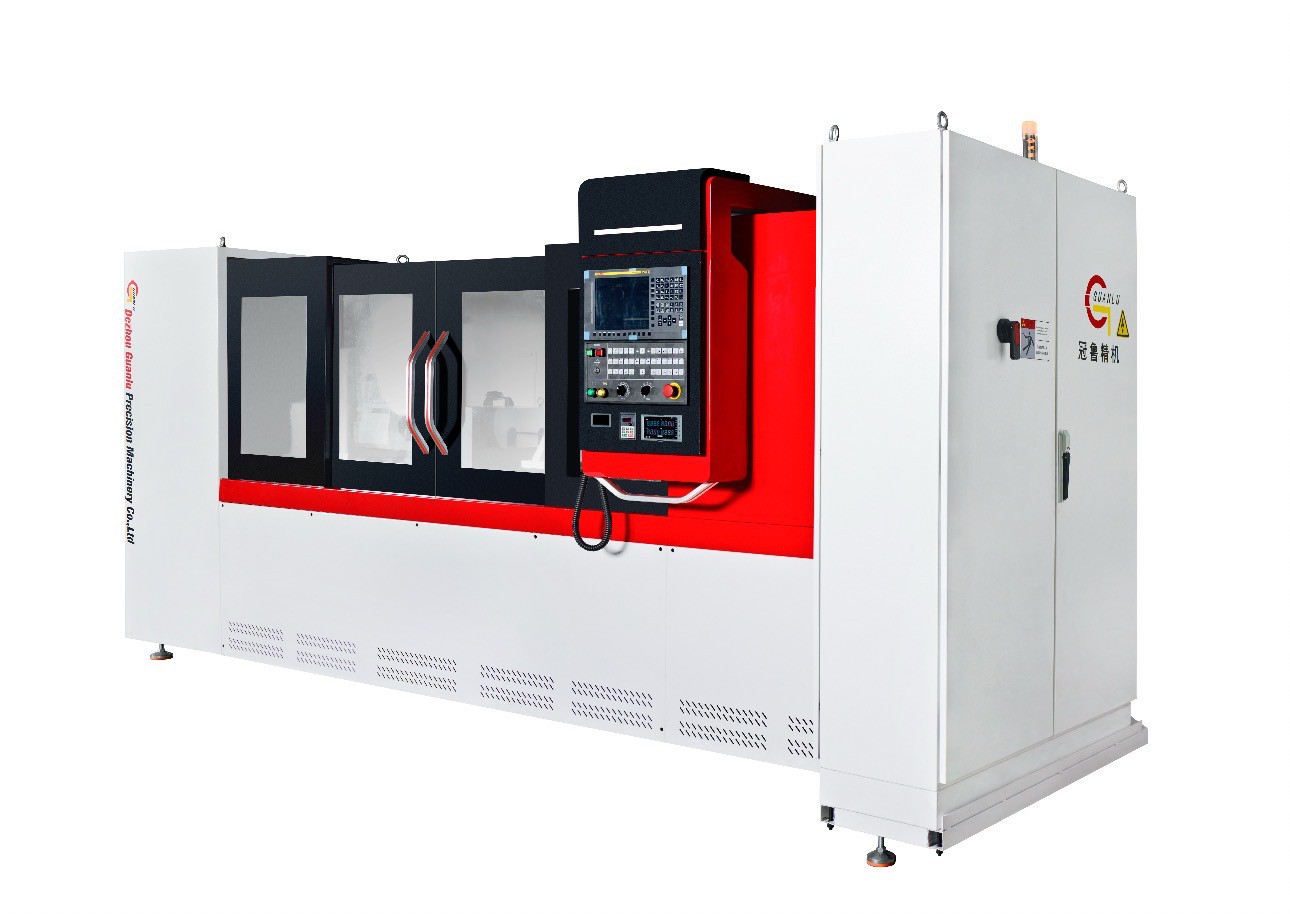

3.Machine photo
