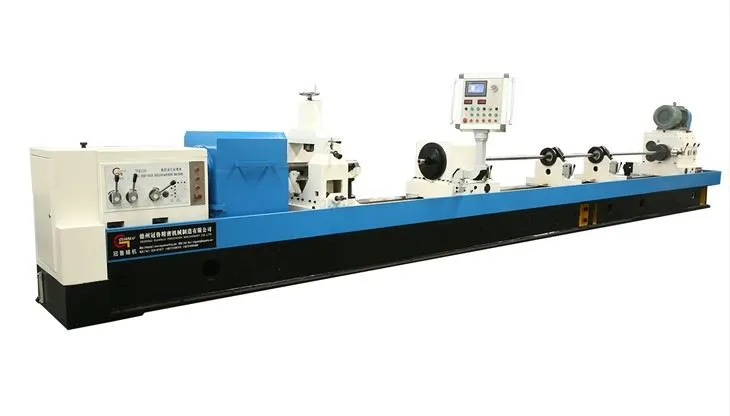

Deep Hole Drilling Machine

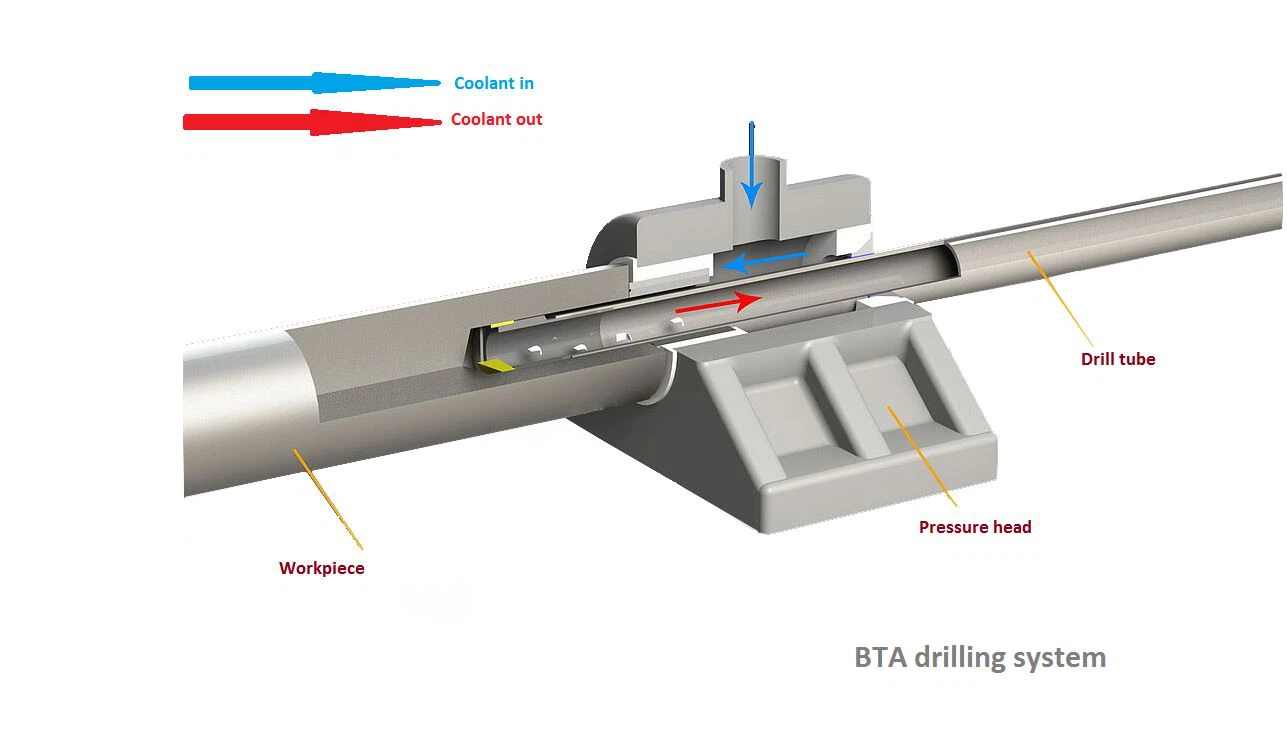

Deep hole drilling machine,it could be called BTA deep hole drilling machine as well, BTA is the chips discharged method. Some jobs are hollow tubes,they need to expand the hole,so it could be called deep hole boring machine,some jobs are big,solid and material is expensive,so the users needs to have the core instead of chips,so they can use deep hole trepanning process,so it could be called deep hole trepanning machine.

BTA deep hole drilling machine functions:

Solid drilling: by drill head,the deep hole drilling machine could drill from the size 30mm to 150mm(depends on different deep hole drilling machine models). It can drill all the metals,such as stainless steel,cast iron,normal steel,copper,Nickel and so on.

Counter boring:by counter boring head,the deep hole boring machine could bore hole from size 30mm to 800mm(depends on different deep hole machine models).

Pull boring:by pull boring head,the deep hole machine could do deep hole pull boring process as well. we have two structures of pull boring,one is normal BTA deep hole drilling and boring machine,it only has the pull boring function. Customer does not use this function often. The other structure is specially designed for deep hole pull boring purpose,this machine is much suitable for using pull boring process. The jobs of the end user are long tubes with thin wall,needs the pull boring process to make the hole straigtness and less hole deviation.

Burnishing: By burnishing head,the jobs that worked by deep hole drill machine could have better inner hole surface roughness,this tool will make surface harder and get the rounghness from Ra0.4-Ra0.8um.

Trepanning:By trepanning head,the deep hole drill machine will get core from the solid rod. When the materials is expensive,job is big diameter,customer will use this process to save energy(could use less electricity power to work) and can reuse the core of the big rod. so the deep hole drilling machine could be called deep hole trepanning machine as well. But if customer only use deep hole trepanning process,we have the deep hole trepanning machine model,which is a bit different structure with the traditional deep hole drilling machine.

Drilling/bore capacity:

Solid drilling: 30mm-150mm(different models)

Boring/counter boring/burnishing: 30mm-800mm(different models)

Trepanning:70mm-800mm(diffferent models)

Deep hole drilling and boring and trepanning max length is 15meters.

Hole to diameter ratio:1:400

Our deephole drilling machines could drill different holes: Through hole,blind hole,concentric hole,eccentric hole and step hole(some needs special drilling fixtures)

Hole finished roughness by different deep hole process:

Solid drilling:IT9-IT11,drilling hole roughness: Ra3.2-Ra6.3um

Rough boring:IT8-IT9,boring hole roughness:Ra3.2-Ra6.3um

Fine boring:IT7-IT9,fine boring hole roughness:Ra1.6um-Ra3.2um

Burnishing ：IT6-IT7,burnishing hole roughness:Ra0.4-Ra0.8um

Dezhou Guanlu BTA deep hole drilling machines available models:

T2120 deephole drilling machine:Max counter boring and pull boring hole capacity is 200mm.

T2125 deep hole drilling machines:Max counter boring and pull boring hole capacity is 250mm

T2135 deep hole drill machine,Max counter boring and pull boring hole capacity is 350mm

T2150 deep hole drilling and boring machine,max boring hole capacity is 500mm.

T2180 deep hole boring machine,max boring capacity is 800mm.

T21100 deep hole boring machine,max boring capaicty is 1000mm.

Deep hole drilling machine application industries:

Hydraulic cylinders: The deep hole drilling machine is widely used in hydraulic cyliner industries.

Automobile industry:cylinder block and cylinder head.

Oil and gas industry: oilfield deep hole drilling machines is the main usage of the deep hole drilling system.

Coal industry: coal industry is the mainly industry which use the deep hole machines.

Military industry: Gun barrels are made by BTA deep hole drilling machines.

We could make BTA deep hole drilling and gun drilling combined machine,which is widely used in more industries. It can drill the hole from 6mm to 100mm. So one machine can use two deep hole drilling systems and get both big hole and small hole.

Dezhou Guanlu deep hole drilling machine mainly structures and parameters:

Machine bed:

The machine bed is made of resin sand and normalised after casting. If the processing depth is more than 1meter, machine bed adopts split structure, assembled with high strength bolts and positioned by cone pin.

Adopt double rectangular sliding guide rail, precision grinding, quenching treatment,the hardness can be HRC48-HRC52 .

Single guide rail width x thickness=160mmX40mm; total width of guide rail is 600mm; The rack which is treated by grinding and quenching is mounted inside of machine bed ,used for cutting tool feeding drive. The machine has large bearing capacity, good rigidity and stable transmission.

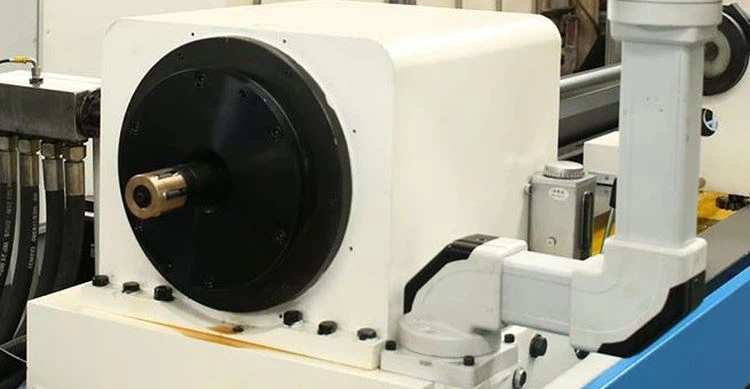

Headstock

Used for driving the workpiece to rotate, fixed on the left end of machine bed; Manual three-gears, speed stepless within each gear; The main motor drives the spindle to rotate after deceleration of synchronous belt, synchronous pulley and gear system.

The gears are machined by precision grinding , gear surface is quenched by high frequency quenching, and the hardness of the tooth surface is HRC48-52, so that the gear can obtain high strength, high hardness, high wear resistance and high fatigue limit, and can withstand relatively large alternating load and shock load.

In order to improve the service life of gears and bearings, lubricating oil is used to circulate lubrication.

Oil pressure head

Used for guiding the cutting tool, supplying cutting oil and supporting the workpiece ; Servo motor drives its axial movement to adapt the workpiece with different length, and to tighten and loosen the workpiece .

Servo motor is used to drive the oil pressure head to tighten or loosen the workpiece, with high precision and rigidity;the whole oil pressure head adopts box structure, with high precision and rigidity.

Oil pressure head support sleeve: Adopt structure of packing match with guiding ring, with better oil sealing effect, avoid the bad phenomenon of drilling bar creeping and being locked.

The guide sleeve and oil pressure head support sleeve should be made according to

customer’s requirements; If the customer don’t have special requirements,(if the customer ordered) will make according to our standard .

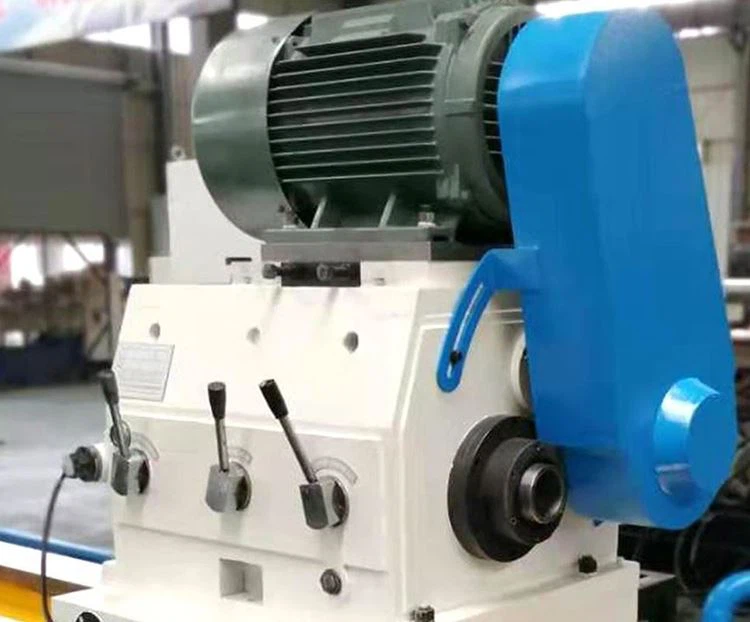

Drill box

Used for driving the cutting tool to rotate; Manual three-gears, speed stepless within each gear ; The cutting tool shank connecting sleeve is mounted in front end of spindle for clamping the cutting tool . The main motor drives the spindle to rotate after deceleration of synchronous belt, synchronous pulley and gear system.

The gears are machined by precision grinding , gear surface is quenched by high frequency quenching, and the hardness of the tooth surface is HRC48-52, so that the gear can obtain high strength, high hardness, high wear resistance and high fatigue limit, and can withstand relatively large alternating load and shock load.

In order to improve the service life of gears and bearings, lubricating oil is used to circulate lubrication.

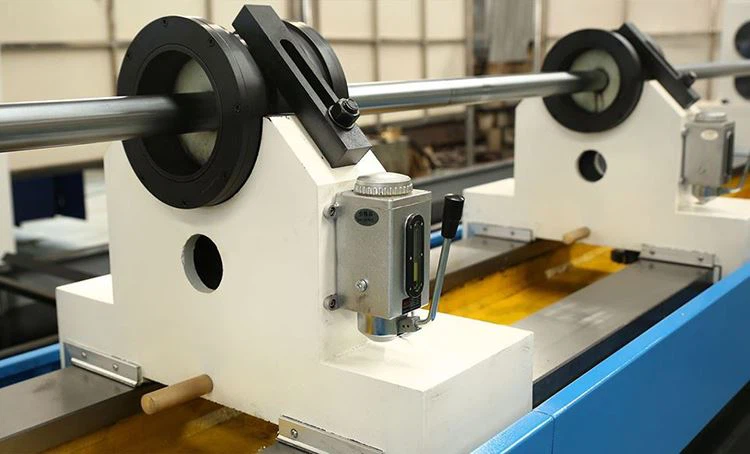

Drill bar support rest

Used for supporting the drill bar ; A high rigidity integral structure is adopted, on which a support sleeve is assembled, which can absorb the shock and vibration produced during machining and so on .

The Hanging pulling mechanism is mounted on drill bar support rest ,after hole finished , the drill bar support rest will be pull back to the original position automatically .

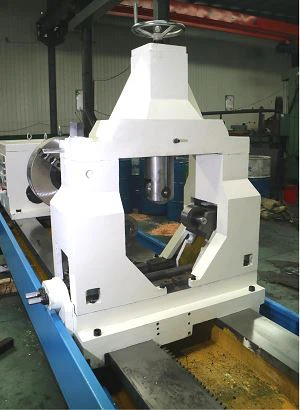

Center Rest

Used for supporting the workpiece; Three-point closed type center rest structure, two rollers below, and one roller on the top; The lateral position of two rollers below is adjusted by screw.

Machine main configurations list :

Machine standard configurations:

Machine bed,headstock,workpiece carrier,oil pressure head,drill bar support rest,drill box ,sliding guide rail ,rack and pinion, coolant system ,SIEMENS-828D control system ,electric cabinet,center rest, ,working lamp, Machine Parallels and anchor bolt, Machine User Manual .

Parts for optional

Cutting tools , auxiliary tools , cutting oil , other CNC system .

The above are the mainly parts of our machine,if you need more details information. please contact us directly.

DZ Guanlu MACHINE advantages compared with other competitors:

Items	Guanlu Brand	Photos

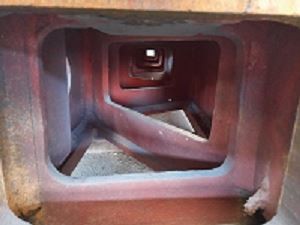

Machine bed	HT300 Precise resin sand iron cast and triangle strengthen ribs box structure,with high stability. About 800kg per meter,much heavier than others.
Oil pressure head	Adopts main spindle built-in structure,which made the machine working much more stable and much higher accuracy
Guide rail	Double flat guide rail,single rail width is 160mm,40mm thickness,which will guarantee heavy loading capacity.
Guide rail lubrication	Guide rail adopts special Japanese brand glue technology to lubricate,through less friction to reduce the abrasion to the guide rails
Machine transmission	Taiwan brand rack and pinion transmission system,Servo motor drive,big driven torque,and no future maintain expense.
Machine spindle	Machine main spindle is forging part,high density,high rigidity. Some competitors use seamless pipe welding tubes. The gears are high frequency quenched
Servo controls for job clamping and tool infeeding	Double servo motor structure,one is for job tighten and oil pressure mechanical movement,the other is for tool infeeding. The clamping force and infeeding speed are set from CNC controller,less labour intensity.
Working zone clean	Oil return slot with skirt type guard to protect oil leaking to the floor,which will keep the working zone clean.
Center rest	Three point center rest supporter,suitable to clamp irregular shape of the job.

DZ Guanlu FACTORY advantages compared with other competitors:

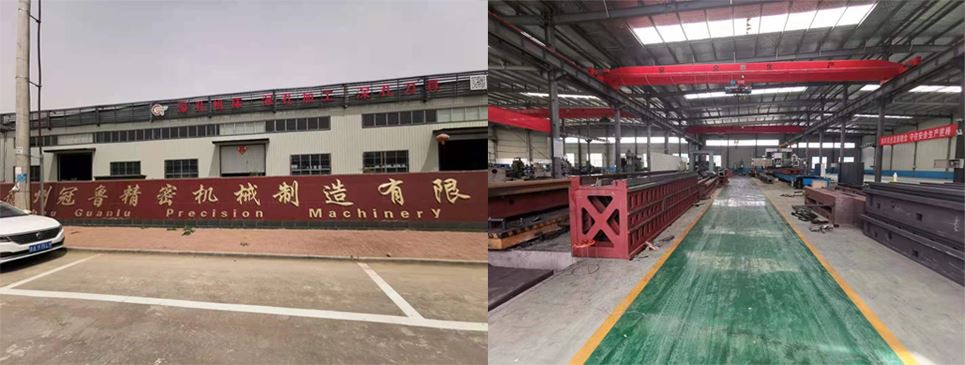

Our city is the production base of deep hole drilling and boring machines. Among these local competitors,our company is the first choice once clients has visited us and saw our deep hole machines. we have the absulately advantages than others.

1. Strong machining facilities. Good quality and good accuracy machines are maufactured by good machining machines and skilled workers. We have Germany brand Heckert guide grinder. The guide of the deep hole machines are the most important part,it decides the accuracy of machines. after ground by our grinder,the surface of the machine bed likes mirror.

2. Most famous technicians. Our company has the most professional technicians. they had worked in this field for more than 15years. They are full of experience,can design the deep hole machines according to customers request.

3. Skilled worker teams. Nowadays,it is not easy to hire workers. Especially skilled workers. But our company has special management system to keep these skilled workers. So all of our machines are assembled by skilled workers.

4. Our BTA deep hole drilling machine has advanced structure. Rack and pinion transmission,which could be stable and will have big force for the machine and no need to replace spare parts after one or two years. Wider guide rail and extremely strong strucuter of machine bed,which will make the machine with big loading capacity and with good ridigity. More advantages will inform you after contact us.

5. Quality inspection system,from machine design,parts purchase,parts machining ,machine assemble,machine test running,machine packing,all the process,we have inspection system to warranty the deep hole machine quality.

6. We are the only deep hole machine manufactuer that can sign quality assurance contract and after sale service contract ,so all customer will rest assured after buy our machines.




Company Brief introduction：

Dezhou Guanlu Precision Machinery Co.,Ltd,is founded in year 2011,we are the most famous factory in my local to manufacture deep hole drilling machines. My city Dezhou is the production base of deep hole machines. Almost 99% BTA deep hole drilling machines are produced in my city.

My factory has our own strongly machining facilites,we know one thing deeply,without good machning facility,you could not be able to manufacture the best quality and best accuracy deep hole machines. So we have Germany brand Heckert guide grinder,chinese most famous planner,VMC,Lathes,box boring machine,milling machine and so on. With these above machining machines,under proper management system,so we could have a fast and stable delivery.

Our deep hole drilling machine has been exported to more than 40 countries and gained good reputation and fame. We improved our quality and structure day by day. Please see our newly designed appearance of our machine below:

FAQ:

Q:Are you real deep hole drilling machines manufacturer?

A:Yes,we are 100% real factory manufacturer,who could provide you reliable and eternal after sale service.  we are the REAL factory directly sale. VIDEO CALLL ANY TIME.

Q:Can you design the deep hole drilling machines according to our job and our special requirements?

A:Yes,we always accept the customs designed orders. Such as combined gundrilling and BTA drilling machine,deep hole boring SRB machine,barrel screw drilling(eight shape hole)machine,quartz glass drilling machine,BTA drilling and honing combined machine,double end drilling machine and so on.

Q:How many countries have you export,after sale service available?

A:We have exported to more than 45 countries until this year. we have agent in Russia,India,France,Canada,Mexcio and Brail....

Q:What is your deep hole drilling machines warranty ?

A:Normally,our deep hole drilling series machines warranty is for one year,if longer warranty request,we could discuss.

Q:What is your machines lead time?

A:For regular deep hole drilling machines,such as T2120,T2125,we have semi machines,which we could build the machine within one month. for the customerized machine,it depends on the design time,about 4month orso.

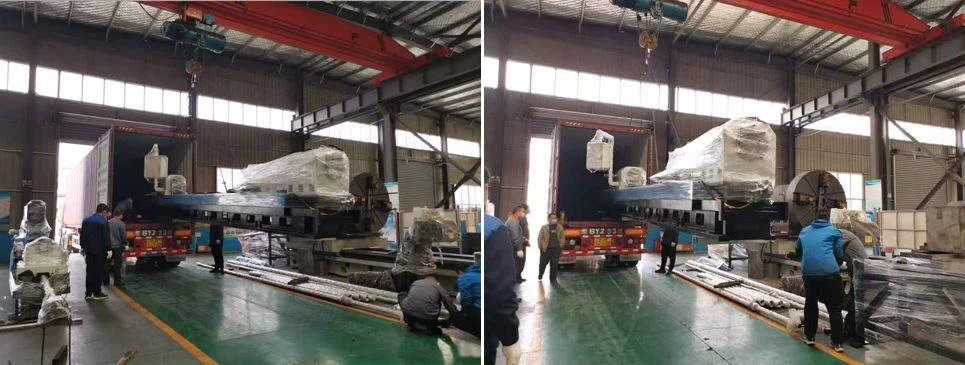

Deephole machine package when shipping:
