Twin Barrel Hole Deep Hole Drilling Machine

Production Introduction Twin barrel hole deep hole drilling machine is specially for the 8 Shaped hole processing with high accuracy and great performance . Drilling range：Φ30～Φ160mm Boring range：Φ40～Φ200mm Honing range：Φ32～Φ200mm Trepaning range：Φ75～Φ200mm Max processing depth：6000mm Max...

Send Inquiry Chat Now

Download

Description

Production Introduction

Twin barrel hole deep hole drilling machine is specially for the 8 Shaped hole processing with high accuracy and great performance .

Drilling range：Φ30～Φ160mm
Boring range：Φ40～Φ200mm
Honing range：Φ32～Φ200mm
Trepaning range：Φ75～Φ200mm
Max processing depth：6000mm
Max workpiece depth：6000mm

Processing procedure:

2.1 Drilling,boring,honing the first hole and reach the requirements

2.2 Workpiece adjusted to the second hole position

2.3 Mounting the drill head,drill the second hole;

2.4 Uninstall the drill head,install the special boring head,use the first hole as guiding,boring the second hole and then honing.

BM0A9358(1)(1)

Drilling: BTA drilling mode, chips discharge from back of the tool and shank(back chips removal)

Boring:push boring,pull boring mode, chips discharge from workpiece inside base hole (front chips removal)

Trepaning：Inner side oil providing,chips remove from outside.

Cutting tool rotate and infeeding: when worked with axial hole,workpiece rotating only.When worked with twin hole,workpiece fixed.

CNC control system: Siemens 840D

CNC axis: ： X1 axis,workpiece horizontally movement.

X2 axis,workpiece horizontally movement

Z1 axis,honing lengthway infeeding movement

Z2 axis, BTA drill box lengthway infeeding movement

Z3axis, Honing head servo expanding;

Z4 axis, Pressure head servo tighting

BM0A9383

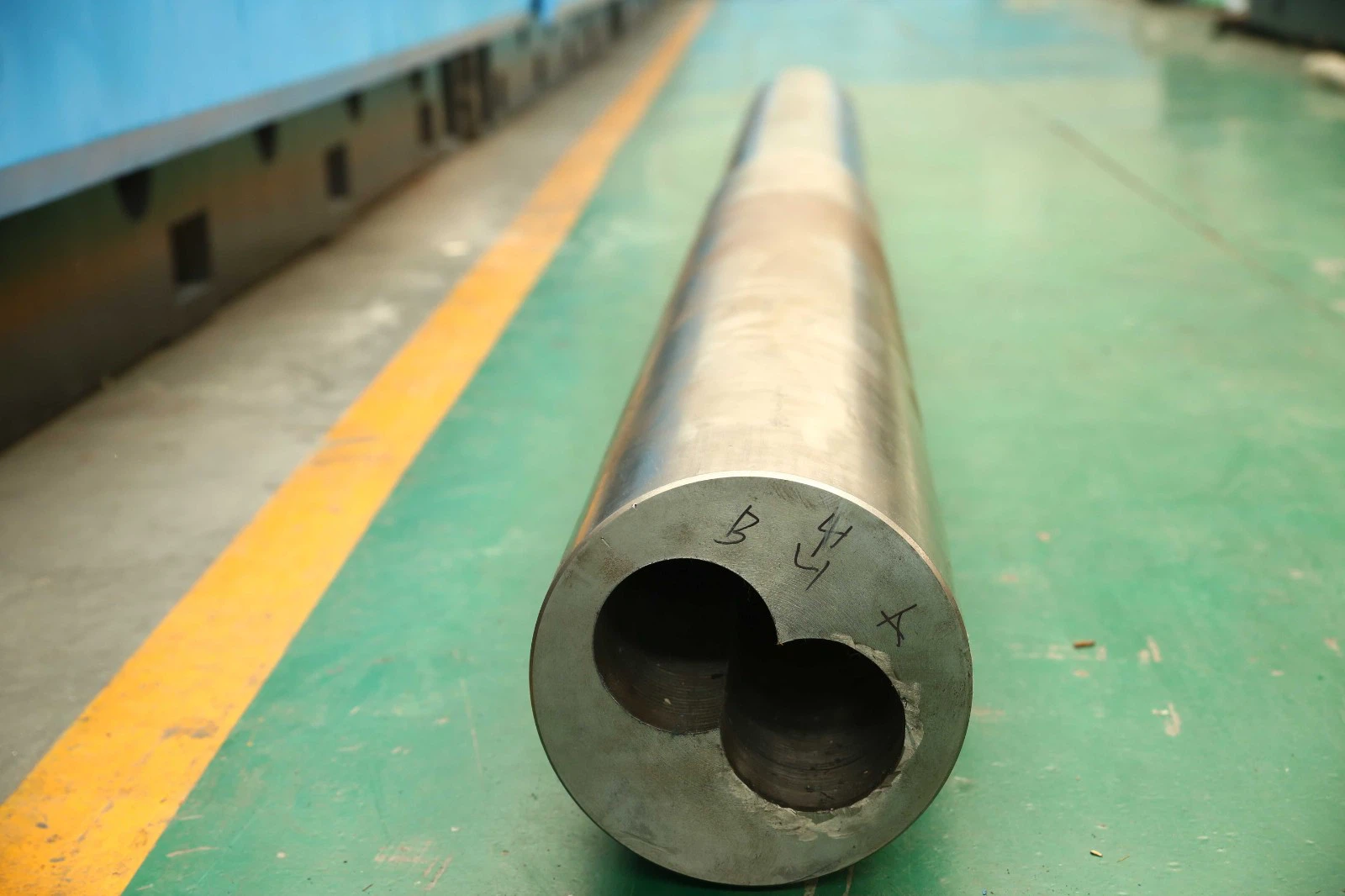

BM0A9384

Machine mainly parameters

Technical specification				Parameters	Remark
Working capacity	Drilling hole diameter range			Φ30～Φ160mm
	Boring hole diameter range			Φ40～Φ200mm
	Honing hole diameter range			Φ32～Φ200mm
	Trepaning hle diameter range			Φ75～Φ200mm
	Max.processing depth			6000mm
	Workpiece Max.length			6000mm
	Workpiece OD range			Φ100～Φ500mm
	Twin hole Max. Hole distance.			100mm
Machine character	Z1 Axis(Honing)		Repeat speed	1～25m/min	Stepless
			Motor torque	15Nm
	Z2 axis(BTAdrilling)		Rapid speed	1m/min
			Infeed speed range	5～500mm/min
			Motor torque	25Nm
			Theoretical maximum thrust	14000kg
	Z3 axis (Honing head expanding )		Motor torque	7Nm
	Z4 axis(Oil pressure head servo motion )		Rapid speed	3m/min
			Motor torque	25Nm
	X1/X2 Axis (centerr rest horizontal motion )		Rapid speed	3m/min
			Motor torque	25Nm
			Traval	100mm
	Drill bar box	Speed range	Lower speed	0～600r/min	Hydraulic 2 shifts speed adjust
			Lower speed	0～1200r/min
		Motor power		58KW	Servo spindle motor
		Motor constant torque Max.speed		1150r/min
		Motor constant power Max.speed		5000r/min
	Headstock	Rotating speed		0～200r/min
		Motor power		25KW	Servo spindle motor
		Motor constant torque Max.speed		1150r/min
		Motor constant power Max.speed		3550r/min
	Honing box	Rotating speed		20～250r/min
		Motor power		13.5KW	Servo spindle motor
	Other	Height of spindle center to the slide guide surface		550mm
		Slide guide rail span		600mm
		Machine floor space		17.5m×3.5m
		Machine weight		40ton
		Machine total power		150KW
		Voltage/Frequency		400V/60HZ
Coolant system	Drill,boring,trepaning	Max. pressure		2.5MPa	adjustable
		Max. flow		500L/min	adjustable
	Honing	Flow		100 L/min
