Deep Hole Drilling And Trepanning Machine

Name: China Customized Deep Hole Drilling And Trepanning Machine Suppliers Manufacturers - Guanlu
Brand: Guanlu
SKU: 288961573

Machine Functions Drilling: BTA drilling method. Cutting oil is supplied to the tool through the gap between the oil pressure head, tool holder, and hole wall, and chips are discharged through the tool holder bore. Trepanning: External oil supply, internal chip discharge. Cutting oil is supplied to the tool through the gap between the oil pressure head, tool holder, and hole wall, and is discharged through the inner hole of the tool holder with chips.

Send Inquiry Chat Now

Description

Machine Brief

1. Machine Tool Processing Range

Drilling Range: Φ50–Φ100mm(boring to 200mm)

Trepanning Range: Φ100–Φ180mm

Workpiece Length: 2000mm

Workpiece Outer Diameter Range: Φ100–Φ250mm

Processing Depth: 2000mm

2. Machine Functions

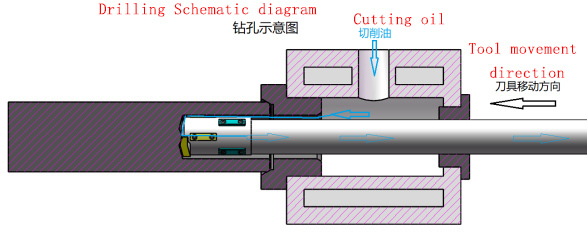

Drilling: BTA drilling method. Cutting oil is supplied to the tool through the gap between the oil pressure head, tool holder, and hole wall, and chips are discharged through the tool holder bore.

product-1-1

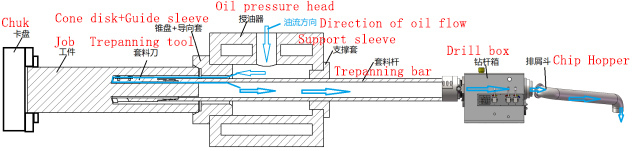

Trepanning: External oil supply, internal chip discharge. Cutting oil is supplied to the tool through the gap between the oil pressure head, tool holder, and hole wall, and is discharged through the inner hole of the tool holder with chips.

product-1-1

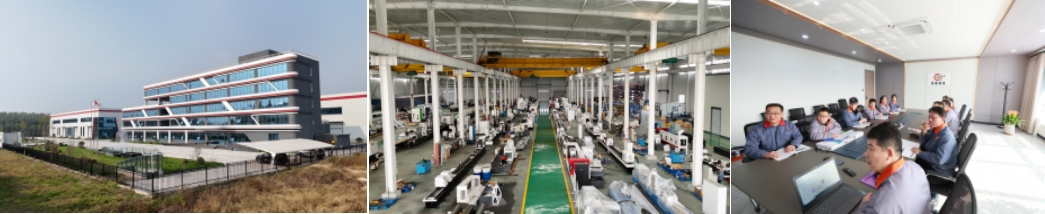

Company Profile

Guanlu Precision Machinery Manufacturing Co., Ltd.

Established in 2011, Guanlu Precision is a supplier specializing in the manufacturing of high-end precision machinery equipment and solutions. We are committed to providing global industrial clients with high-performance and highly reliable products.

Core Strengths:

1. Strong Manufacturing Capabilities

Equipped with over 40 advanced machining devices, including a German 12-meter Heckert guideway grinder, a Japanese 10-meter SNK 5-face milling machine, and large-scale gantry planers, enabling us to handle large, complex, and precision components.

2. Strict Quality Assurance System

Fully complies with the ISO9001 Quality Management System.

Implements comprehensive quality control throughout the entire process: from professional R&D and a stable supply chain to inspection at each production stage, culminating in a final 72-hour continuous operational test before shipment. This ensures every machine meets specifications 100% and delivers stable, reliable performance.

3. Professional Team and Service

Possesses a professional R&D and design team along with a skilled assembly team.

Provides customized solutions from design to production to meet the needs of various industries.

Primary Application Fields:
Aerospace, Automotive Manufacturing, Medical Devices, and High-End Industrial Equipment.

We build upon a foundation of exceptional quality and integrity in service, and we look forward to becoming your reliable partner. Please feel free to contact us for more information or to discuss custom solutions.

product-1-1
