CNC Deep Bore Drilling Machine

Deep bore drilling machine :



2.1 Machine processing capacity :

Drilling diameter range : Φ30~Φ160mm

Workpiece OD range : Φ100~Φ400mm

Workpiece length range :2000~6500mm

Workpiece weight: 700~12000kgs

Drill depth :2500mm



2.2 Machine functions :

Drilling hole : BTA drilling method, the cutting oil is supplied to the cutting tool through the oil pressure head,space between drill bar and hole wall, and discharge with the cutting chips backward through the drill bar .

Machine processing mode : Workpiece rotate, cutting tool rotate and feed .



2.3.1 Main parts of machine

Machine bed, Headstock ,oil pressure head, Drill bar support test ,Drill box , sliding guide rail , Rack and pinion, coolant system , control system , electric cabinet, Workpiece carrier etc. .



2.3.2 Workpiece clamping

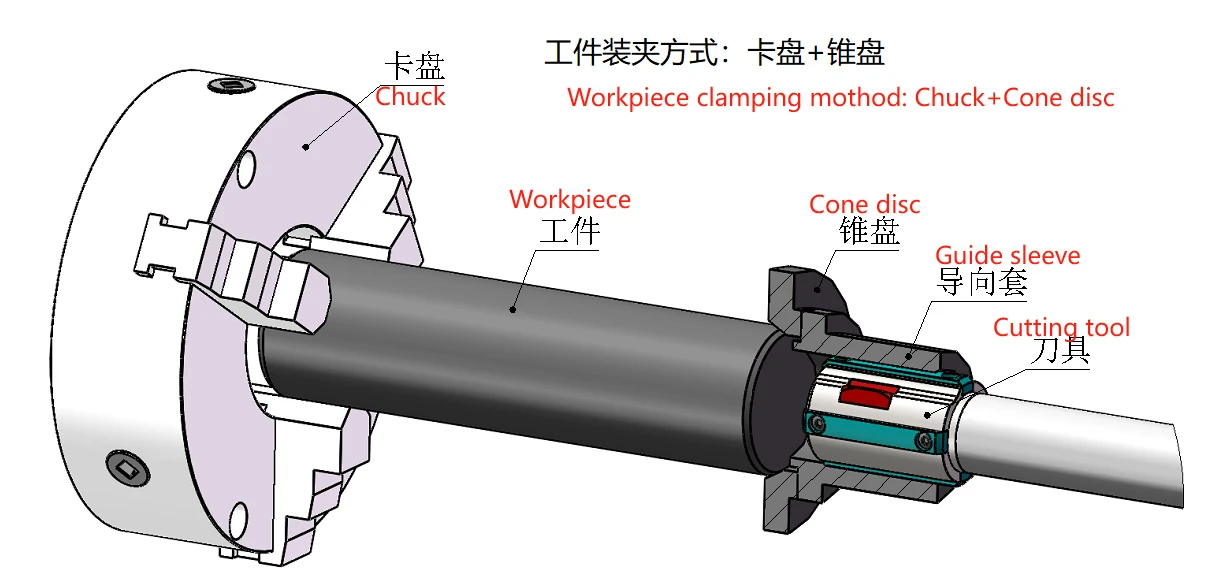

The manual three-jaw chuck on headstock clamps one end of workpiece, cone disc on oil pressure head tighten another end automatically, the center rest support workpiece .



Machine main parameters :







Specification			Parameters	Remark
Working capacity	Drill diameter range		Φ30~Φ160mm
	Workpiece OD range		Φ100~Φ400mm
	Workpiece length range		2000~6500mm
	Max. Drill depth		2500mm
Machine performance	Z axis (Drill box feed)	Feed speed range	5~1000mm/min
		Rapid move speed	2000mm/min
		Servo motor torque/power	27Nm/4.3KW
		Max. Feed force	60KN
	X axis (Oil pressure head movement)	Rapid move speed	2000mm/min
		Servo motor torque	27Nm/4.3KW
		Max. tightening force	60KN
	Drill box	Rotation speed range	30~240r/min
		Motor power	45KW	Servo spindle motor
		Gears	Manual 3-gears, stepless within gear
	Headstock	Rotation speed range	30~240r/min
		Motor power	45KW	Servo spindle motor
		Gears	Manual 3-gears, stepless within gear
		Chuck OD	Φ400mm	Manual three-jaw
		Spindle taper bore	Metric 140
	Others	Machine total power	122KW
		Center rest clamping range	Φ100～Φ400mm
		Loading capacity	12 Tons
		Floor size	16m×3.3m
		Max. drill bar diameter	Φ130mm
		Guide rail width	690mm
		Height from spindle center to guide rail upper surface	400mm
Coolant system		Max. pressure	2.5MPa
		Max. flow	400L/min
		Oil tank volume	4700L
