ZSK2104X1000mmX2 Double Spindle Gundrilling Machine

Machine brief
1 Processing Capacity
Drill diameter range: Φ6~Φ40mm
Max. Drill depth :1000mm
Max. Hole length-diameter ratio : 100:1
Workpiece OD range: Φ15~Φ100mm

2 Gun drilling processing method
Double spindle structure, can process 2 workpieces at the same time, applicable to the processing of the same axis hole on the shaft parts;

3 The tool and workpiece rotate relative to each other during machining and the tool feeds.

Model		ZSK2104X1000mmX2
Main parameter	Drilling diameter range	Φ6~Φ40mm
	Max. Drill depth	1000mm
	Max. Workpiece length	1000mm
	Spindle quantity	2
Drill box	Spindle motor power	22KW
	Max. Rotary speed	4000r/min
Headstock	Power	3.7 KW
	Rotary speed	60r/min
Tool feeding	Feeding speed range	5~500mm/min
	Rapid move speed	4m/min
	Feeding motor torque	10Nm
Coolant system	Max. Flow	100L/minx2
	Max. Pressure	10MPa
	Filter accuracy	20μm
Processing accuracy	Hoe size accuracy	IT7~IT10
	Surface roughness	Ra1.6μm~6.3μm
	Hole import/export center deviation	Workpiece rotation,0.5mm/1000mm Workpiece not rotation , 1mm/1000mm Hole inlet and outlet center deviation (maximum L/D ratio ≤ 100:1):
Others	Machine general power (about)	42kw
	Floor size	4.8m x 3.1m
	Machine weight(about)	6T

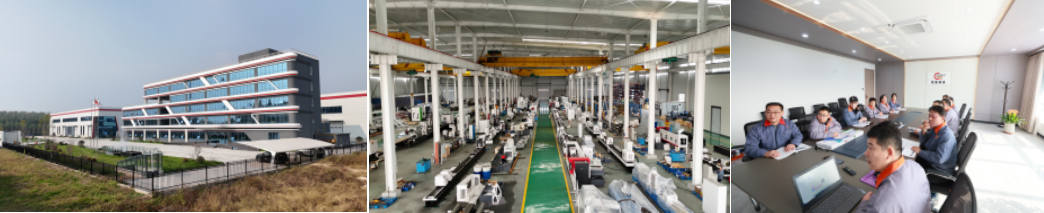

Company Profile

Guanlu Precision Machinery Manufacturing Co., Ltd.

Established in 2011, Guanlu Precision is a supplier specializing in the manufacturing of high-end precision machinery equipment and solutions. We are committed to providing global industrial clients with high-performance and highly reliable products.

Core Strengths:

1. Strong Manufacturing Capabilities

Equipped with over 40 advanced machining devices, including a German 12-meter Heckert guideway grinder, a Japanese 10-meter SNK 5-face milling machine, and large-scale gantry planers, enabling us to handle large, complex, and precision components.

2. Strict Quality Assurance System

Fully complies with the ISO9001 Quality Management System.

Implements comprehensive quality control throughout the entire process: from professional R&D and a stable supply chain to inspection at each production stage, culminating in a final 72-hour continuous operational test before shipment. This ensures every machine meets specifications 100% and delivers stable, reliable performance.

3. Professional Team and Service

Possesses a professional R&D and design team along with a skilled assembly team.

Provides customized solutions from design to production to meet the needs of various industries.

Primary Application Fields:
Aerospace, Automotive Manufacturing, Medical Devices, and High-End Industrial Equipment.

We build upon a foundation of exceptional quality and integrity in service, and we look forward to becoming your reliable partner. Please feel free to contact us for more information or to discuss custom solutions.
