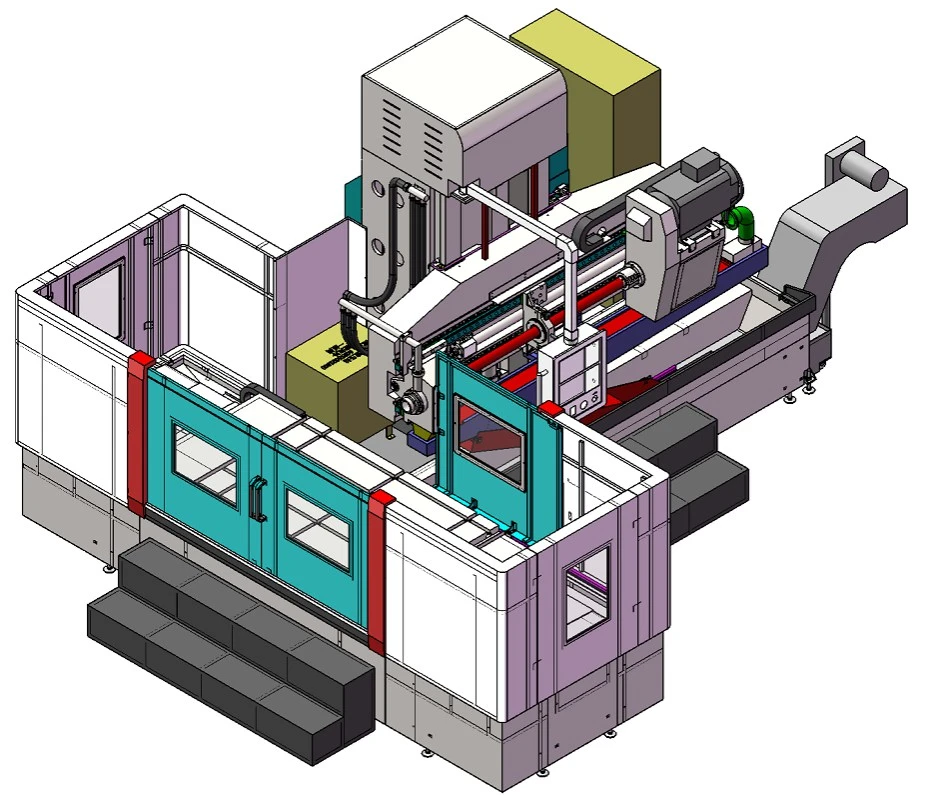

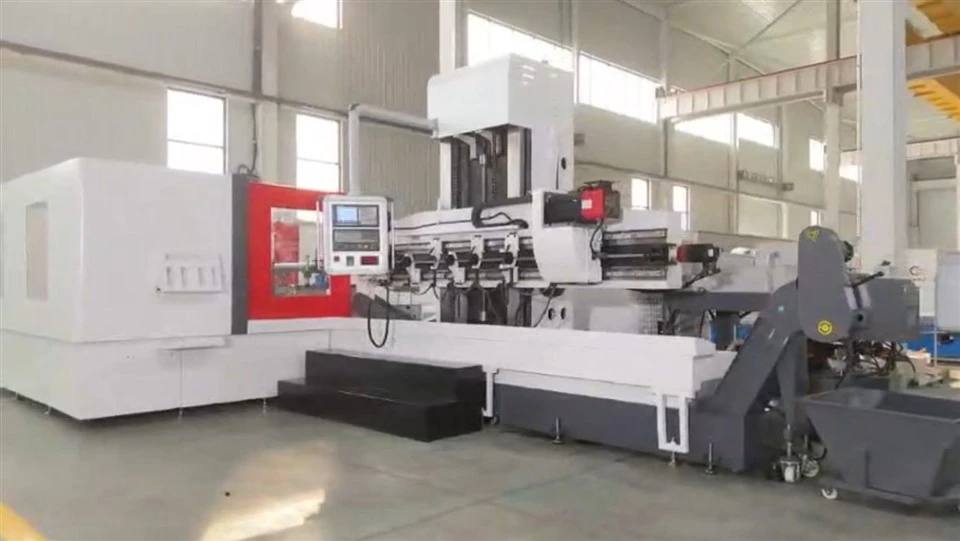

ZSK2310F CNC Deep Hole Drilling Machine

Combined Gun Drilling & BTA Deep Hole Drilling

The ZSK2310F CNC Deep Hole Drilling Machine is a multifunctional CNC deep hole drilling machine designed for deep hole machining up to 1,000 mm. It combines Gun Drilling and BTA deep hole drilling technologies in one machine, providing a flexible solution for different hole diameters and machining requirements.

Gun drilling diameter: Ø10–Ø30 mm

BTA drilling diameter: Ø25–Ø100 mm

Maximum drilling depth: 1,000 mm

CNC system: GSK

Maximum spindle speed: 2,000 rpm

Spindle motor: 45 kW servo motor

Maximum coolant flow: 300 L/min

Machine weight: Approx. 25 tons

Key Features

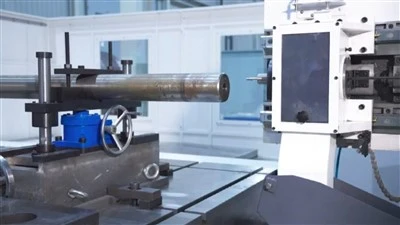

1. Gun Drilling & BTA Drilling

This deep hole drilling machine supports both gun drilling with external chip removal and BTA drilling with internal chip removal. Both drilling methods share one spindle, allowing the machine to handle a wider range of deep hole drilling applications.

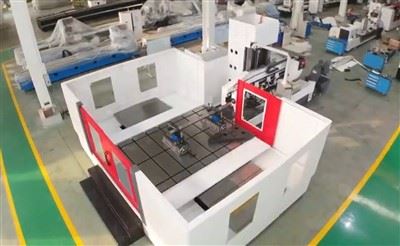

2. CNC Three-Axis Control

The ZSK2310F features CNC-controlled X, Y and Z axes for flexible workpiece positioning and tool feeding.

X-axis travel: 1,500 mm

Y-axis travel: 1,000 mm

Z-axis drilling depth: 1,000 mm

Z-axis feed speed: 5–500 mm/min

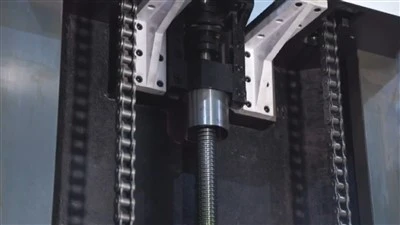

Heavy-duty guideways and ball screw drive

Hydraulic locking for improved machining stability

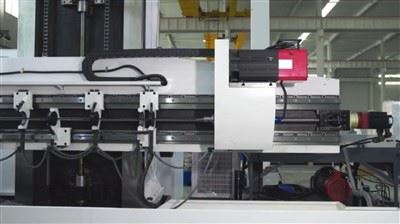

3. High-Power Spindle

The 45 kW servo spindle motor provides high power for stable deep hole drilling. The spindle speed is steplessly adjustable up to 2,000 rpm, and the same spindle is used for both Gun Drilling and BTA drilling.

4. High-Pressure Coolant & Chip Removal

The CNC deep hole drilling machine is equipped with a complete coolant filtration and chip removal system.

Gun drilling pressure: up to 8 MPa

BTA drilling pressure: up to 4 MPa

Maximum coolant flow: 300 L/min

Chip conveyor and filtration system

The high-pressure coolant system helps provide effective cooling and chip removal during deep hole drilling.

Main Specifications

Item	Specification
Machine Type	CNC Deep Hole Drilling Machine
Drilling Methods	Gun Drilling / BTA Drilling
Gun Drilling	Ø10–Ø30 mm
BTA Drilling	Ø25–Ø100 mm
Max. Drilling Depth	1,000 mm
X-axis Travel	1,500 mm
Y-axis Travel	1,000 mm
Z-axis Feed	5–500 mm/min
Max. Spindle Speed	2,000 rpm
Spindle Motor	45 kW
Max. Coolant Flow	300 L/min
Approx. Machine Weight	25 tons
Machine Footprint	7 × 4.9 m

Machining Accuracy

Hole deviation: 0.1 mm / 100 mm

Hole diameter accuracy: IT8–IT10

Drilled hole roughness: Ra 3.2–12.5 μm

Why Choose ZSK2310F?

The ZSK2310F is a professional CNC deep hole drilling machine combining Gun Drilling and BTA drilling in one machine. With CNC three-axis control, a 45 kW servo spindle, high-pressure coolant system and hydraulic clamping, it provides a flexible solution for precision deep hole drilling.

Looking for a CNC deep hole drilling machine, BTA deep hole drilling machine or gun drilling machine? Contact us for technical specifications and a customized deep hole drilling solution.
