Combined Skiving-Burnishing Machine

Name: China Customized Combined Skiving-Burnishing Machine Suppliers Manufacturers - Guanlu
Brand: Guanlu
SKU: 309366207

TGK30S CNC deep hole skiving and roller burnishing machine is an ideal machine for processing deep hole parts. It integrates boring, skiving and burnishing, and is a machine specially designed for compound processing. This machine is suitable for processing various hydraulic cylinders, spindle holes, cylinder holes, and cooling holes. The accuracy of the hole size of the processed parts can reach IT7~IT9, and the surface roughness of the inner hole: Ra0.1~0.8μm.

Send Inquiry Chat Now

Description

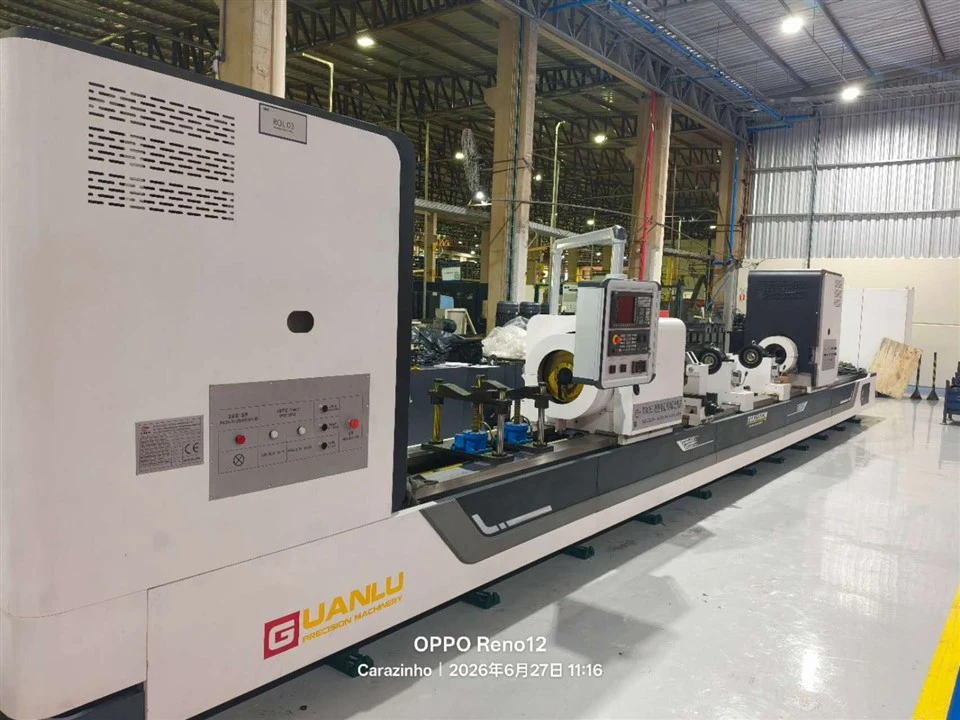

Combined Skiving-Burnishing Machine

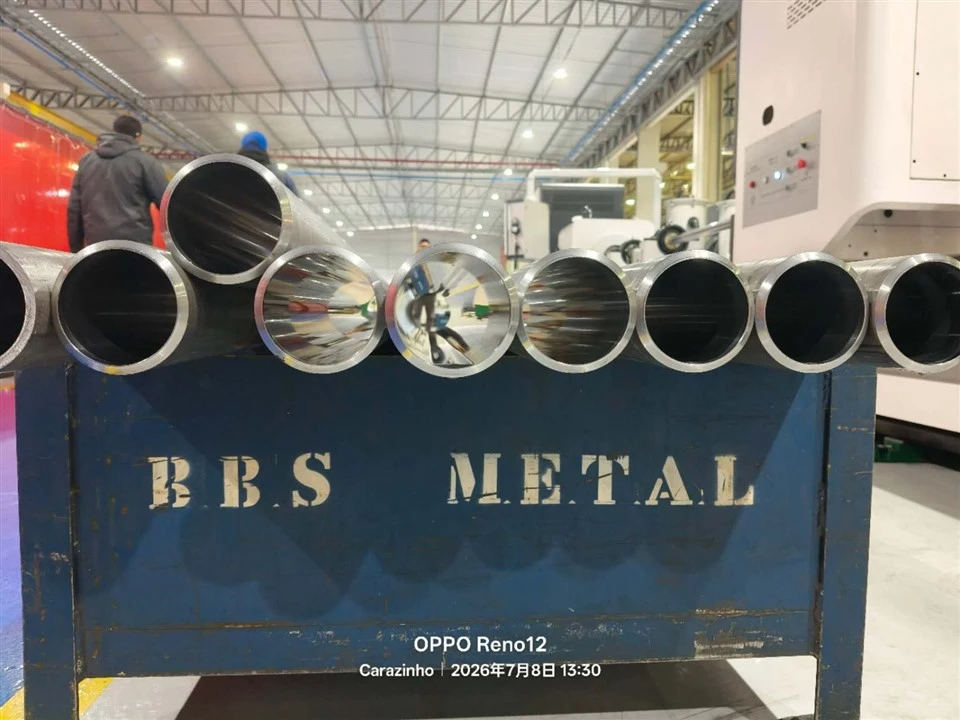

Deep Hole Drilling Skiving Roller Burnishing Machine For Hydraulic Cylinder Tube Machining product-540-639

This Combined Skiving-Burnishing Machine has three working modes:

①Workpiece and cutting tool rotate in opposite directions, cutting tool feed ;

②Workpiece rotate, cutting tool fixed and feed ;

③Workpiece fixed, cutting tool rotate and feed . When rough machining,use the rough boring head to do push boring processing , when fine machining ,use skiving and burnishing(hydraulic or pneumatic ) combined cutting tool to process,which effectively solves the problem of serious deviation after rough machining of hot-rolled steel pipes and poor straightness after fine processing of cold-drawn steel pipes .

Chips removal method :

Boring hole : Adopt push boring mode, oil pressure head supply the cutting oil, discharge the cutting chips forward through the finished hole on workpiece .

Skiving hole : Skiving and burnishing is integrated ,oil pressure head supply the cutting oil, discharge the cutting chips forward through workpiece basic hole .

Rough boring +skiving+burnishing hole : Oil pressure head supply the cutting oil, discharge the cutting chips forward through the finished hole on workpiece .

Burnishing hole: Rolling the hole with burnishing head .

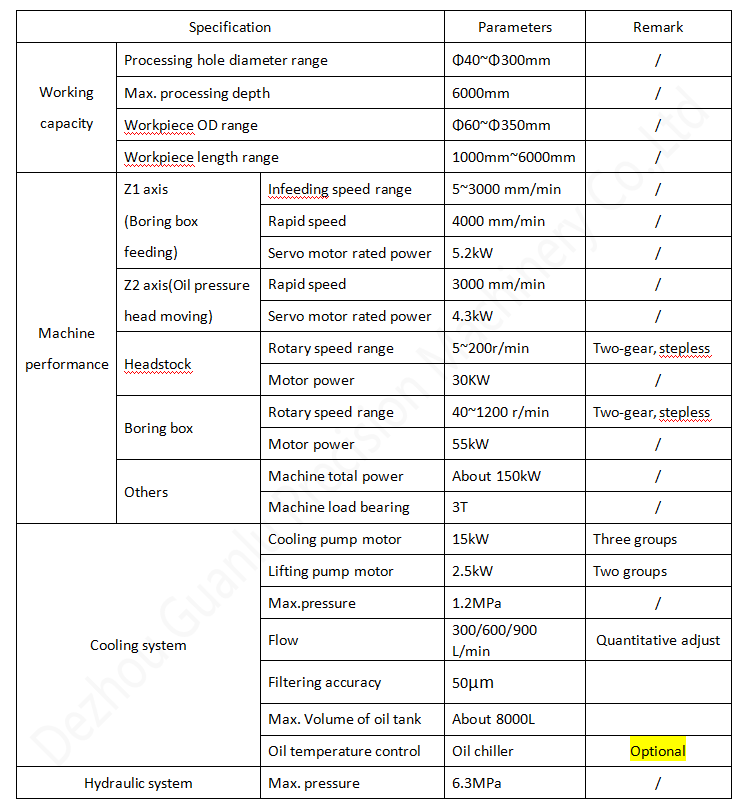

Technical parameters of this combined skiving-burnishing machine :

product-734-806
