2M2103×1000 Small Hole CNC Honing Machine

Product Description

The 2M2103×1000 Small Hole CNC Honing Machine is specially designed for precision honing of small-diameter deep holes. It is suitable for bore diameters from Ø4mm to Ø25mm and honing depths up to 1000mm.

The machine can perform both full-length honing and local honing, effectively improving bore accuracy, cylindricity, straightness, and surface finish. It is widely used for hydraulic parts, precision tubes, automotive components, aerospace parts, and other precision bore applications.

Technical Specifications

• Model: 2M2103×1000
• Honing Diameter Range: Ø4–25 mm
• Maximum Honing Depth: 1000 mm
• Maximum Workpiece Length: 1000 mm
• CNC Axes: 2 Axes (Z1, Z2)
• Control System: DELTA PLC
• Tool Expansion: Servo Motor Control
• Coolant Supply: Internal & External

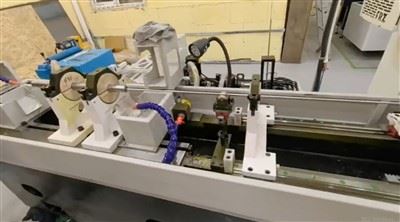

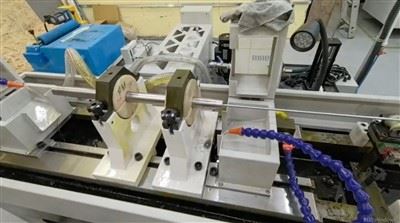

• Workpiece Support: 2 Sets V-Type Supports

Main Features

Small Bore Deep Hole Honing

Suitable for precision honing of small diameter and deep hole components.

Servo-Controlled Honing Head

The honing stone expansion is controlled by a servo motor, enabling:

• Constant pressure honing
• Precise feed control
• Stable machining accuracy

High-Rigidity Machine Structure

• High-quality cast iron bed
• Double aging treatment
• Precision linear guideways
• Rack and pinion transmission

Variable Spindle Speed

• Servo spindle drive
• Stepless speed adjustment
• High torque output
• Smooth and stable operation

Advanced Coolant Filtration System

• Internal coolant supply
• External coolant spraying
• Paper band filter
• Magnetic separator

Automatic Lubrication

Automatic lubrication for guideways, sliders, and transmission components ensures long-term machine reliability.

Applications

• Hydraulic Valve Bodies
• Hydraulic Components
• Precision Tubes
• Automotive Parts
• Fuel Injection Components
• Pneumatic Components
• Aerospace Parts
• Mold Components
• Small Diameter Deep Hole Parts
