CNC Deep Hole Gun Drilling Machine With Dual Spindle

ZSK2102x2x1500mm CNC Deep Hole Gun Drilling Machine


1. Machine brief:

1.1 Processing Capacity :

v Drill range: Φ3~Φ20mm

v Workpiece OD range: Φ15~Φ100mm

v Max. Drill depth : 1500mm

v Max. drilling length to diameter ratio: 100:1



1.2 Gun drill drilling method, dual spindle structure, can simultaneously process 2 workpieces, suitable for machining coaxial holes on shaft parts



1.3 During the machining process, the tool and workpiece rotate relative to each other, and the tool feed rate



1.4 Workpiece clamping:

The cone disks are on headstock and oil pressure head respectively, the control system controls the oil pressure head to move axially, use the cone disk and chamfer on both end of workpiece to clamp and position the workpiece automatically .

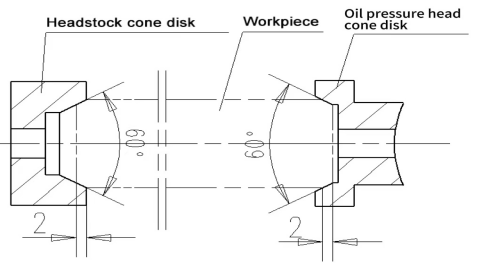

Workpiece clamping sketch



1.5 The guide rails used on the machine are linear guides



1.6 CNC system: GSK



1.7 Headstock:

Drive the workpiece to rotate at a constant speed of 117r/min; The spindle can move axially under the control of a hydraulic system, used to tighten or loosen workpieces. The spindle drive is front mounted, which facilitates the loading and unloading of workpieces and helps protect the main motor.

It can be manually moved on the linear guide rail of the workbench, and after being moved into place, it can be manually locked on the workbench by the locking block.

1.8 Cutting tool feed system:

The structure adopts a servo motor to drive the ball screw, and the feed rate of the tool can be infinitely adjusted.



1.9 Drill bar support rest:

Three sets,used to support the drill bar



1.10 Coolant system:

It mainly consists of a high-pressure pump unit, a chain plate chip conveyor, an oil cooler, a filtering device, etc. On the CNC system operation station, assemble the cooling system pressure adjustment knob and flow adjustment panel.



1.11 The basic components such as the machine bed and box are cast with resin sand and undergo two aging treatments. The inclined design of the bed's oil return groove ensures no oil accumulation.



1.12 Guide frame:

Used for tool guidance, chip removal, and supporting the cutter bar. Its front end is equipped with a guide sleeve for tool guidance; Rear end assembly cutter bar support sleeve, used to support the cutter bar.





2.Machine standard parts :

Chain plate chip conveyor, automatic paper bag filter, oil cooler, tool oil supply pump group, CNC system and its servo feed motor, servo main motor for drill box, T-groove worktable, linear guide rail, hydraulic station, drill bar support rests, 2 sets of workpiece brackets, constant speed headstock, 1 set of instruction manual.

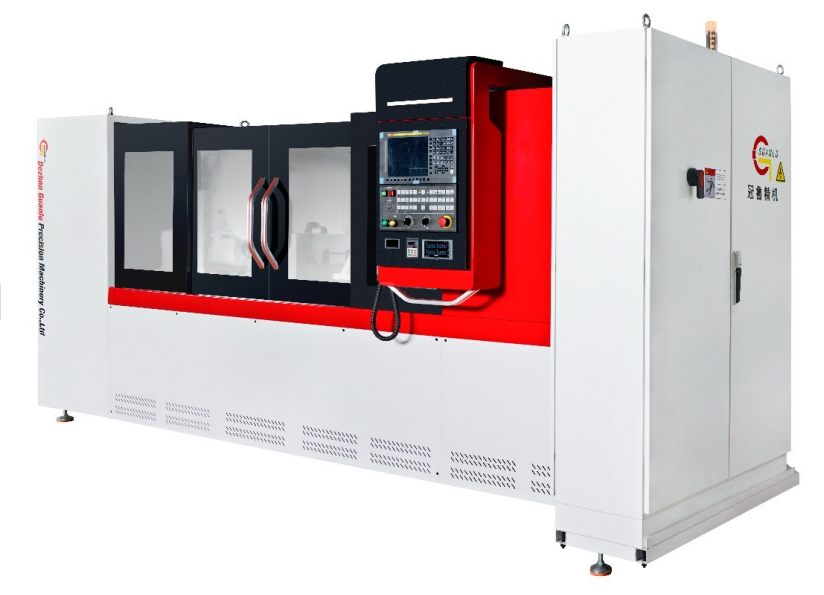

3.Machine photo:
