High-speed CNC Deep Hole Gundrilling Machine

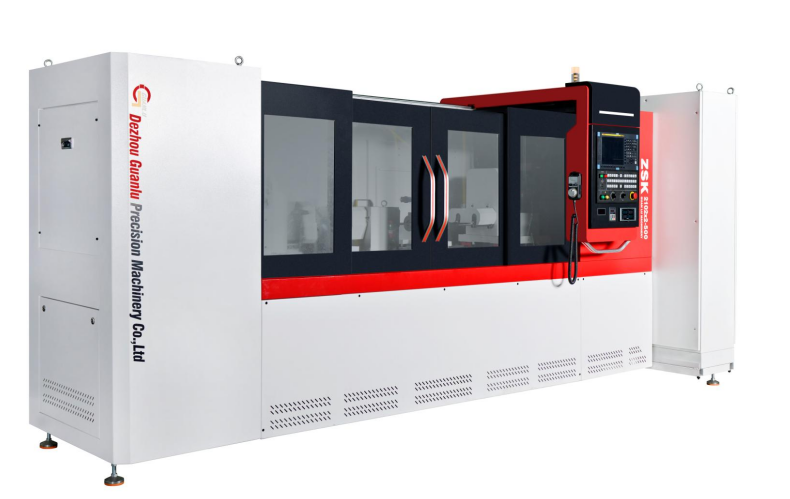

ZSK2103×500mm Deep Hole Gun Drilling Machine





1. Machine brief:

1.1 Processing Capacity :

Drill range: Φ3~Φ30mm

Max. Drill depth : 500m

Max.workpiece length:500mm

Max. drilling length to diameter ratio: 100:1

Workpiece OD range: Φ15～Φ70mm



1.2 Gun drill drilling method, single spindle structure, suitable for machining coaxial holes on shaft parts



1.3 During the machining process, the tool and workpiece rotate relative to each other, and the tool feed



1.4 Workpiece clamping:

The front end of the headstock and guide frame spindle is equipped with a cone disk, and the hydraulic system controls the axial movement of the headstock box. By using the chamfers of the cone disk and the two ends of the workpiece, the workpiece is automatically clamped and positioned; The center frame is supported in the middle of the workpiece.



1.5 The guide rails used on the machine are linear guides



1.6 CNC system: SIEMENS

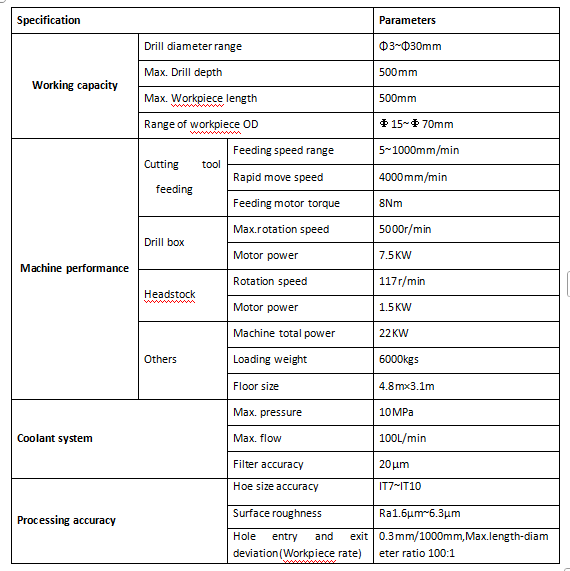

2. Machine main parameters :



3.Machine standard parts :

Chain plate chip conveyor, automatic paper bag filter, oil cooler, tool oil supply pump group, CNC system and its servo feed motor, servo main motor for drill box, T-groove worktable, linear guide rail, hydraulic station, drill bar support rests, constant speed headstock, 1 set of instruction manual.



4.Optional parts :

Cutting tool , auxiliary tools, cutting oil



5.Processing Accuracy

Surface roughness : Ra1.6~6.3um

Hole size accuracy : IT7~IT10



6.Hole entry and exit deviation(Workpiece rate)

0.4mm/1000mm(Max. drilling length to diameter ratio 100:1)
