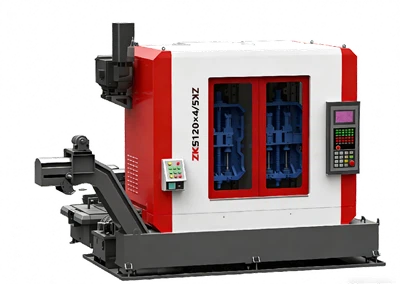

ZK51 Series Multi-Spindle Vertical Gun Drilling Machine

The ZK51 series is a vertical multi-spindle gun drilling machine designed for high-efficiency batch processing of deep holes and precision line holes on rotary shaft parts. With the spindle inverted design, chips are discharged smoothly, ensuring excellent surface quality.Equipped with a PLC control system and user-friendly man-machine interface, the machine features two or more independent processing units.These units can run the same or different specifications of parts simultaneously, greatly improving factory scheduling flexibility and production efficiency. Compared with horizontal gun drilling machines of the same capacity, this vertical model requires less floor space, making it ideal for compact workshops.

Send Inquiry Chat Now

Description

🔹 Core Advantages

✅ Optimized Inverted Spindle DesignImproves chip evacuation, resulting in cleaner cutting and superior surface finish.

✅ Superior Tool Rigidity & EfficiencyDedicated guide mechanism enables shorter tool length for the same drilling depth, boosting rigidity and cutting speed.

✅ Modular Multi-Unit ConfigurationAvailable in 2, 4, or 6 independent processing units, allowing parallel machining of the same or different workpieces.

✅ PLC Control & Easy OperationUser-friendly interface ensures stable performance and simple operation for long-term production.

✅ Compact FootprintTakes up less floor space than equivalent horizontal models, saving workshop area.

🔹 Typical Applications

Ideal for batch processing of rotary shaft parts such as:

Gear shafts

Camshafts

Automotive transmission shafts

Precision mechanical components

Processing Range:

Hole diameter: Φ5–Φ40 mm (depending on model)

Maximum clamping length: 300 / 500 mm

Hole characteristics: Same-axis precision deep holes

Workpiece clamping: Vertical clamping for outer circle chamfer or center hole positioning

📞 Contact Us

Sales Representative: Tina

WhatsApp / WeChat: +86 17857586156We provide custom configurations, detailed quotations, and professional technical support.Welcome to contact us for more information!
