Deep Hole Gun Drilling Machine With 4-spindle Structure

ZSK2102×4 Deep hole gun drilling machine with 4-spindle structure

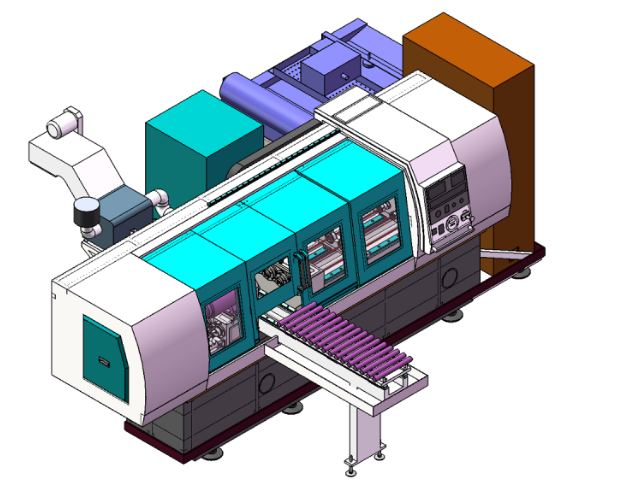

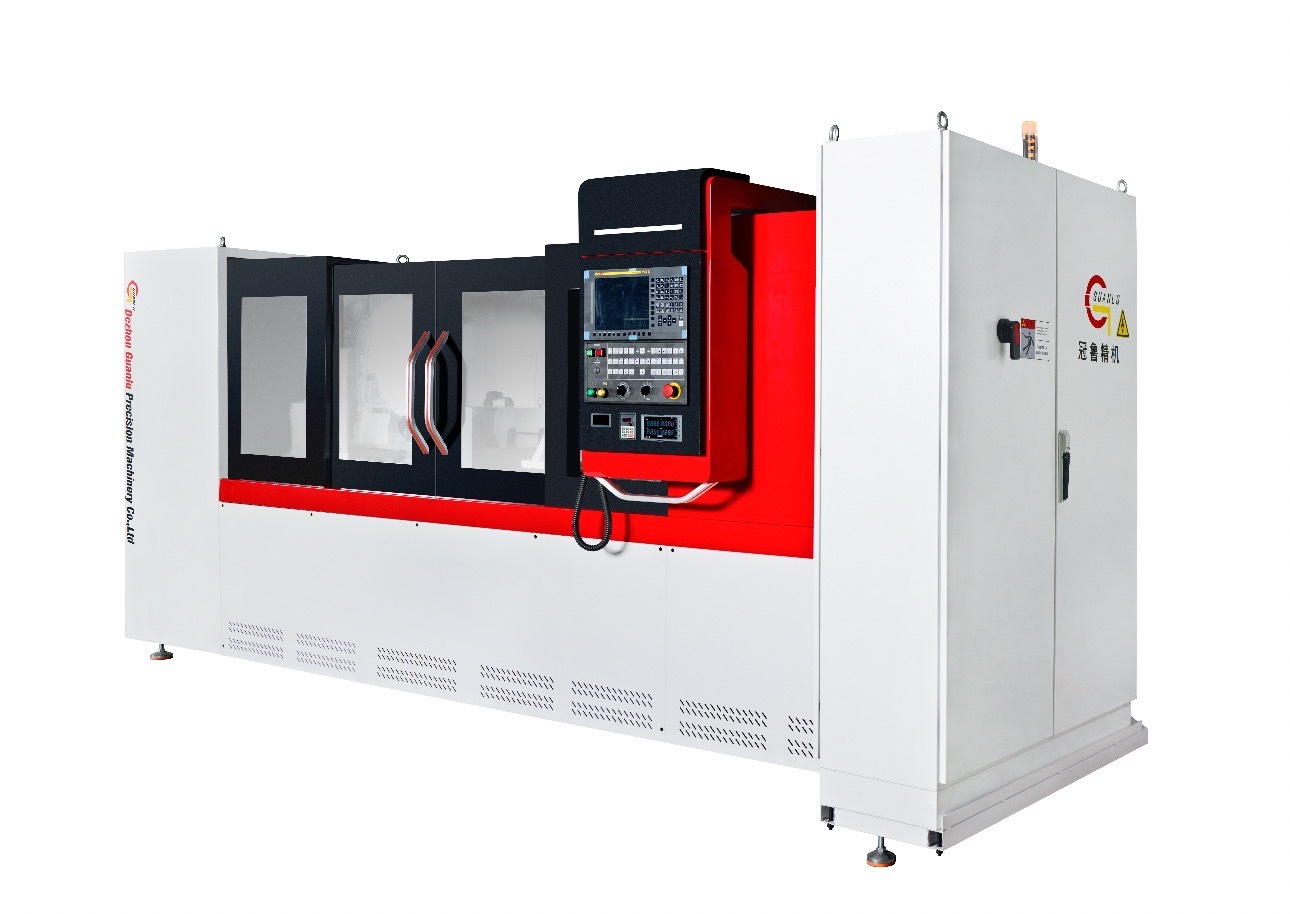

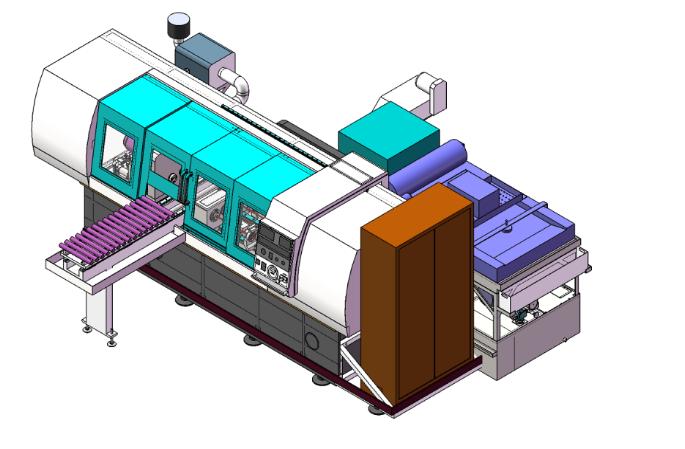

ZSK2102×4 CNC Gundrilling Machine

Processing range of CNC gundrilling machine:

CNC Gundrilling range：Φ4～Φ20mm

Max.drilling depth：500mm

Max. drilling length to diameter ratio100:1

Outer diameter range of workpiece：Φ15～Φ40mm

Range of workpiece length：150～500mm

Processing method of CNC gundrilling machine:

Gun drill drilling method, 4-spindle structure, capable of processing 4 workpieces simultaneously;

During the machining process, the tool and workpiece rotate relative to each other, resulting in tool feed.

Processing process of CNC gundrilling machine:

The feeding frame is moved outside the machine tool.

16 workpieces are placed on the feeding frame.

The feeding frame is moved to the machining position under the control of the CNC system.

The hydraulic system controls the main spindle of the guide frame and the main spindle of the headstock to extend successively, tightening and positioning the workpiece.

Cooling oil start, spindle start, tool feed start, and machining to the set depth.

The hydraulic system controls the headstock spindle and guide frame spindle to release successively, and the workpiece falls onto the feeding bracket.

Under the control of the CNC system, the feeding frame moves to the next processing position and continues processing until all the workpieces on the braket are processed.

Move the feeding frame outside the machine, take away the processed workpieces, and place the unprocessed workpieces on top.

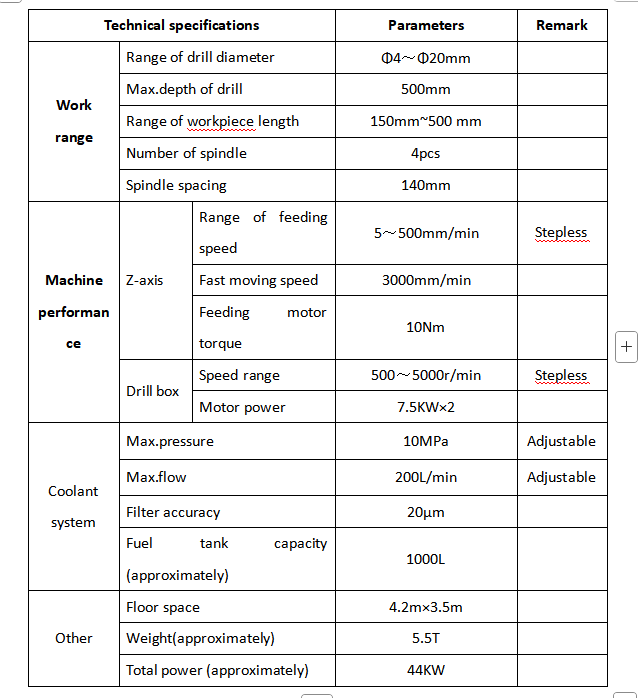

Main parameters of the CNC gundrilling machine:

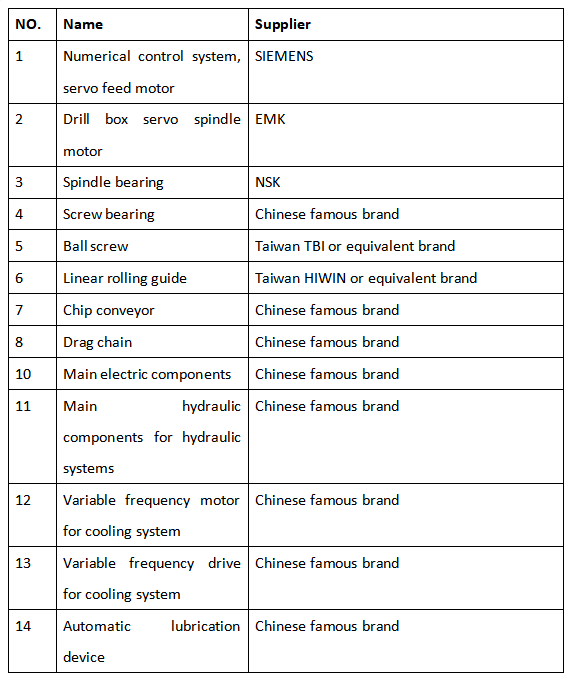

Main configuration list of CNC gundrilling machine:

Standard equipment for CNC gundrilling machine:

Chain plate chip conveyor, automatic paper and tape filter, oil cooler, tool oil supply pump group, CNC system and its servo feed motor, servo main motor for drill box, T-slot worktable, linear guide rail, hydraulic station, drill bar bracket, two sets of workpiece brackets, constant speed headstock, and one set of instructions

Optional of this CNC gundrilling machine:

Manual paper tape filter, magnetic chip conveyor, other CNC systems, accessories, cutting tools, cutting oil, oil mist collector, automatic oil slinger.

Processing of CNC gundrilling machine:

Hole deviatio：1mm/1000mm(Workpiece rotation,Length to diameter ratio within 100:1)

Hole deviatio：0.5mm/100mm(Workpiece rotation,Length to diameter ratio within 100:1)

Roughness：Ra0.8～3.2um

Hole accuracy：IT7～IT10
