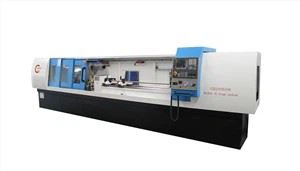

Deep Hole Gun Drilling Machine

Name: China Customized Deep Hole Gun Drilling Machine Suppliers Manufacturers - Guanlu
Brand: Guanlu
SKU: 288597512

This machine tool is a deep hole machining machine that uses the external chip drilling method (gun drilling method) to drill small holes. Continuous drilling can replace the machining accuracy and surface roughness that usually require drilling, expanding, and reaming processes.

Send Inquiry Chat Now

Description

ZSK21006×2 Deep Hole Gun Drilling Machine

Overview of Machine Tool :

Machine tool processing range :

Drilling range：Φ1～Φ6mm

Max.drilling depth：400mm

Max. drilling length to diameter ratio100:1

Outer diameter range of workpiece：Φ10～Φ60mm

Machine tool processing method :

Gun drill drilling method, dual spindle structure, capable of processing 2 workpieces simultaneously;

During the machining process, the tool and workpiece rotate relative to each other, cutter tool feed.

Strandard equipment for machine tool

Chain plate chip conveyor, cutting oil filtration system, oil cooler, tool oil supply pump group, CNC system and its servo feed motor, electric spindle for drill box, linear guide rail, hydraulic station and one set of instructions

Parameters
Range of drill diameter	Φ1～Φ6mm
Max.depth of drill	400mm
Range of workpiece OD	10~60 mm
Number of spindle	2pcs
Speed range of drill box spindle	100～15000r/min	Stepless
Feed speed range (Z-axis)	5～500mm/min	Stepless
Fast moving speed of feed carriage	4000mm/min
Torque of feed motor	7Nm
Spindle drive power of drill box	2.5KW×2
Headstock spindle drive power	1.5KW
Headstock spindle speed range	117r/min
Max.pressure of coolant liquid	14MPa
Max.flow of coolant liquid	40L/min
Filter accuracy	5μm
Drill hole length to diameter ratio	≤100mm
Weight(approximately)	4.5T
Total power (approximately)	20KW
