Deep Hole Honing Machine For 9m Cylindrical Parts

2M2136x9000mm Deep hole honing machine





1.Machine processing capacity:

Hole diameter range: Φ40～Φ360mm

Max. processing hole depth: 9m

Max. Workpiece length: 9m



2.Machine main parts

Machine bed, Honing box, 2sets workpiece carriers, Honing bar support rest, Rack

and pinion, Coolant system, PLC control system, Electric cabinet and so on .



3. Machine main structure



3.1Honing bar support rest

Supporting honing bar in the process of honing and measuring.

2sets, one set is fixed on the machine bed, another set moves on the circular linear guide rail of machine bed .

3.2 Coolant system

Supply the lubricating liquid for honing head .

Mainly composed of pumps, paper filter, magnetic filer,oil tank etc. .

Provide external oil spray and internal oil feeding two oil supply methods for the honing head,which could be chosen on the operation panel .

3.3 Lubricating system

The slider of guide rail for reciprocating movement of honing box is lubricated automatically by automatic lubrication station, and liquid level alarm is provided on lubrication station.

The honing box is filled with lubricating oil ,the gears and bearings inside are lubricated by rotating the gears.

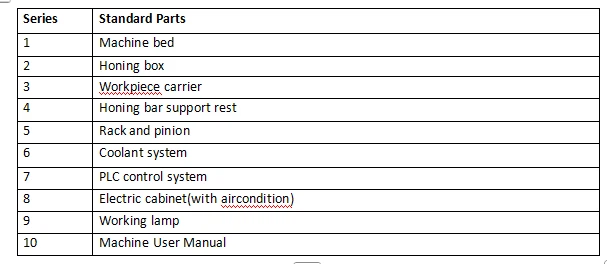

4.Machine standard :
