Deep Hole Honing Machine For Cylindrical

Name: China Customized Deep Hole Honing Machine For Cylindrical Suppliers Manufacturers - Guanlu
Brand: Guanlu
SKU: 294461489

Achieve superior surface quality and dimensional accuracy with our high-performance Deep Hole Honing Machine, engineered for finishing critical cylindrical deep-hole parts such as hydraulic cylinders, piston cylinders, and similar components.

Send Inquiry Chat Now

Description

Deep Hole Honing Machine

Achieve superior surface quality and dimensional accuracy with our high-performance Deep Hole Honing Machine, engineered for finishing critical cylindrical deep-hole parts such as hydraulic cylinders, piston cylinders, and similar components.

🔧 Key Machining Specifications:

Hole Diameter Range: Φ20 – Φ160 mm

Maximum Hole Depth: 6 m

Maximum Workpiece Length: 6 m

✅ Key Features & Capabilities:

Versatile Honing Modes: Supports both full-length honing and partial honing, with the ability to correct taper, ovality, and local diameter deviations.

Advanced Tool Control: Servo motor-controlled honing head allows constant-pressure feed and constant-volume feed, ensuring consistent finishing quality.

Efficient Lubrication System: Combines external spray lubrication with internal oil supply for effective cooling and chip evacuation.

Reliable Workpiece Clamping: Secure and stable clamping system designed for long and heavy cylindrical workpieces.

🛠️ Ideal for Applications in:

Hydraulic cylinder manufacturing

Piston cylinder finishing

Automotive and aerospace component processing

Any industry requiring high-precision internal bore finishing

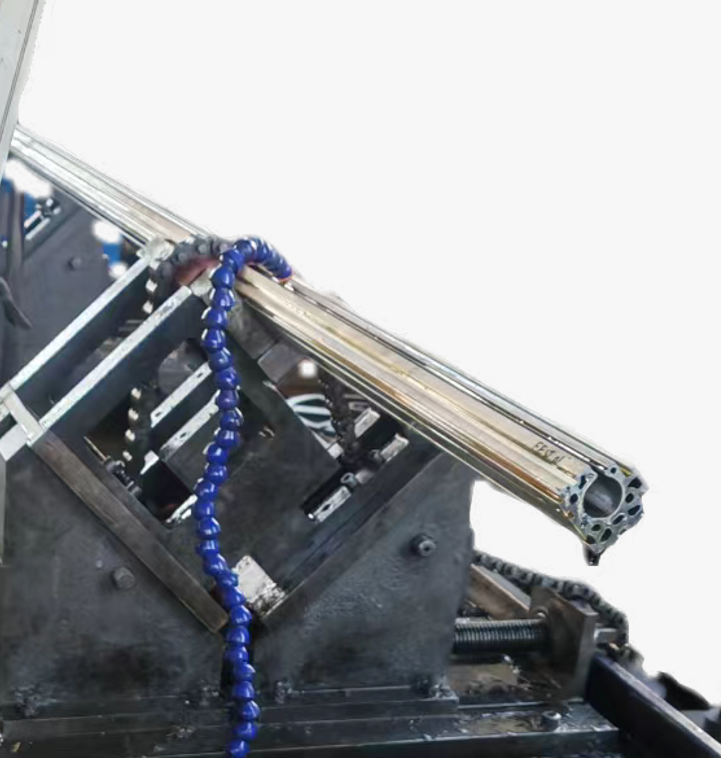

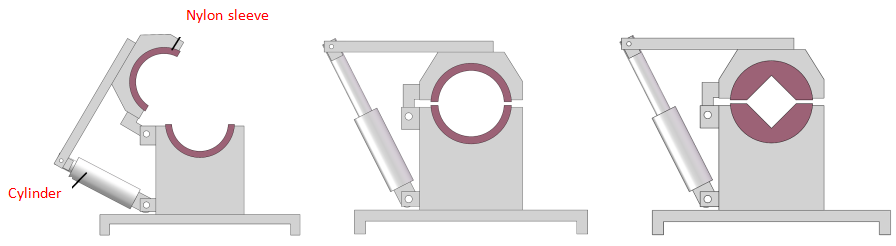

Workpiece clamping demonstration(For square and round workpieces)

Upgrade your finishing process with a Deep Hole Honing Machine built for precision, flexibility, and productivity. Contact us today for more details or to request a quote!

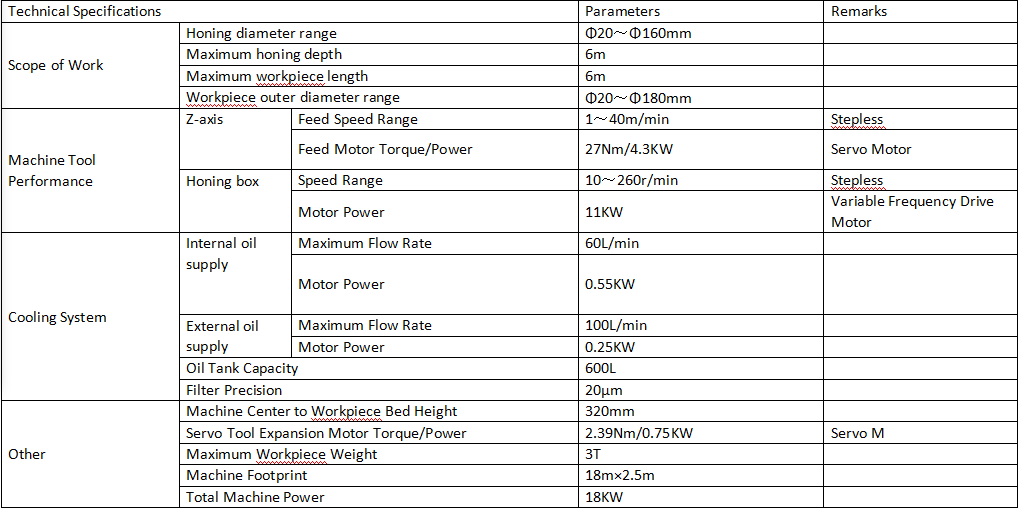

Deep Hole Honing Machine parameters

product-1-1

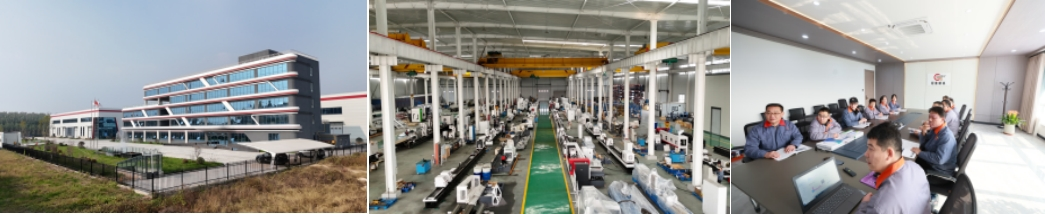

Company Profile

Guanlu Precision Machinery Manufacturing Co., Ltd.

Established in 2011, Guanlu Precision is a supplier specializing in the manufacturing of high-end precision machinery equipment and solutions. We are committed to providing global industrial clients with high-performance and highly reliable products.

Core Strengths:

1. Strong Manufacturing Capabilities

Equipped with over 40 advanced machining devices, including a German 12-meter Heckert guideway grinder, a Japanese 10-meter SNK 5-face milling machine, and large-scale gantry planers, enabling us to handle large, complex, and precision components.

2. Strict Quality Assurance System

Fully complies with the ISO9001 Quality Management System.

Implements comprehensive quality control throughout the entire process: from professional R&D and a stable supply chain to inspection at each production stage, culminating in a final 72-hour continuous operational test before shipment. This ensures every machine meets specifications 100% and delivers stable, reliable performance.

3. Professional Team and Service

Possesses a professional R&D and design team along with a skilled assembly team.

Provides customized solutions from design to production to meet the needs of various industries.

Primary Application Fields:
Aerospace, Automotive Manufacturing, Medical Devices, and High-End Industrial Equipment.

We build upon a foundation of exceptional quality and integrity in service, and we look forward to becoming your reliable partner. Please feel free to contact us for more information or to discuss custom solutions.
