Deep Hole Scrape Boring Machine

The General Introduction of Deep Hole Skiving Roller and Burnishing Machine

Machine Brief：

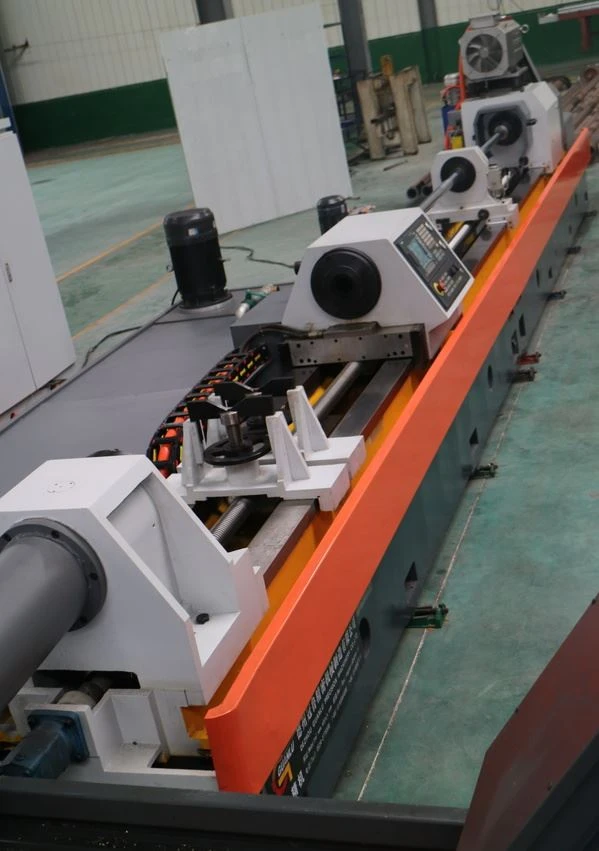

  Deep hole skiving roller and burnishing machine is mainly used for skive-action and roll machining. The machine adopts the machining technique of immovable work-piece and rotating boring tool. Front-row scraping is adopted for skive-action machining, with oil fed by oil feeder at the center of boring bar and with chips removed at the back of headstock. Rolling is post-tensioning rolling. SRB high-speed scraping/boring rolling head manufactured by the company is applied, capable of machining oil cylinder highly efficiently. The traditional technology of heavy boring, fine boring and honing machining oil cylinder is changed, one-off molding, with 8 to 15 times of the production efficiency of traditional technology. The application of this machine will bring an epoch-making revolution to the production process of oil cylinder.

  The bed of deep hole skiving roller and burnishing machine is manufactured by high quality cast iron, with strong rigidity and strong stability. Boring bar box spindle is drove by ac servo motor, boring bar box spindle is drove by servo motor, wide speed range, large output torque, feed system uses AC servo motor driven double rack transmission, smooth feeding, long service life and can adapt to the needs of all kinds of deep hole machining process, workpiece loading card adopts tight hydraulic cylinder, stable and reliable, easy handling, electrical system adopts centralized control CNC system, can be interactive, graphical display, flexible operation, safe and reliable. In production it is suitable for mass production can also be suitable for small batch production.

  Deep hole skiving roller and burnishing machine is equipped with large capacity automatic chip removal machine, drum magnetic separator, collect automatically iron into attle box, cooling fluid can be recycled by precision filtration.

Machine layout and details of each unit:

1. Coolant system is on side of the machine. Include chips convoryor,oil chamber and filtering system. Coolant flow can get 50-200L/min,user can adjust by hole size. Coolant rated pressure is 0.36-3MPa.

2. Hydraulic system,which has independent hydraulic pump. One is for oil pressure head move,clamping and head frame job clamping pressure supply. The other is for tool tension and shrinkage. The tool use hydraulic driven system. Independent hydraulic pump,which makes hydraulic system working more steady,accuracy and more easy to maintain.

3.Lubricate system: Machine has completely lubricate system,boring bar box carrier,boring bar spindle box use high volume circulation lubrication,boring bar steady rest,oil pressure head,use manual lubricate. The lubricate hydraulic pum is independent installed. which is more steady and easy to maintain.

4. Electric control system； Electric control system adopts Siemens control,equips TFT screen. Machine operate can be manual and can be auto control. All low voltage appatus we use schneider brand. The electric cabinet meet  GB5226.1 standard.

5. Machine safety guard；Mostly parts of the machine,use half enclosure.machine safety meet GB15760 standard.

After sale services for deep hole skiving roller burnishing machines:

1. normal machine is properly adjusted before dispatch

2. You will be able to use the machine immediately

3. You will be able to get free training advice towards our machine in our factory.

4. You will also get free suggestion and consulting technical support and services by email fax tel and lifetime technical support

5.We will provides heavy duty universal and CNC metal lathes manufacturer,installation,test,after-sales maintenance and all technical support
