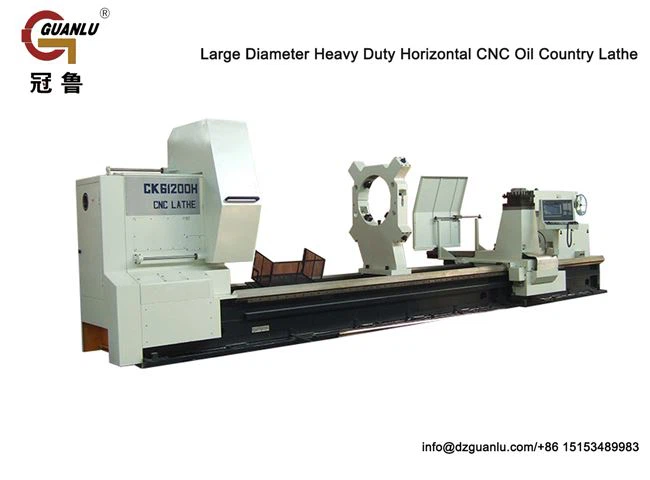

Large Diameter Heavy Duty Horizontal CNC Oil Country Lathe
The heavy duty oil country lathe is suitable to do the outer circle, end face, ring slot, inner bore and the inside and outside cone processing of workpieces, such as different materials of shaft class, cylinder shape and disc shape. Machine brief: l The oil country lathe consists of bed,...
Description
The heavy duty oil country lathe is suitable to do the outer circle, end face, ring slot, inner bore and the inside and outside cone processing of workpieces, such as different materials of shaft class, cylinder shape and disc shape.
Machine brief:
l The oil country lathe consists of bed, headstock, tailstock, tool post, slide carriage box, feed box, center rest and so on. And the headstock and tailstock are respectively installed on the left and right side of the bed.
l The main transmission of the oil country lathe is droved by the 30KW A.C. motor. And the spindle can do 21-step manually speed regulating among the range of 3.15~315r/min.
l The drive source of the feed transmission system is from the light bar and screw which are connected with the main transmission mechanical system, then it makes the feed directly connect with the spindle speed and the feed shows as the spindle feed per revolution. So it will be convenient, direct and correct when the feed is chosen.
Item | specification |
Max swing diameter over bed | 2100mm |
Max swing diameter over tool post | 1700mm |
Max length of workpiece | 8000mm |
Width of machine guideway | 1100mm |
Max load-bearing between machine chuck and tailstock center | 16t |
Headstock | |
Inner diameter of spindle front bearing | 240mm |
Diameter of spindle bore | 130mm |
Front taper of spindle bore | Metric 140# |
Spindle speed kind when rotating forward | 21kinds |
Spindle speed kind when rotating backward | 12kinds |
Spindle speed range per minute | |
Forward (speed limit: 200 r/min) | 3.15-315r/min |
Backward(speed limit: 200 r/min) | 3.5-290r/min |
Main motor power | 30kW |
4-jaw independent heavy chuck | φ1600mm |
Feed box | |
Spindle longitudinal and transverse feed kinds every revolution of tool post | 56kinds |
Spindle feed range every revolution of tool post | |
Longitudinal | 0.1-12mm |
Transverse (half of longitudinal ) | 0.05-6mm |
Center tool post (quarter of longitudinal) | 0.025-3mm |
Metric threads kinds | 44kinds |
Metric threads pitch range | 1-120mm |
Inch threads kinds | 31kinds |
Inch threads teeth range per inch | 28-3/8tpi |
Module threads kinds | 45kinds |
Module range of module thread | 0.5-60mm |
Pitch threads kinds | 25kinds |
Pitch threads range | 1-56DP |
Tool post | |
The vertical distance from spindle center to cutter installation surface | 48mm |
Cutter section | 45mm×45mm |
Swing angle of tool post | ±90° |
Max transverse travel of slide | 750mm |
Max travel of center tool post | 400mm |
Travel of upper tool post | 180mm |
Feed of upper, middle and lower tool post every revolution of one grid of dial | 0.05mm |
Rapid moving speed of tool post | |
Longitudinal | 3740mm/min |
Transverse | 1870mm/min |
Tailstock | |
Center sleeve diameter | 260mm |
Max travel of center sleeve | 300mm |
Center sleeve taper | Metric 80 |
Motor-driven moving speed of tailstock | 1000mm/min |
Lubrication and control pump | |
Model | CB-B10 |
Max flow | 10L/min |
Working pressure | 2.5MPa |
Revolution speed | 1500r/min |
