ZSG90×3-10050 Three-Spindle Tube Plate CNC Deep Hole Drilling Machine



The machine is a floor-standing horizontal layout, adopting gun drilling method (external chip discharge) and BTA method (internal chip discharge).

It adopts three spindle structure (three sets of tooling system), the three spindles can work individually and simultaneously, and the spindle distance is adjusted by servo motor driven ball screw to adapt to different hole distance requirements. Each tooling system has its own drill box, bar support, guide frame, tool feed drive, feed slide, feed guide, and when switching between BTA and gun drilling, it is necessary to change the tool, auxiliary tools, and switch the oil circuit.

Drilling range of gun drill: φ10mm～φ30mm

BTA drilling range: φ25mm～φ90mm

Maximum drilling depth (Z-axis): 1500mm

X-axis travel: 10000mm

Y-axis travel: 5000mm

CNC system: FANUC/SIEMENS/GSK

Company Profile

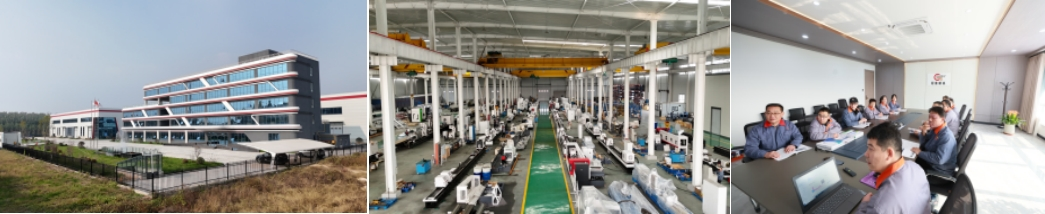

Guanlu Precision Machinery Manufacturing Co., Ltd.

Established in 2011, Guanlu Precision is a supplier specializing in the manufacturing of high-end precision machinery equipment and solutions. We are committed to providing global industrial clients with high-performance and highly reliable products.

Core Strengths:

1. Strong Manufacturing Capabilities

Equipped with over 40 advanced machining devices, including a German 12-meter Heckert guideway grinder, a Japanese 10-meter SNK 5-face milling machine, and large-scale gantry planers, enabling us to handle large, complex, and precision components.

2. Strict Quality Assurance System

Fully complies with the ISO9001 Quality Management System.

Implements comprehensive quality control throughout the entire process: from professional R&D and a stable supply chain to inspection at each production stage, culminating in a final 72-hour continuous operational test before shipment. This ensures every machine meets specifications 100% and delivers stable, reliable performance.

3. Professional Team and Service

Possesses a professional R&D and design team along with a skilled assembly team.

Provides customized solutions from design to production to meet the needs of various industries.

Primary Application Fields:
Aerospace, Automotive Manufacturing, Medical Devices, and High-End Industrial Equipment.

We build upon a foundation of exceptional quality and integrity in service, and we look forward to becoming your reliable partner. Please feel free to contact us for more information or to discuss custom solutions.
