BTA Deep Hole Drilling Boring And Honing Combined Machine

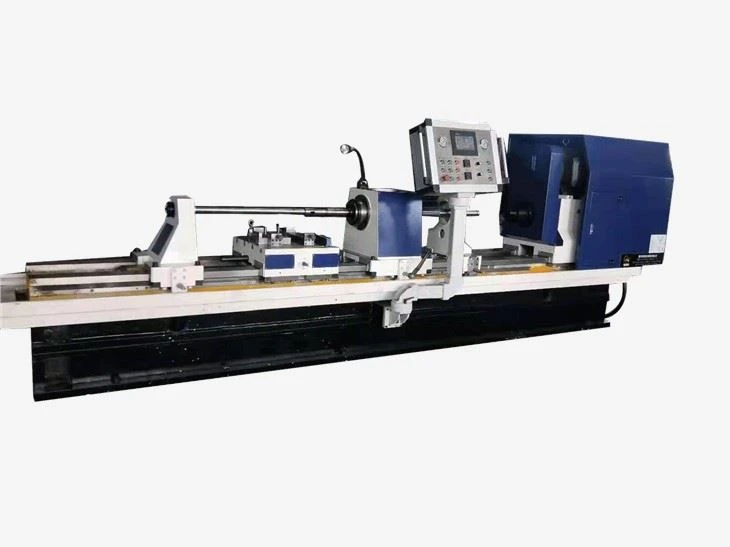

BTA deep hole drilling boring and honing combined machine

This machine is suitable for machining of the concentric or eccentric holes of the cylindrical workpiece,the machine could be drilling  counter boring,pull boring,,burnishing and honing as well.

Machine specifications:

Machine application:

It mainly used in hydraulic cylinder, Oil and gas industries. Deep hole processing and honing for carbon steel, alloy steel, stainless steel, high temperature nickel-based alloy and other materials.

Machine mainly parts:

Machine bed 、Headstock、2 sets workpiece bracket、2 sets center frame、oil pressure head 、3 sets drill bar supporting 、drill box、linear guide rail 、rack and pinion、boring cooling system、Honing cooling system、Delta PLC control system、Electrical cabinet etc.

Workpiece clamping

One end of the workpiece is clamped by the manual 3 jaw chucks on the headstock, and the oil pressure head automatically tightens the other end of the workpiece. (Double chuck clamping mode is optional.)

CNC servo axes:

Z1-axis: Drill box longitudinal feed movement, the servo motor drives the rack and pinion mechanism through the speed reduction mechanism. The moving speed is divided into high speed and low speed, high speed is used for honing, low speed is used for boring, high speed and low speed manual switching.

Z2-axis: Oil Pressure head servo tightening workpiece, the servo motor drives the rack and pinion mechanism through the speed reduction mechanism.

Z3-axis: Honing head servo expansion, the servo motor drives the screw mechanism through the speed reduction mechanism.

Machine mainly parameters:
