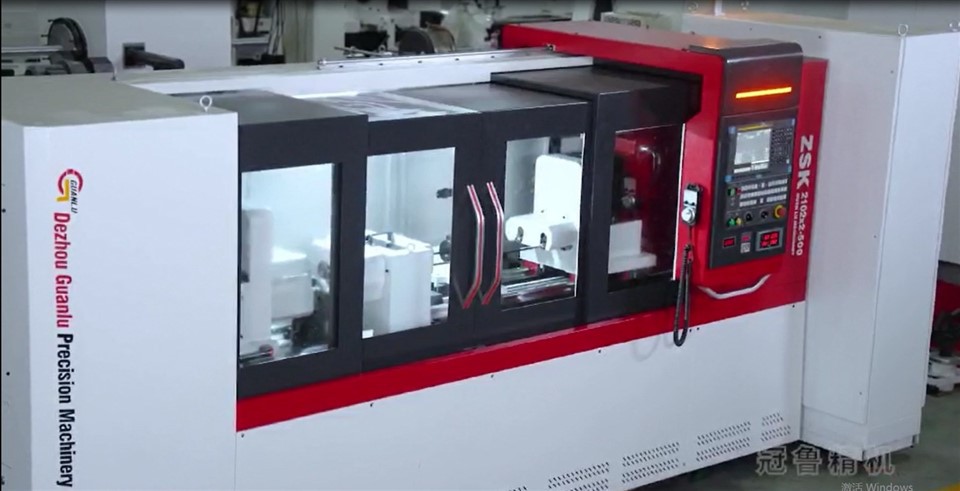

CNC Two Spindle Gun Drilling Machine

CNC Gun Drilling Machine – ZSK2102×2 Twin-Spindle Deep Hole Drilling Machine

The ZSK2102×2 CNC deep hole drilling machine is a high-performance gun drilling machine designed for precision deep hole drilling applications. This advanced CNC gun drilling machine features a twin-spindle structure, enabling simultaneous machining of two workpieces, significantly improving productivity and efficiency.

This deep hole drilling machine is ideal for machining coaxial holes in shaft-type components, widely used in automotive, aerospace, hydraulic, and mold industries.

---

🔧 Key Features of the CNC Gun Drilling Machine

✅ Twin-spindle gun drilling machine – process two workpieces at the same time

✅ High-efficiency deep hole drilling with length-to-diameter ratio up to 100:1

✅ Advanced CNC control system for precise and stable machining

✅ Servo-driven spindle ensures high-speed gun drilling up to 5000 rpm

✅ Suitable for precision deep hole drilling in metal components

✅ Fully enclosed protection for safe and clean operation

---

⚙️ Technical Specifications – Deep Hole Drilling Machine

Item	Specification
Drilling Diameter	Φ4 – Φ20 mm
Max Drilling Depth	500 mm
Max L/D Ratio	100:1
Workpiece Diameter	Φ15 – Φ70 mm
Number of Spindles	2 (Twin-Spindle)
Spindle Speed	Up to 5000 rpm
Feed Speed	5 – 500 mm/min
Rapid Feed	4 m/min
Coolant Pressure	Up to 10 MPa
Coolant Flow Rate	100 L/min

---

🛠 Machine Structure & Working Principle

This CNC deep hole drilling machine adopts a gun drilling process, where both the tool and workpiece rotate relative to each other while the tool performs axial feed.

The hydraulic clamping system automatically centers and clamps the workpiece

The guide bush system ensures high accuracy in deep hole drilling

The linear guideways provide smooth and precise movement

The servo feed system with ball screw enables stepless speed control

---

❄️ High-Pressure Cooling System for Gun Drilling

The machine is equipped with a professional high-pressure coolant system, essential for stable gun drilling operations:

High-pressure pump system (up to 10 MPa)

Efficient chip removal system

Oil cooling unit

Precision filtration system (20μm)

This ensures excellent surface finish and extends tool life during deep hole drilling.

---

🎯 Machining Accuracy

Hole tolerance: IT7 – IT10

Surface roughness: Ra 1.6 – 6.3 μm

Hole straightness deviation: 0.5 mm / 1000 mm

This makes the machine ideal for high-precision deep hole drilling applications.



🔌 Main Components & Brands

CNC System: GSK (Guangshu CNC)

Spindle Bearings: NSK

Linear Guideways: HIWIN

Ball Screw: TBI or equivalent

Electrical Components: Schneider / Siemens

---

📦 Standard Configuration

Chip conveyor system

Paper band filtration system

Oil cooling machine

High-pressure coolant unit

Hydraulic system

Linear guideways

Tool support system

---

🚀 Why Choose Our CNC Deep Hole Drilling Machine?

Professional manufacturer of gun drilling machines

Stable performance in deep hole drilling applications

High efficiency with twin-spindle design

Excellent accuracy for precision drilling

Customizable solutions available



Contact: Lilian Lee
Whatsapp: +8619819312517
Email: drilling@dzguanlu.com
