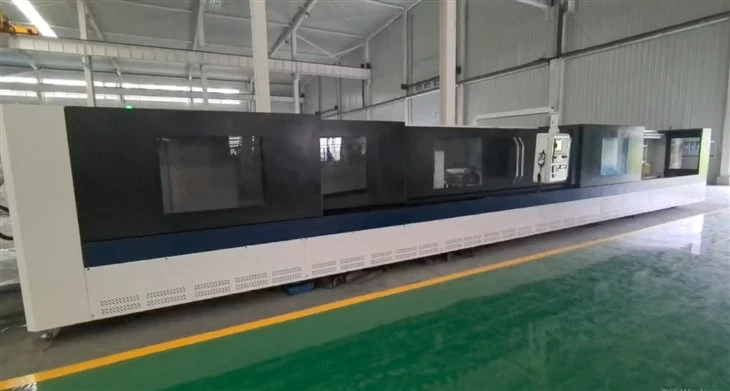

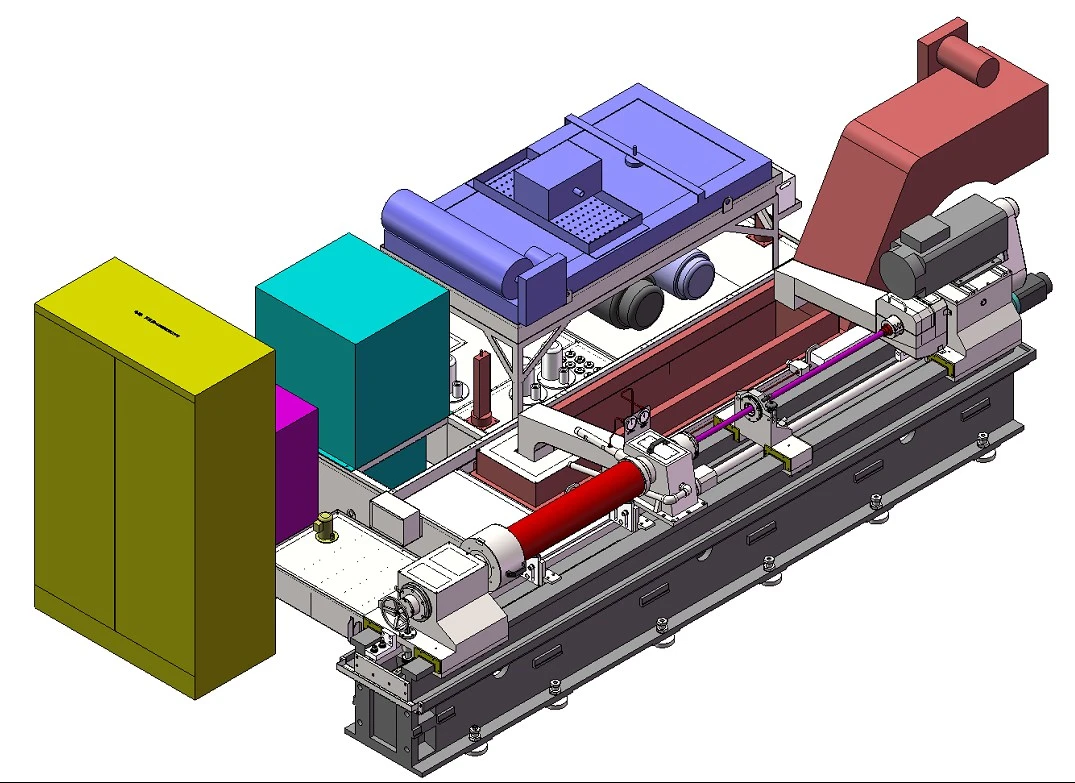

Composite CNC Deep Hole Gun Drilling & BTA Drilling Machine (ZSK2108F)

High-Precision Composite Deep Hole Drilling Machine for Gun Drilling & BTA Drilling

The ZSK2108F Composite CNC Deep Hole Drilling Machine is specially designed for precision deep hole machining of shaft-type components. One machine integrates both Gun Drilling and BTA Deep Hole Drilling processes, allowing manufacturers to cover a wide range of hole diameters with high efficiency and lower investment.

By simply changing the tooling, auxiliary fixtures and coolant circuit, the machine can quickly switch between Gun Drilling and BTA drilling, providing excellent flexibility for various production requirements.

---

Main Features

Composite machine integrating Gun Drilling and BTA Drilling

Shared spindle design for both drilling methods

Maximum drilling depth up to 3000 mm

Siemens CNC control system

Servo-driven spindle with stepless speed adjustment

High-pressure coolant system with oil chiller and filtration

Heavy-duty resin sand cast machine bed with double aging treatment

Box guideways for high rigidity and long-term accuracy

Full machine enclosure for safe operation

Suitable for continuous industrial production



---

Technical Specifications

Item	Specification
Gun Drilling Diameter	Ø10–30 mm
BTA Drilling Diameter	Ø25–80 mm
Maximum Drilling Depth	3000 mm
Maximum Workpiece Length	3000 mm
Workpiece Diameter	Ø15–150 mm
Spindle Speed	Up to 2000 rpm
Z-axis Feed Speed	5–500 mm/min
Rapid Traverse	3000 mm/min
Gun Drilling Coolant Pressure	Up to 8 MPa
BTA Coolant Pressure	Up to 4 MPa
Filtration Accuracy	20 μm

---

Machine Advantages

Dual Drilling Capability

One spindle supports both Gun Drilling and BTA drilling, reducing equipment investment while expanding machining capability.

High Rigidity Structure

The machine bed and major structural components are manufactured from high-quality resin sand castings and undergo double aging treatment to ensure excellent rigidity, vibration resistance and machining stability.

Efficient Coolant System

Equipped with variable-frequency high-pressure pumps, constant-flow pumps, oil chiller, paper filter and chip conveyor to ensure reliable deep hole machining performance.

Precision Servo Feed

The servo-driven ball screw feed system provides smooth, accurate feeding for stable drilling quality and improved tool life.

Reliable Components

The machine adopts internationally recognized components including Siemens CNC system, NSK spindle bearings, TBI ball screws and high-quality electrical and hydraulic components.

---

Machining Performance

Hole Diameter Accuracy: IT8–IT10

Gun Drilling Surface Finish: Ra 3.2–6.3 μm

BTA Drilling Surface Finish: Ra 3.2–12.5 μm

Hole Straightness (workpiece rotating): 0.5 mm / 1000 mm

Actual machining performance depends on workpiece material, cutting conditions and tooling selection.

---

Typical Applications

The ZSK2108F Composite CNC Deep Hole Drilling Machine is widely used for machining:

Hydraulic cylinder rods

Oil & gas drilling components

Transmission shafts

Mold cooling holes

Heavy machinery shafts

Mining equipment

Aerospace components

Power generation equipment

Mechanical shafts requiring precision deep holes

---

Standard Configuration

Siemens CNC Control System

Servo Feed System

Servo Spindle Motor

Chip Conveyor

Paper Band Filter

High-pressure Coolant System

Oil Chiller

Hydraulic Station

Drill Rod Supports

Automatic Lubrication System

Full Enclosure
