Deep Hole Drilling And Boring Machine 10m

Name: China Customized Deep Hole Drilling And Boring Machine 10m Suppliers Manufacturers - Guanlu
Brand: Guanlu
SKU: 293772251

TSK2150×10000mm Deep hole drilling and boring machine Processing capacity: Drilling range：Φ30～Φ150 mm Boring range: Φ40～Φ500mm Workpiece OD range : 100-650mm Max. machining depth：10m Max. workpiece length: 10m Machine functions: Drilling Boring . Drilling: BTA drilling...

Send Inquiry Chat Now

Description

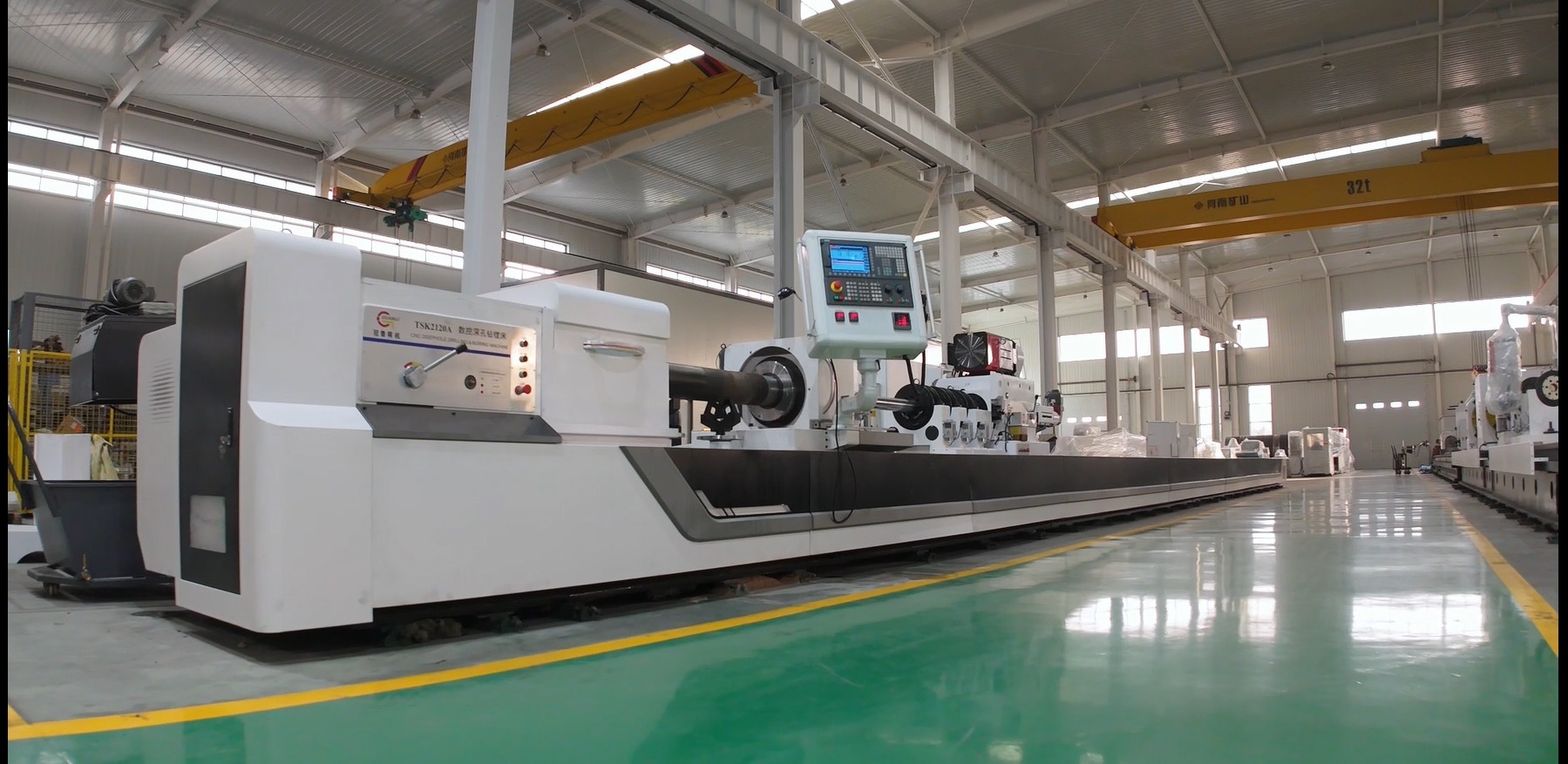

TSK2150×10000mm Deep hole drilling and boring machine

product-1-1

Processing capacity:

Drilling range：Φ30～Φ150 mm

Boring range: Φ40～Φ500mm

Workpiece OD range : 100-650mm

Max. machining depth：10m

Max. workpiece length: 10m

Machine functions:

Drilling Boring .

Drilling: BTA drilling method with backward chip evacuation through the tool shank.

Boring: Push Boring (or Pull boring) method, chip removal forward through the bottom hole of the workpiece.

Machine tool machining mode: workpiece rotates, tool rotates and feeds; workpiece rotates, tool does not rotate, tool feeds.

The main purpose of the machine tool and the general arrangement

The machine tool is specialized in machining cylindrical shapes, with strong rigidity of the machine bed and good accuracy retention. It can be adapted to the internal hole machining of large workpieces. The spindle speed range is wide, and the feeding system is driven by AC servo motor, which can adapt to the needs of various deep hole machining processes. Oil pressure head servo jacking the workpiece.

Machine main parts:

Machine bed , headstock, oil pressure head, drill bar support rest, sliding guide rail, rack and pinion, coolant system, PLC control system,

electric cabinet, center rest and so on .

Main parameters:

Specification			Parameters	Remark
Working capacity	Drilling diameter range		Φ30~Φ150mm	/
	Boring diameter range		Φ40~Φ500mm	/
	Max. processing depth		500-10000mm	/
	Workpiece length range		Φ500~Φ10000mm	/
Machine	Z1 axis	Feeding speed range	0.5~1000mm/min	stepless

features	(Feeding carrier)	Servo motor	35Nm	/
	Z2 axis (Oil pressure head movement)	Rapid move speed	3000mm/min	/
	Z2 axis (Oil pressure head movement)	Servo motor torque	27Nm	/
	Drill box	Rotary speed range	50~500r/min	Manual 12-speed speed control
		Motor power	45KW
		Gear level	Manual 12-speed speed control
	Headstock	Rotary speed range	4~440r/min	Manual 3-speed, stepless speed regulation within the gears
		Motor power	45KW	Servo spindle motor
		Spindle front taper hole	Metric 140
		chuck	Φ630mm(Manual 4-jaw)
	Others	Height from spindle center to top of guideway	625mm	/
		Max. swivel diameter on the bed	Φ1250mm	/
		Clamping diameter range of center frame	Φ100~Φ650mm	/
		Total power of the machine	185KW	/

		Load capacity	10 tons	/
		Machine floor space	28.5m x3.8m	/
		Machine weight (approx.)	43 tons	/
Coolant system	Max. pressure		2.5MPa	/
	Max. flow		800L/min	/
	Cooling motor power		11KW, 3 groups
