Cylinder Deep Hole Drilling and Boring Machine



1.Machine processing range:

Solid drilling diameter range ：25-100mm

Boring diameter range ：40-250mm

Workpiece OD range ：60-400mm

2.Machine function:BTA drilling, pull boring and push boring.

Drilling：BTA drilling method, chip is discharged backward through the drilling bar.





















Boring：Push boring method, chip is dispatched forward through the bottom hole of the workpiece.

Boring：Pull boring method, the tool is pulled from the far end of the workpiece, and chips are discharged backward through the bottom hole of the workpiece.

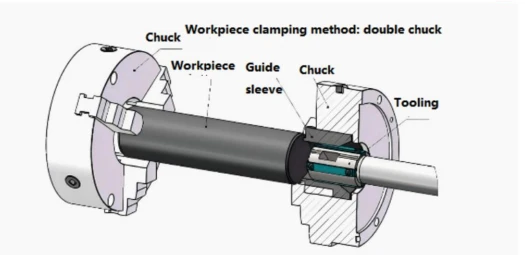

3. Workpiece clamping method:

The manual three-jaw chuck on the headstock clamps one end of the work piece, the CHUCK on the oil pressure head clamps the other end of the work piece.

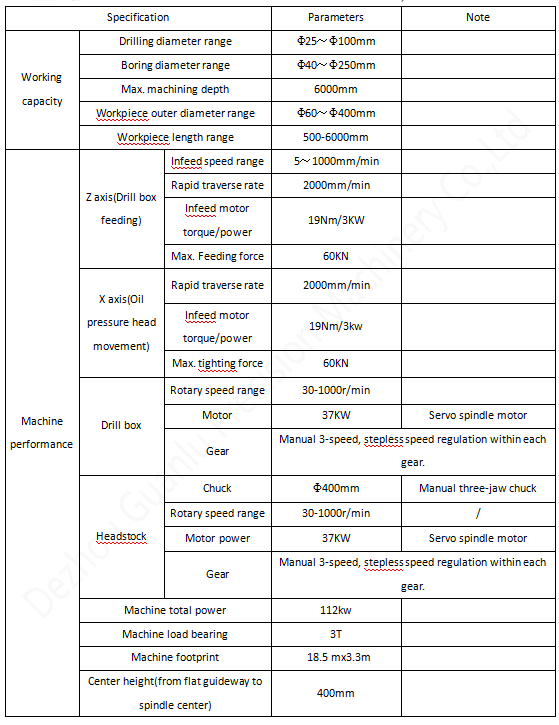

4. Main parameters:

Machine real pictures for your reference :

https://www.dzgljc.com/btadeepholedrillingmachine/cncdeepholedrillingmachine.html

More details, please feel free to contact me!
