Deep Hole Trepanning Machine For Aluminum Parts

Deep hole trepanning machine

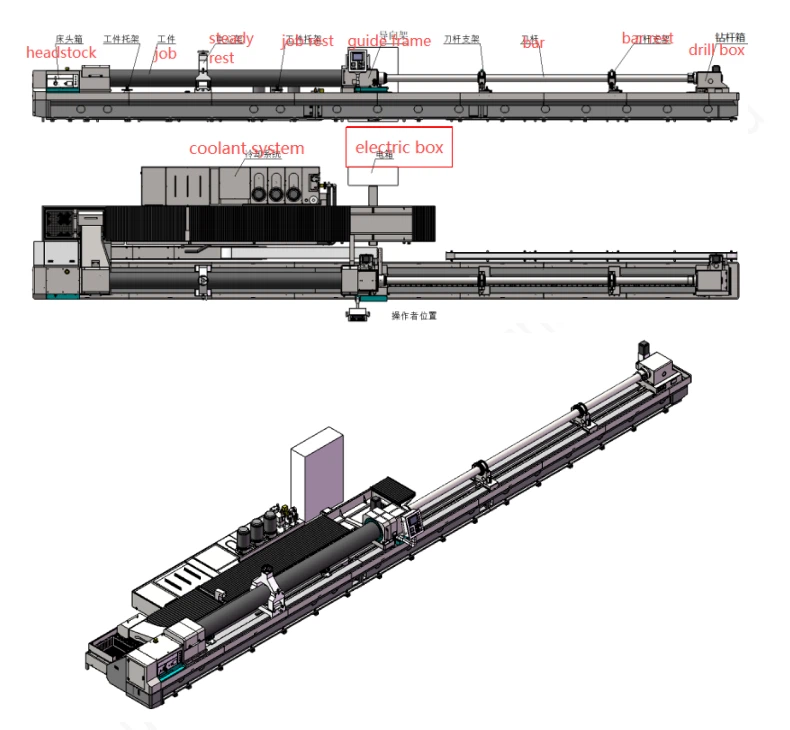

1. Machine main components:machine bed, headstock, workpiece support rest , guide frame, boring bar support rest, drill box, slide rail, rack and pinion,coolant system, control system, electric box.

2. Workpiece clamping method:

The manual three-jaw chuck on the headstock clamps one end of the work piece, the cone on the guide frame automatically pushes the other end of the work piece.

3.Machine system:

Control system: PLC

Z-axis: Longitudinal feed motion of the drill pipe box, with a servo motor driving the rack and pinion mechanism through a reduction gear.

X-axis: Servo clamping of the workpiece by the guide frame, with a servo motor driving the rack and pinion mechanism through a reduction gear.

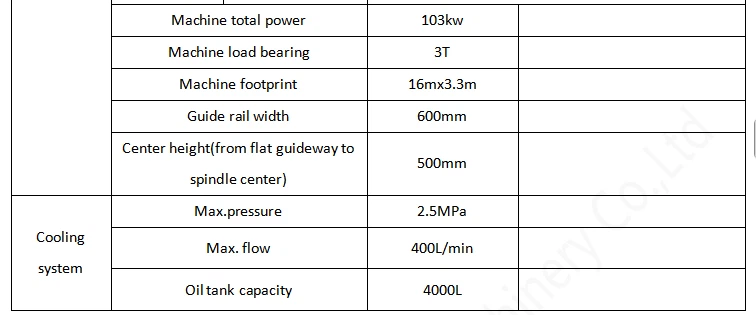

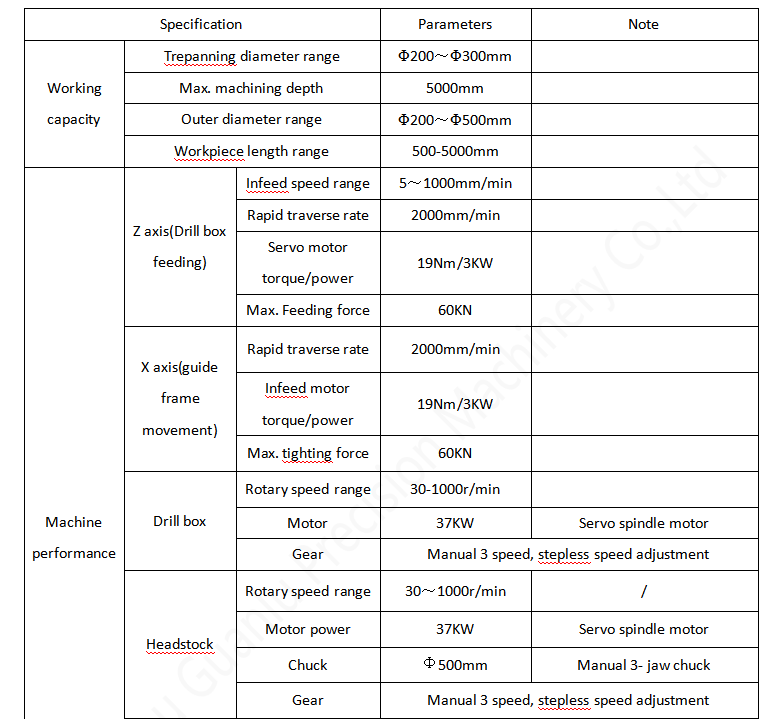

4. Machine main parameters:

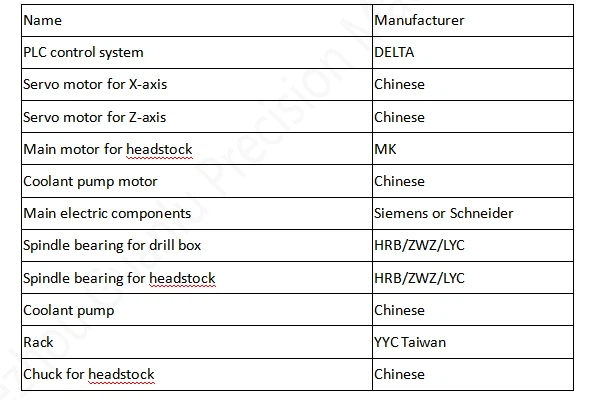

5. Machine Main Components Manufacturer List:

6.Machine accuracy:

Hole accuracy: IT9-10

Surface roughness: Ra6.3-12.5um

Hole centerline deviation: 0.4 mm/1000 mm
