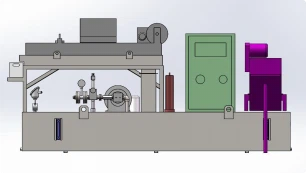

Deep Hole Gundrilling Machine ZSK2103x1000

1. Machine brief:

1.1 Processing Capacity :

Drill diameter range: Φ3~Φ30mm

Max. Drill depth :1000mm

Max. Hole length-diameter ratio : 100:1

Workpiece OD range: Φ15~Φ100mm

1.2 Gun drill drilling mode, single spindle structure, suitable for the machining of coaxial holes on shaft parts;

1.3 Relative rotation of tool and workpiece during machining, with tool feed. For the machining of same-axis holes in shaft-type parts.

1.4 Workpiece clamping

One end of the workpiece is clamped with a three-jaw self-centering chuck, and the other end is positioned by a cone disc.

The hydraulic system controls the axial movement of the headstock spindle.

1.5 The machine adopts linear guide rail .

1.6 CNC system : FANUC

1.7 Drill box:

Adopt the servo main motor driving the spindle to rotate through synchronous belt and synchronous belt wheel, speed stepless could be realized , The max. speed of main spindle is 5000r/min; the spindle drive is front-loaded, which is good for the protection of the main motor and convenient for tool change.

1.8 Headstock:

Drive the workpiece rotation, the speed is constant 117r/min; the spindle can move axially under the control of the hydraulic system, used for tightening or loosening the workpiece. The spindle drive is front-mounted, which is convenient for loading and unloading workpieces and helps to protect the main motor.

1.9 Cutting tool feeding system:

Adopting the structure of servo motor driving ball screw, the tool feed can realize stepless speed regulation.

1.10 Drill bar support rest : 2sets , Support drill bar .

1.11 Coolant system :

It mainly consists of high-pressure pump group, chain plate chip conveyor, oil cooler, filtering device and so on. On the operation station of the numerical control system, a cooling system flow adjustment panel is assembled.

1.12 The basic parts such as bed body and box body are casted with resin sand and treated with two aging treatments. The inclined design of the oil return groove of the bed will not store oil.

1.13 Guide frame

is used for tool guiding, chip removal, and support of tool bar. The front end is assembled with a guide sleeve for tool guiding; the rear end is assembled with a tool bar support sleeve for supporting the tool bar.

1.14 Protection: Full protection.

2. Machine main technical parameters :

3. Machine main configurations :

Standard parts

Chain plate chip conveyor, automatic paper-walking paper belt filter, oil cooler, tool oil supply pump set, numerical control system and its servo feed motor, servo main motor for drilling rod box, T-slot table, linear guide, hydraulic station, drilling rod bracket, two sets of workpiece pallets, constant-speed headstock, and a set of instruction manuals.

Option ：Manual walking paper belt filter, magnetic chip conveyor, other CNC systems, auxiliary tools, cutting tools, cutting oil, automatic oil dumping machine.

7.Randomized technical information

8.Machine tool manufacturing and inspection standards

9. Working conditions of the machine

9.1 Power source: three-phase five-wire power supply, 380V ± 5%, 50Hz ± 1Hz.

9.2 Working environment temperature: 0 ℃ ~ 40 ℃. (non-icing)

9.3 Ambient humidity below 80% (no condensation)

9.4 Altitude: 0～2000m

9.5 Required conditions of the installation place:

Should be avoided by external vibration; should be avoided by corrosive gases or liquids; should avoid direct sunlight on the surface of the machine tool; should be away from direct strong cold wind or hot air and other air sources; should minimize dust (metal dust, sand, etc.) pollution.

10. machine tool installation and commissioning conditions (user preparation)

10.1 Incoming power supply: three-phase five-wire power supply, 380V ± 5%, 50Hz ± 1Hz, the user to provide workshop power to the electrical cabinet cable

10.2 Cleaning oil and utensils: provide 20 liters of gasoline or kerosene, cotton cloth a number of

10.3 Cutting oil: deep hole extreme pressure cutting oil, kinematic viscosity 40℃: 12-16mm²/s, extreme pressure agent content ≥15%, flash point ℃ ≥160,

dosage of about 1000 liters.

10.4 Users to prepare lifting spreader and tools for lifting

10.5 Cutting tools, auxiliary tools and fixtures for machine tool test run (if not ordered by the user).

10.6 Hydraulic station: ISO-L-HM46 anti-wear hydraulic oil, 60 liters

10.7 Lubrication station: ISO-L-HM32, 10 liters

11. Machine tool installation and commissioning

11.1 Party B is responsible for providing the appearance drawing of the machine tool.

11.2 After the machine tool arrives at the destination, Party A is responsible for lifting, unloading and storing the product (to avoid loss and rain erosion, etc.).

11.3 Party B receives Party A's notification of installation and commissioning, and arranges the personnel to carry out the installation and adjustment of the machine tool. After Party B arranges the personnel to set the machine tool in position and pre-adjust the level, it will enter the process of installation and commissioning.

11.4 The machine tool installation and commissioning work by Party B to send mechanical, electrical, testing and other aspects of the professional staff to the site of Party A to carry out. Party A shall send relevant personnel to assist in the installation and commissioning work and provide the necessary working conditions.

11.5 Party A needs to prepare the power supply, lifting equipment, auxiliary materials, oil and the necessary tools and gauges in the process of installation and commissioning.

12. Acceptance of machine tools

Acceptance of machine tools is divided into two stages: pre-acceptance, final acceptance, pre-acceptance in Party B's factory, final acceptance in Party A's use of the site.

12.1 After the machine tool is assembled and commissioned at Party B's assembly site, Party B will notify Party A, and Party A should send relevant personnel to Party B's assembly site in time to carry out the pre-acceptance work and process one test piece, and the pre-acceptance standard will be according to the content of the technical program or technical agreement signed between Party A and Party B for acceptance.

If Party A can not provide test pieces, cutting tools, auxiliary tools, then use Party B's standard test pieces, cutting tools, auxiliary tools for pre-acceptance trial processing.

Pre-acceptance is completed, the two sides signed the pre-acceptance minutes.

12.2 Final acceptance of the machine tool refers to the final acceptance of the machine tool after the installation and commissioning of Party A's use of the site. Processing test pieces of 8 pieces, test pieces, cutting tools, auxiliary equipment provided by Party A, the final acceptance criteria in accordance with the A and B signed by the technical program or technical agreement content acceptance; to meet the requirements of the final acceptance is deemed to be qualified, and signed by both parties to the final acceptance of the single. The warranty period of the machine tool will be calculated from the date of signing

the final acceptance form by both parties. If there are any outstanding issues during the final acceptance process, they can be written into the final acceptance memorandum and dealt with by both parties through consultation.

12.3 Only the machine tools signed the final acceptance form, Party A enjoys the right to use, Party B provides warranty, technical support and other follow-up services.

13. After-sales service

13.1 Training

Party B will train Party A's programmers, operators and maintenance personnel for a period of 3 working days, during the training period, Party B is responsible for instructing Party A's relevant technical and operational personnel to carry out trial production for typical parts.

13.2 Party B strictly abide by Party B's commitment to after-sales service.
