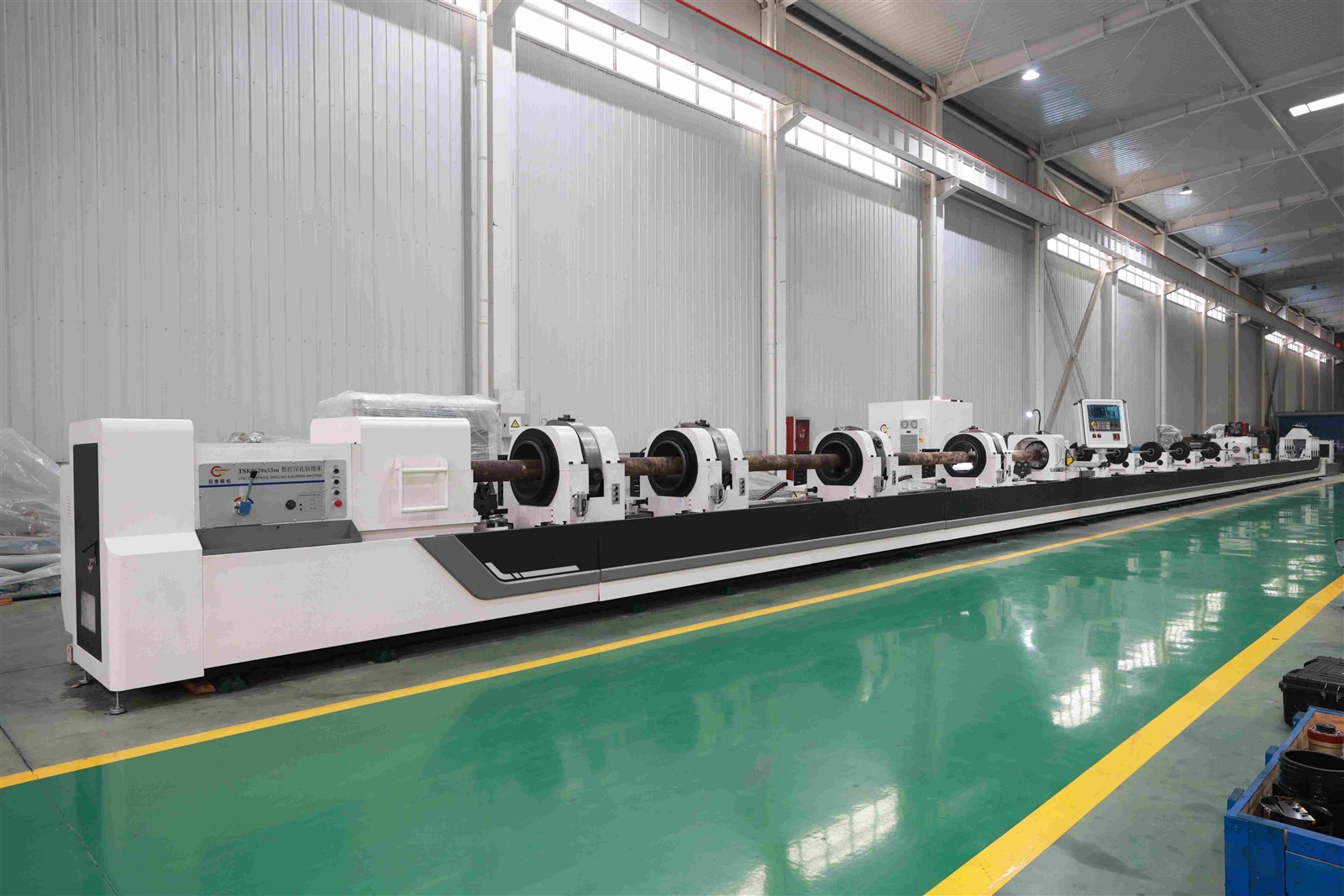

Deep Hole Drill Machine For Drill Collars

🔥 Deep Hole Drill Machine for Drill Collars – Built for the Long Run

Need a deep hole drill that runs 24/7 without complaining?
This one doesn't sleep. Designed specifically for drill collars and other heavy cylindrical workpieces, it delivers reliability where it matters most.

---

✅ What It Can Handle

Parameter	Range
Drilling diameter	Φ 30 – Φ 150 mm
Boring diameter	Φ 40 – Φ 500 mm
Max depth	12 meters
Max workpiece length	12 meters

Every machine in this series uses NSK Japan bearings – spindle and all shafts. That means micron-level stability over long runs.

---

🧠 Control & Drives – All FANUC, No Shortcuts

FANUC CNC system

FANUC servo motors

Main motor + driver: 100% FANUC

No mixing and matching. Just solid, repeatable performance you can count on.

---

❄️ Built for Continuous Operation

Two dedicated oil chillers come standard:

One for the headstock

One for the drill rod box

Plus a high-capacity oil chiller that supports 24-hour nonstop running.

---

📄 Documentation Included

We supply:

Foundation drawings

Machine layout

Cutting oil and lubricating oil specifications

No guesswork on your end.

---

⚙️ Two Machining Modes – One Machine

Mode	Workpiece	Cutter	Feed
①	Rotates	Does not rotate	Tool feeds
②	Rotates	Rotates	Tool feeds

You get full flexibility for drill collars and other deep-hole jobs. No need for a second machine.

---

Why People Choose This Machine

12-meter depth – true deep-hole capability

NSK bearings throughout – Japan quality, no exceptions

FANUC from end to end – proven uptime in the field

Dual oil chillers – stable temperatures, stable tolerances

Two modes in one – better return on investment

If you're looking for a reliable deep hole drill machine for drill collars, this is the one.

---

🔧 What This Machine Does Best (Plain English)

This machine was built for deep-hole work on cylindrical and square workpieces.
The bed is rigid – really rigid – so it holds accuracy over years of use.
It handles large parts without breaking a sweat.
The spindle covers a wide speed range, so you can run different deep-hole processes.
The feed system uses AC servo motors – smooth, accurate, and efficient.
The oil dispenser uses servo control to tighten the workpiece. No guessing, no slipping.

---

1.3.1 Main Components – No Fluff List

Bed body

Headstock

Oil pressure head

Tool bar bracket

Sliding guide rails

Ball screw transmission

Cooling system

CNC control system

Electric box

Center frame

Simple. Solid. Serviceable.

---

1.3.2 Clamping the Workpiece – Holds Like a Rock

One end goes into the chuck on the headstock.
The other end gets clamped by the cone disc on the oil pressure head.

That's two ends secured. Zero vibration. True concentricity.

📸 Clamping diagram available – ask for it.

---

1.3.3 Control System – FANUC, Plain and Simple

X‑axis – Tool expand and retract
Servo motor → servo reducer → ball screw → core rod moves axially

Z‑axis – Drill box moves forward and back
Servo motor drives ball screw directly

W‑axis – Oil pressure head servo clamping
Servo motor drives ball screw for precise tightening
