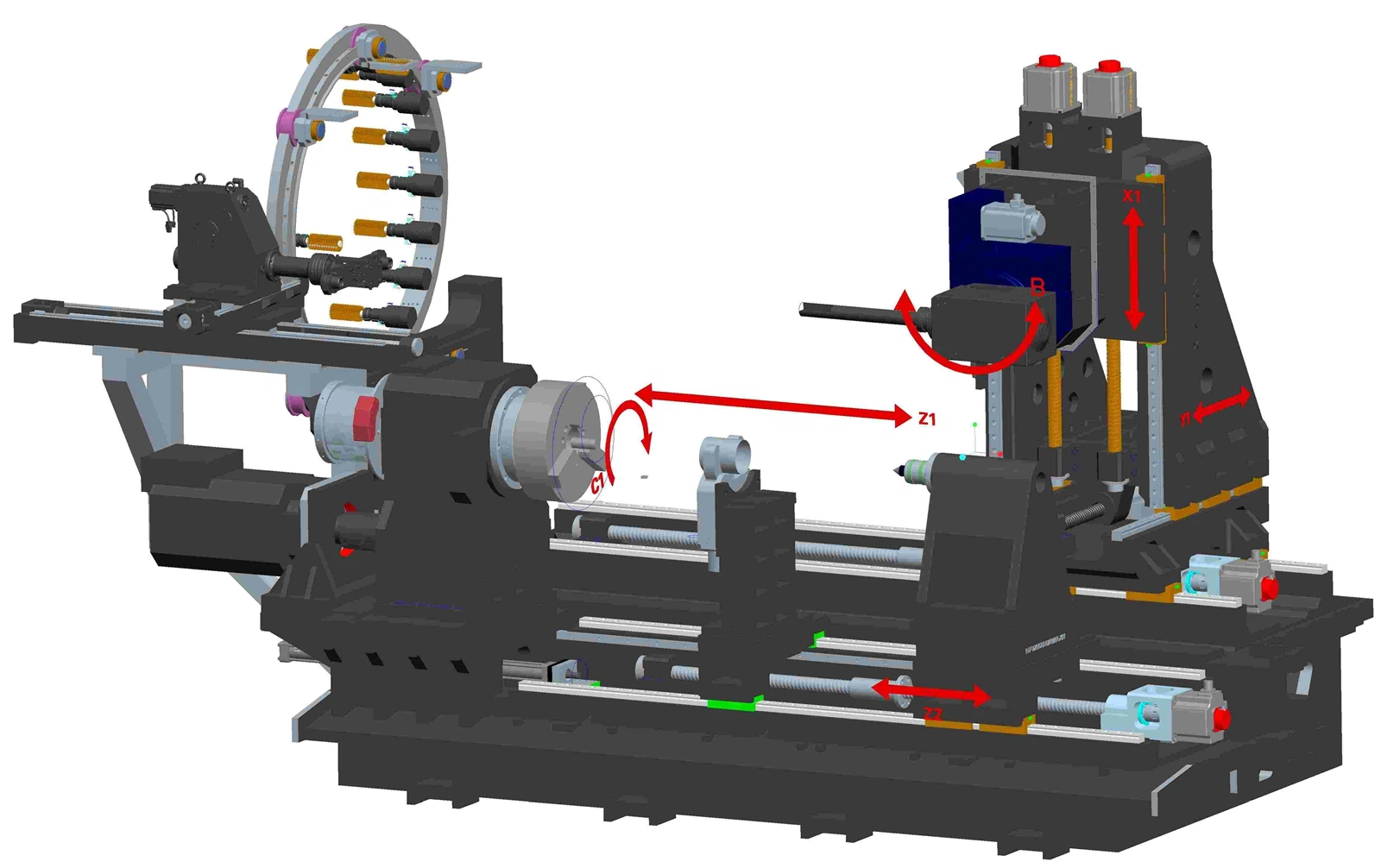

Horizontal CNC Turning Compound Center GL-3000/BTMCY

CNC system

MITSUBISHI

M800

MITSUBISHI

The MITSUBISHI system

Scope of Work

Max processing dia

mm

Φ1000

Max workpiece weight

kg

2500-3500

Max processing length

3000

X axis travel

mm

900

Z axis travel

mm

3000

Y axis travel

mm

±300(600)

B axis travel (tool spindle rocking rotation axis)

mm

+120º-120º

C-axis range

mm

0º-360º

Z2 axis travel

mm

2800

Feed (standard)

X1-2 axis cutting feed rate

m/min

30

Z axis cutting feed rate

m/min

30

Y axis cutting feed rate

m/min

30

B axis cutting feed rate

m/min

30

C axis cutting feed rate

m/min

30

Z2 (W)Cutting feed rate

m/min

30

X1-2/Z/B /Z2 (Y1)

Fast move X1-2/Z/B /Z2 (Y1)

m/min

30(10)

Accuracy (standard configuration)

X/Y/Z pos accuracy

mm

0.022/0.012/0.005全行程

0.008 Full trip

X1/Z1/B/Z2

X/Y/Z Repos accuracy

mm

0.008全行程

0.008 Full trip

B/C-axis pos accuracy

mm

14″-36″

Tool milling spindle face runout

mm

≥0.002

Turning spindle face runout

mm

≥0.003

Grating scale

X 1-2 axis optical scales

(MITUTOYO/NIDEC)

Standard configuration

Z axis optical scales

(MITUTOYO/NIDEC)

Standard configuration

Y axis optical scales

(MITUTOYO/NIDEC)

Standard configuration

B axis optical scales

(NIDEC)

Standard configuration

Milling tool spindle

Spindle form

HSK-T63

Standard configuration

Spindle power

Kw

54

Maximum speed of tool milling spindle

Rpm

50-10000

Maximum output torque

N/m

265

Spindle continuous output torque 100%

N/m

300

Spindle continuous output torque 40%

N/m

180

Milling spindle 90º / continuous indexing time

S

0.5

Tool spindle oil cooling system

Kw

1500

Turning spindle (Standard configuration)

A2-6

Maximum power

Kw

62-83

Chuck form

in

8

Maximum speed

rpm

50-1600

Spindle maximum bar through hole

Φ

Φ65

C axis continuous indexing

分度范围/Mm

Graduation range/mm

0.001

Taelstock sleeve

Deune

C axis indexing

Tool spindle cooling air conditioning

Oil cooler

2500

Tool magazine change system

Standard configuration

Tool magazine type

Type

HSK-63

Number of tools (Standard configuration)

Hollow large disc tool magazine

40T

Max tool weight

Kg

16

Maximum tool diameter

mm

80

Tool change time

sec

5.0

Tool magazine servo motor output torque

N/M

14.1

Maximum tool space available: (empty tool position/occupied tool)

Mm

Φ120/Φ80

Central lubrication system

Pump type

Decompression type

Motor

AC110/220V 2P 100W

Shielded stage AC110/220V 2P 100W

Electric current

A

2

Capacity

L

2

Control mode

Pressure alarm

PLC

Oil filling interval time

Min

30

Saturation time

Sec

3

Pressure detection

40bar ON / 45bar OFF

Liquid level switch

0.2L ON

Distributor type

Positive displacement

Dispenser throughput

cc

0.3

Cutting cooling system

High pressure cooling pump

Bar

50

External cooling pump

W

400 x 2

Cutting fluid cooling system

W

1500

Coolant split cooling box

New addition

500L

External cleaning and cooling pump

W

400x2

Water tank capacity

L

2500

Moving axis motor

Rated power of X1-2 axis servo motor

Kw

Standard 3

Rated power of Z1 axis servo motor

Kw

Standard 9

Rated power of Y1 axis servo motor

Kw

Standard 5

Rated power of Z2 axis servo motor

Kw

Standard 7

Rated power of B-axis servo motor

Kw

Standard 4.5

System parameter

MITSUBISHI

M800

Minimum moving unit

0.001mm

Standard configuration

Control Axis 2 System Contro5+6 Axis 4

Linkage

Standard configuration

standard language

Chinese, English, Russia

Standard configuration

Memory capacity

128Kbyte

Standard configuration

Mechanical parameters (standard configuration)

X1-2 axis rail size (roller)

mm

55

Z axis track size (roller)

mm

55

Y axis track size (roller)

mm

55

Z2 axis track size (roller)

mm

55

B axis (rotation axis)

Cam transmission mechanism

Servo drive+hydraulic brake

X1 axis ball screw size

Φ50mm

Pitch 12mm

Z axis ball screw size

Φ65mm

Pitch 16mm

Y1 axis ball screw size

Φ50mm

Pitch 10mm

Z2 axis ball screw size

Φ55mm

Pitch 12mm

Pneumatic components

Solenoid valve

SMC

Hydraulic station

Taiwan 7ODC

Oil water separator

SMC

Pneumatic triplet

SMC

Spindle oil cooler

Cooling capacity

8000k

Mechanical dimensions

Mechanical length x width x height (including water tank)

)

mm

According to the exterior drawings of each model

Mechanical weight

kg

32000

GL-3000/BTMCY

Horizontal CNC Turning Compound Center GL-3000/BTMCY

Multi axis CNC machine tool (basic)

Name

Number

Remarks

* MITSUBISHI

1

Standard configuration

MITSUBISHI

*Automatic update function

1

Standard configuration

MITSUBISHI

*High precision machining function

1

Standard configuration

MITSUBISHI

*Coordinate system selection (200 sets)

1

Standard configuration

MITSUBISHI

*C-axis synchronous cutting

1

Standard configuration

MITSUBIHI

*Spindle synchronization

1

Standard configuration

MITSUBISHI

*C-axis positioning

1

Standard configuration

MITSUBISHI

*Graphic expansion/reduction

1

Standard configuration

MITSUBISHI

*Automatic power interruption function

1

Standard configuration

MITSUBISHI

*represents the language of Chinese

1

Standard configuration

MITSUBISHI

*Milling tool spindle form: HSK-T63

1

Standard configuration

CHINA

*Tool spindle speed: 10000 rpm

Power and torque characteristics 50kw

1

Standard configuration

CHINA

*Turning spindle form: A2-6/1350rpm (45kw)

1

Standard configuration

CHINA

*Turning spindle chuck size: spindle chuck 8 inches

1

Standard configuration

CHANDOX

*spindle Maximum bar passing capacity: spindle Φ65mm

1

Standard configuration

CHINA

*Taelstock

1

Standard configuration

CHINA

*High pressure pump 50bar

1

Standard configuration

CHINA

*Electrical cabinet air conditioner 1000W

1

Standard configuration

 OEM

*Fully automatic chip removal machine+trolley

1

Standard configuration

OEM

*X1/2 axis movement: 900mm

1

Standard configuration

GL

*Z axis movement: 3000mm

1

Standard configuration

GL

*Y axis movement: ± 300mm (600mm)

1

Standard configuration

GL

*B axis：+120mm -120mm(240mm)

B-axis movement:+120mm -120mm

1

Standard configuration

GL

*Pressure alarm and centralized lubrication automatic oil supply device

1

Standard configuration

HANSUNG, South Korea

*Internal water tank device: floor mounted

1

Standard configuration

GL OEM

*X1-2/Z/Y/B axis grating ruler

1

Standard configuration

MITUTOYO/ HEIDENHAIN /NIDEC

*Large disc hollow servo tool magazine 40T (excluding tools)

1

Standard configuration

Chinese Taiwan OEM

*Center frame 30mm-245mm / 135-460

1

Standard configuration

Chinese OEM

*High pressure water pump

1

Standard configuration

Chinese OEM
