Three Coordinate Quartz Glass Drilling Machine

Three coordinate quartz glass drilling machine

1. Three coordinate quartz glass drilling machine is used to drill the coordinate holes on quartz glass or expand the holes on quartz glass ,it has chamfering function as well .



This machine is a three-axis, high-efficiency, high-precision, and highly automated quartz glass deep hole drilling machine. The tool rotates and performs the feed motion, enabling the required machining accuracy and surface roughness to be achieved through a single continuous drilling operation. It is controlled by a digital control system (CNC), offering convenient operation and enhanced safety. The machine also features an automatic cycle function. Therefore, it is suitable for small batch processing and particularly well-suited for high-volume production requirements. It can drill through holes, blind holes, as well as stepped holes.



2. Three coordinate quartz glass drilling machine Overview:

Drilling Range: Φ5–Φ110 mm
Max. Drilling Depth: 1700 mm
Max. Drilling Length-to-Diameter Ratio: 80:1



Working table of Three coordinate quartz glass drilling machine: Movable in vertical (Y-axis) and transverse (X-axis) directions; CNC-controlled; standard configuration with fixed T-slot worktable.



X-Axis: Controls transverse movement of worktable; ball-type linear guideway; servo motor drives ball screw for X-direction movement; CNC-controlled.



Y-Axis: Controls vertical movement of worktable; roller-type heavy-duty linear guideway; servo motor drives ball screw via servo gearbox for Y-direction movement; CNC-controlled; servo motor equipped with brake.



Z-Axis: Controls tool feed movement; rolling linear guideway; servo motor drives ball screw via coupling for Z-direction movement; CNC-controlled; tool feed rate is infinitely adjustable.



Drill Spindle Unit of Three coordinate quartz glass drilling machine:

Drives tool rotation; spindle is driven by servo main motor, synchronous belt, and synchronous pulley, offering infinitely adjustable speed; main motor power 7.5 kW; max. spindle speed 5000 r/min; the rear end of the drill spindle unit spindle is equipped with a DEUBLIN rotary joint (USA).



Guide Support: Provides tool guidance, chip evacuation, and tool shank support; axially movable under pneumatic system control for clamping and releasing the workpiece.



Cooling System: Supplies oil to the tool and evacuates chips; mainly composed of oil tank, filtration unit, pump set, liquid level controller, and oil cooler.



Drill Shank Support: 2 sets, used to support the tool shank.



Base, Worktable, Column, Lifting Slide, Housing, and Other Structural Components: Made of resin sand castings and subjected to two-stage aging treatment.



CNC System of Three coordinate quartz glass drilling machine: SIEMENS

Equipped with an electronic handwheel and an independent movable control handwheel.

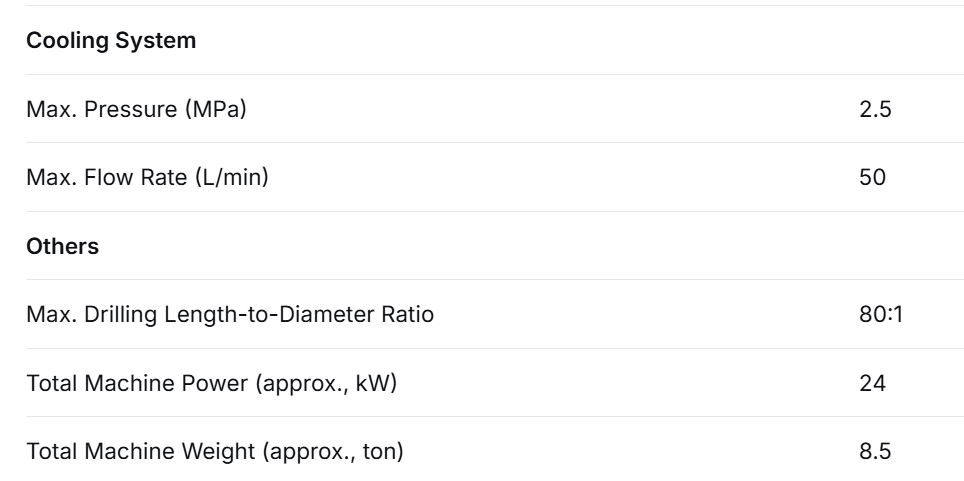

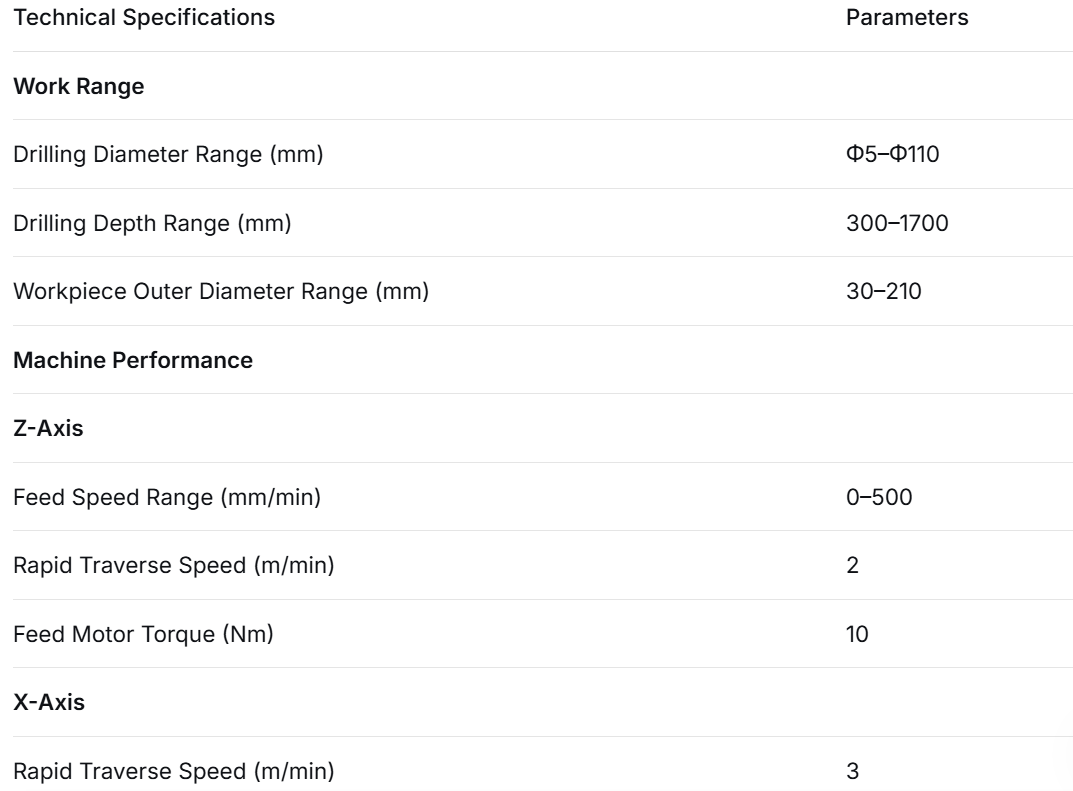

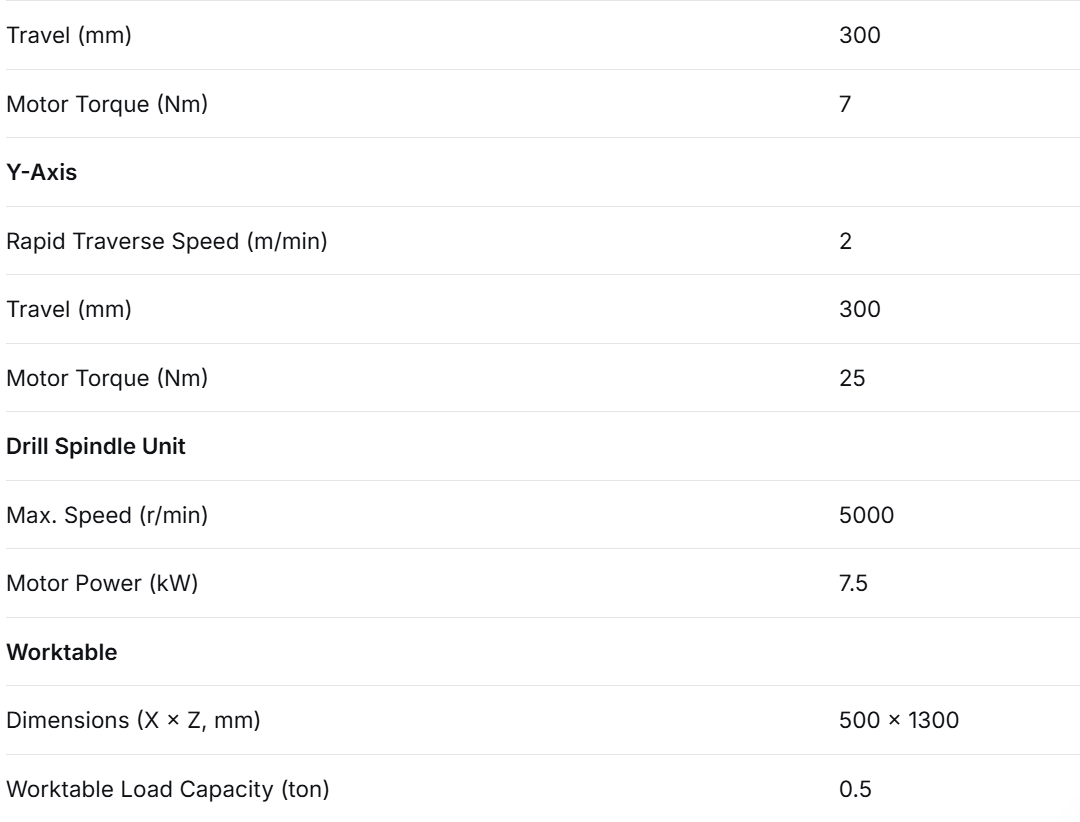

Main Parameters of Three coordinate quartz glass drilling machine：

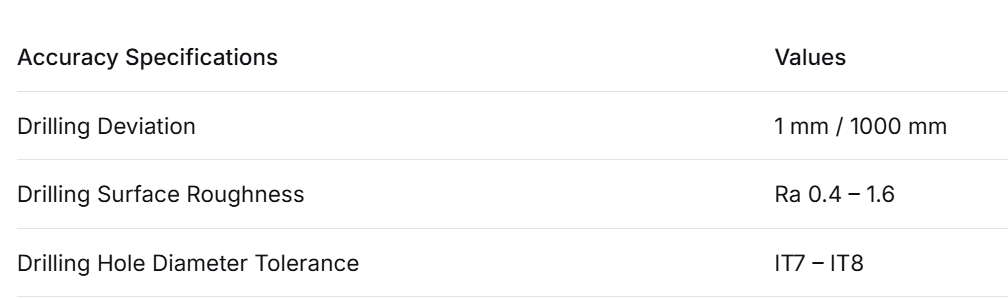

3. Machining accuracy of Three coordinate quartz glass drilling machine :

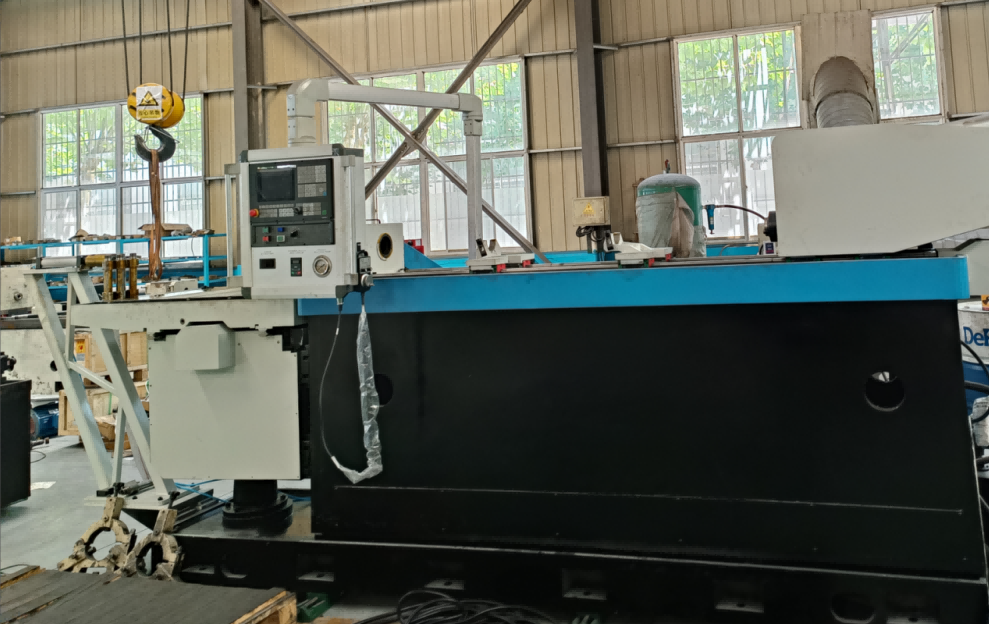

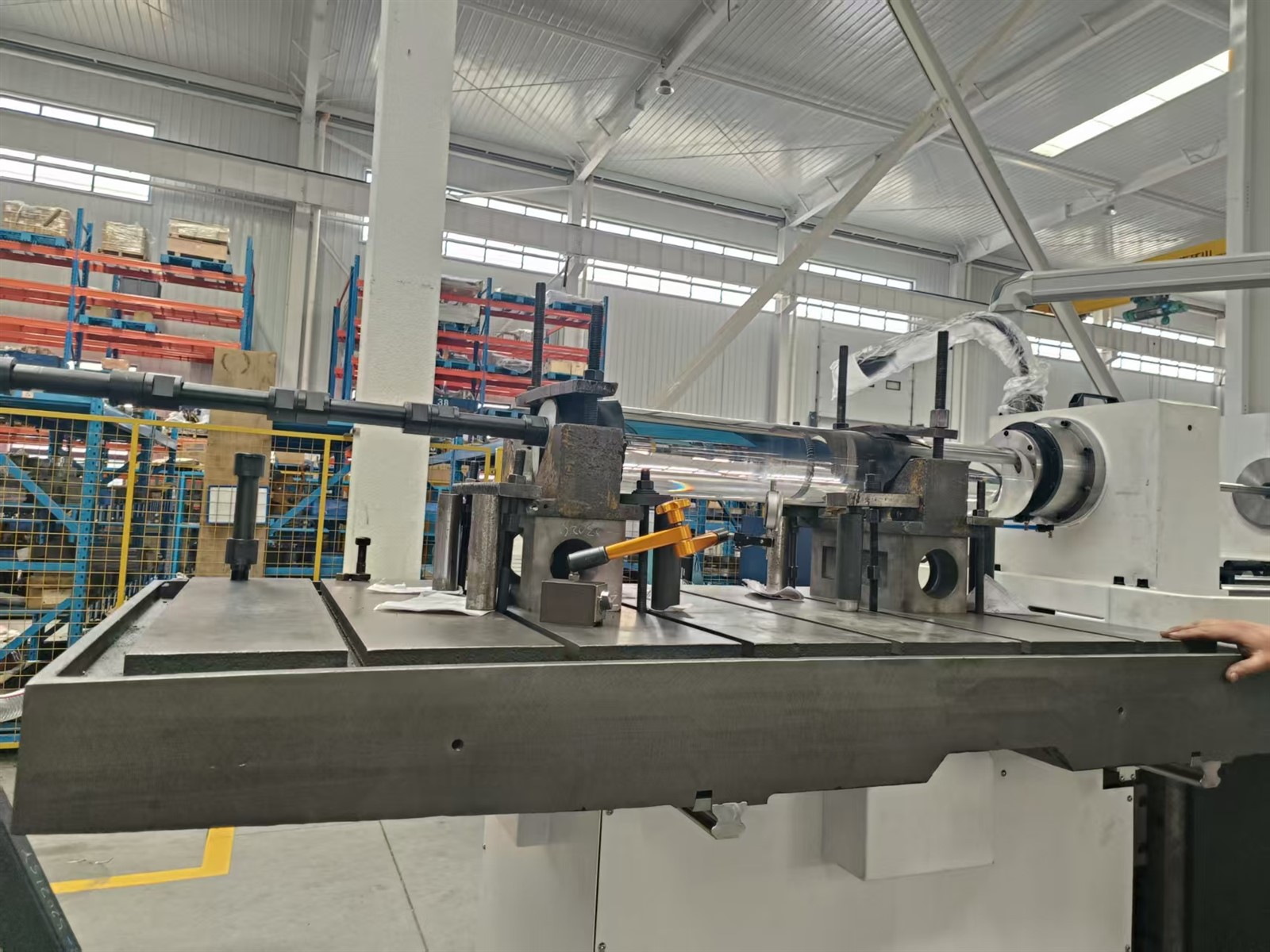

4. Photo of Three coordinate quartz glass drilling machine :
